Fold

Color: grey
Size
Products for this combination
PRF0180820

Fold

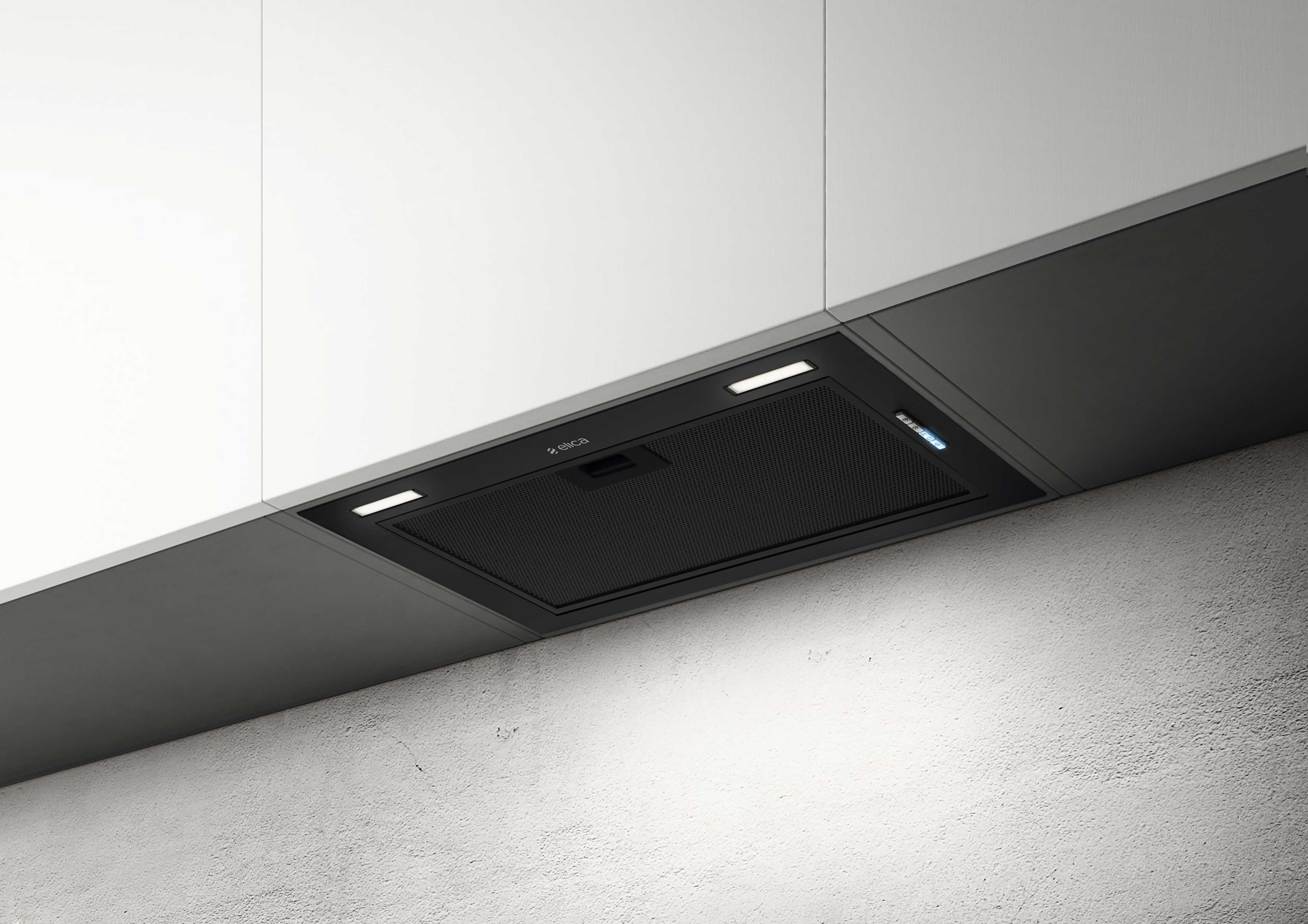

Cooker Hoods Built-in without cabinet base Fold grey 80 detail
Cooker Hoods Built-in without cabinet base Fold gallery 0

Plus

Total Cabinet Integration

A design that adapts to the layout of your kitchen. The wide range of solutions and finishes ensures a seamless fit, no matter what type of wall cabinet you have.
Super Easy Installation

Super Easy Installation

Installation in just a few simple steps, thanks to the patented S.E.I. system. For perfect alignment and complete integrity of the mounting surface.
Black Matt

Black Matt

Matt black finish defines a minimal and contemporary style, while eliminating reflections and simplifying cleaning.

Technical Specifications

Tech sheet Tech sheet

Weight (Kg)
6.5
Finishing
Grey
Dimensions (cm)
80
Energy Class
B
Minimum distance from wall unit induction/radiant hob
45cm
Minimum distance from wall unit gas hob
65cm
Duct Transition
150mm
Lighting
Led 2x2,1 W - 3500 K - 221 LUX
Absorption
180W

Airflow Min-Max
225m³/h - 580m³/h
Noise level Min-Max
46db(A) - 65db(A)
Controls
3S Soft light push button
Cooker Hoods Built-in without cabinet base Fold grey 80 tech sheet Cooker Hoods Built-in without cabinet base Fold grey 80 tech sheet

Downloads

FOLD GR/A/72
PRF0180820
Go to Downloads
Compare models
Fold
Boxin No Drip 2.0
Boxin
Color grey black Stainless steel black Stainless steel black
Weight (Kg) 5.8
6.5
6.8
 Duct-out: 8.75
Duct-out: 11.2
10.4
12.55
Duct-out: 14.9
14.8
 LX: 8.7
LX: 10.25
LX: 12.6
LX: 8.9
LX: 10.5
STD: 12.6
LX: 9.5
Finishing Grey
Black
 Duct-out: Black Matte
Stainless Steel
 LX: Stainless Steel
STD: Stainless Steel
Dimensions (cm) 60
80
 Duct-out: 60
Duct-out: 90
60
90
Duct-out: 120
120
 LX: 60
LX: 90
LX: 120
STD: 120
LX: 75
Energy Class B A A
Minimum distance from wall unit induction/radiant hob 45cm 50cm 50cm
Minimum distance from wall unit gas hob 65cm 62cm 50cm
Duct Transition 150mm 150mm 150mm
Lighting Led 2x2,1 W - 3500 K - 221 LUX Duct-out: Strip Led 1x7 W - 3500 K - 421 LUX
Strip Led 1x7 W - 3500 K - 421 LUX
Duct-out: Strip Led 1x7 W - 3500 K - 365 LUX
 Led 2x2,5 W - 3500 K - 381 LUX
Absorption 180W Duct-out: 286W
Duct-out: 307W
286W
307W
Duct-out: 325W
325W
 255W
Airflow Min-Max 225m³/h - 580m³/h Duct-out: 140m³/h - 700m³/h
140m³/h - 680m³/h
140m³/h - 700m³/h
 LX: 255m³/h - 620m³/h
STD: 255m³/h - 620m³/h
LX: 245m³/h - 620m³/h
Noise level Min-Max 46db(A) - 65db(A) 36db(A) - 66db(A) LX: 50db(A) - 70db(A)
STD: 50db(A) - 70db(A)
LX: 48db(A) - 69db(A)
Controls 3S Soft light push button 3S+B Electronic push button 3S Mechanical rotative
