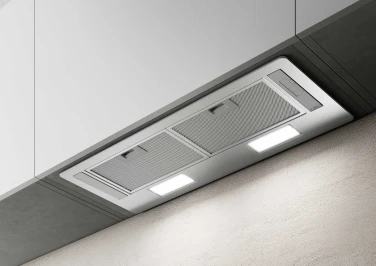

Era C
Elica Design Center
Color: white
Size
Products for this combination
PRF0142716
Era C
Elica Design Center
Easy to Maintain
The perfect product with easy maintenance.
Proper maintenance and maximum hygiene, ensure a longer lifespan of the appliance. Our models have been conceived to make the replacement of grease filters and odour filters easier: all are removable, washable and replaceable.
Technical Specifications
Weight (Kg)
4,8
Finishing
White

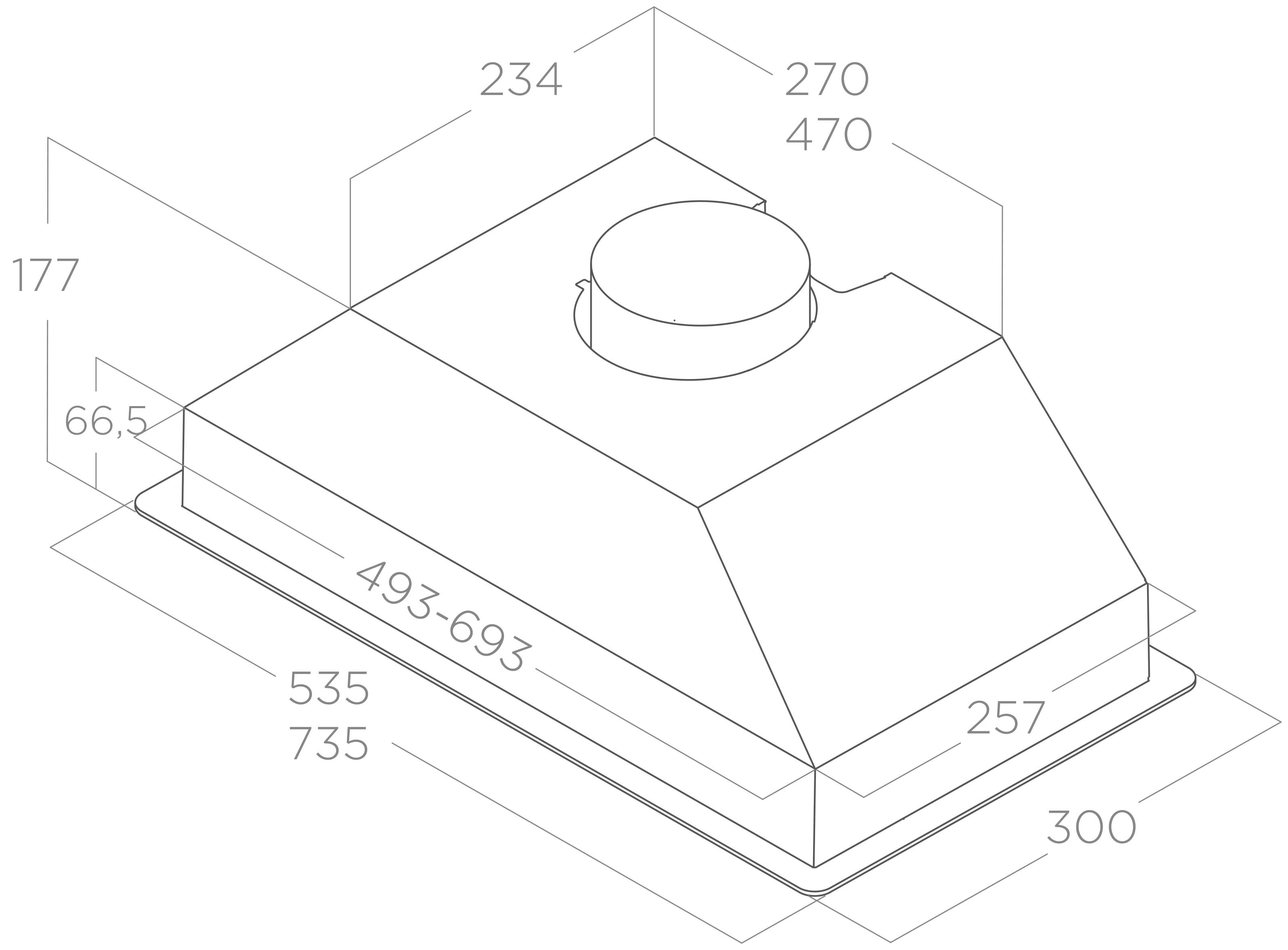

Dimensions (cm)
60
Energy Class
D
Minimum distance from wall unit induction/radiant hob
45cm
Minimum distance from wall unit gas hob
65cm
Duct Transition
120mm
Lighting
Led 2x3 W - 2700 K - 73 LUX
Absorption
146W
Airflow Min-Max
350-450m³/h
Noise level Min-Max
62db(A) - 67db(A)
Controls
3S Mechanical push button
Downloads
|
Compare models
|
|
|
|
|---|---|---|---|
| Color |
|
|
|
| Weight (Kg) |
4,8 4,65 5,65 5,5 |
6,8 8,4 5,5 8,6 9 6 5 7,2 8,2 |
9,6 11,5 14,3 |
| Finishing |
White Stainless Steel Black |
Stainless Steel + Grey Grey + Black Glass Grey + White Glass White |
Stainless Steel |
| Dimensions (cm) |
60 80 |
60 90 |
60 90 120 |
| Energy Class | D |
D |
A+ |
| Minimum distance from wall unit induction/radiant hob | 45cm |
50cm |
43cm |
| Minimum distance from wall unit gas hob | 65cm |
65cm |
57cm |
| Duct Transition | 120mm |
120mm 125mm |
150mm |
| Lighting | Led 2x3 W - 2700 K - 73 LUX | Led 2x3 W - 2700 K - 73 LUX |
Strip Led 1x7 W - 3000 K - 3500 K - 4000 K - 421 LUX Strip Led 1x7 W - 3000 K - 3500 K - 4000 K - 365 LUX Strip Led 1x7 W - 3000 K - 3500 K - 4000 K - 309 LUX |
| Absorption | 146W |
121W 6W |
177W |
| Airflow Min-Max | 350-450m³/h |
300-500m³/h |
300-800m³/h |
| Noise level Min-Max | 62db(A) - 67db(A) |
46db(A) - 62db(A) |
45db(A) - 58db(A) |
| Controls | 3S Mechanical push button | 3S Mechanical push button | 3S+B Electronic push button |
