Era S
Elica Design Center
Color: black
Size
Products for this combination
PRF0197686
Era S
Elica Design Center
Easy to Maintain
The perfect product with easy maintenance.
Proper maintenance and maximum hygiene, ensure a longer lifespan of the appliance. Our models have been conceived to make the replacement of grease filters and odour filters easier: all are removable, washable and replaceable.
Technical Specifications
Weight (Kg)
5,5
Finishing
Black

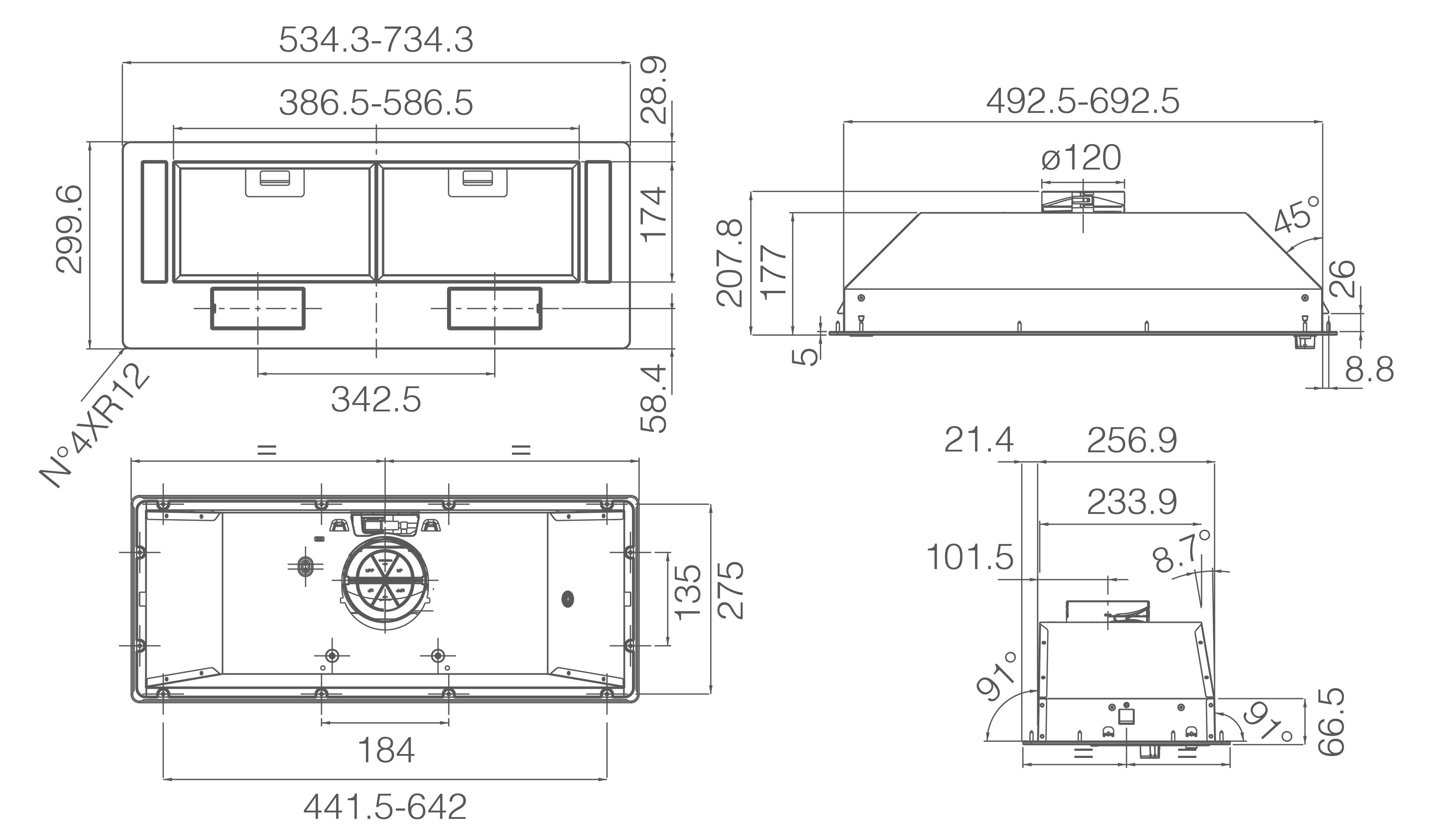

Dimensions (cm)
80
Energy Class
B
Minimum distance from wall unit induction/radiant hob
50cm
Minimum distance from wall unit gas hob
65cm
Duct Transition
120mm
Lighting
Led 2x3 W - 2700 K - 73 LUX
Absorption
121W
Airflow Min-Max
345-520m³/h
Noise level Min-Max
57db(A) - 68db(A)
Controls
3S Mechanical rotative
Downloads
|
Compare models
|
|
|
|
|---|---|---|---|
| Color |
|
|
|
| Weight (Kg) |
5,5 4,8 5,85 |
12,4 10,3 13 |
GRIX: 12,2 GRIX: 11,6 STD: 13,2 STD: 10,5 |
| Finishing |
Stainless Steel Black |
Stainless Steel + Glass | Stainless Steel + Grey |
| Dimensions (cm) |
80 60 |
90 60 120 |
GRIX: 90 GRIX: 60 STD: 90 STD: 60 |
| Energy Class |
B |
B |
GRIX: A STD: C |
| Minimum distance from wall unit induction/radiant hob | 50cm | 50cm | 43cm |
| Minimum distance from wall unit gas hob | 65cm | 50cm | 65cm |
| Duct Transition | 120mm | 150mm | 150mm |
| Lighting | Led 2x3 W - 2700 K - 73 LUX |
Led 2x2,5 W - 3500 K - 145 LUX Led 2x2,5 W - 3500 K - 381 LUX |
GRIX: Led 2x3 W - 2700 K - 49 LUX STD: Led 2x3 W - 2700 K - 54 LUX |
| Absorption | 121W | 255W |
GRIX: 206W STD: 126W |
| Airflow Min-Max | 345-520m³/h | 300-800m³/h |
GRIX: 300-820m³/h STD: 300-550m³/h |
| Noise level Min-Max | 57db(A) - 68db(A) |
46db(A) - 67db(A) 48db(A) - 67db(A) |
GRIX: 46db(A) - 63db(A) STD: 52db(A) - 58db(A) |
| Controls | 3S Mechanical rotative | 3S Mechanical push button |
GRIX: 3S+B Electronic push button STD: 3S Mechanical push button |
