Boxin Advance Plus
Design Fabrizio Crisà
The perimeter extraction system allows this hood to remain concealed without interfering with cabinets. It switches on automatically when it detects smoke; it connects to the hob and the Elica app.
Color: black
Size
Products for this combination
PRF0199290
Boxin Advance Plus
Design Fabrizio Crisà
The perimeter extraction system allows this hood to remain concealed without interfering with cabinets. It switches on automatically when it detects smoke; it connects to the hob and the Elica app.
Hidden away features.
So many benefits packed into one appliance. Its concealed design, flush with your kitchen cabinets, hides a latest generation motor: quiet, powerful, and energy-efficient. Smart sensors monitor the air all day long and activate the hood if they detect vapours, to protect the cabinets along with the side panels and glass front shield. The hood also connects via Bluetooth to the Elica induction hob, automatically adjusting its power setting according to the quantity and quality of the smoke detected. You can also use your smartphone or voice assistant as a remote control.
Plus
Technical Specifications
Weight (Kg)
8,8
Finishing
Black Matte
Dimensions (cm)
60
Energy Class
A
Minimum distance from wall unit induction/radiant hob
43cm
Minimum distance from wall unit gas hob
57cm
Duct Transition
150mm
Lighting
Strip Led 1x7 W - 3500 K - 421 LUX
Absorption
177W
Airflow Min-Max
180m³/h - 640m³/h
Noise level Min-Max
45db(A) - 57db(A)
Controls
3S+B Electronic push button
Downloads

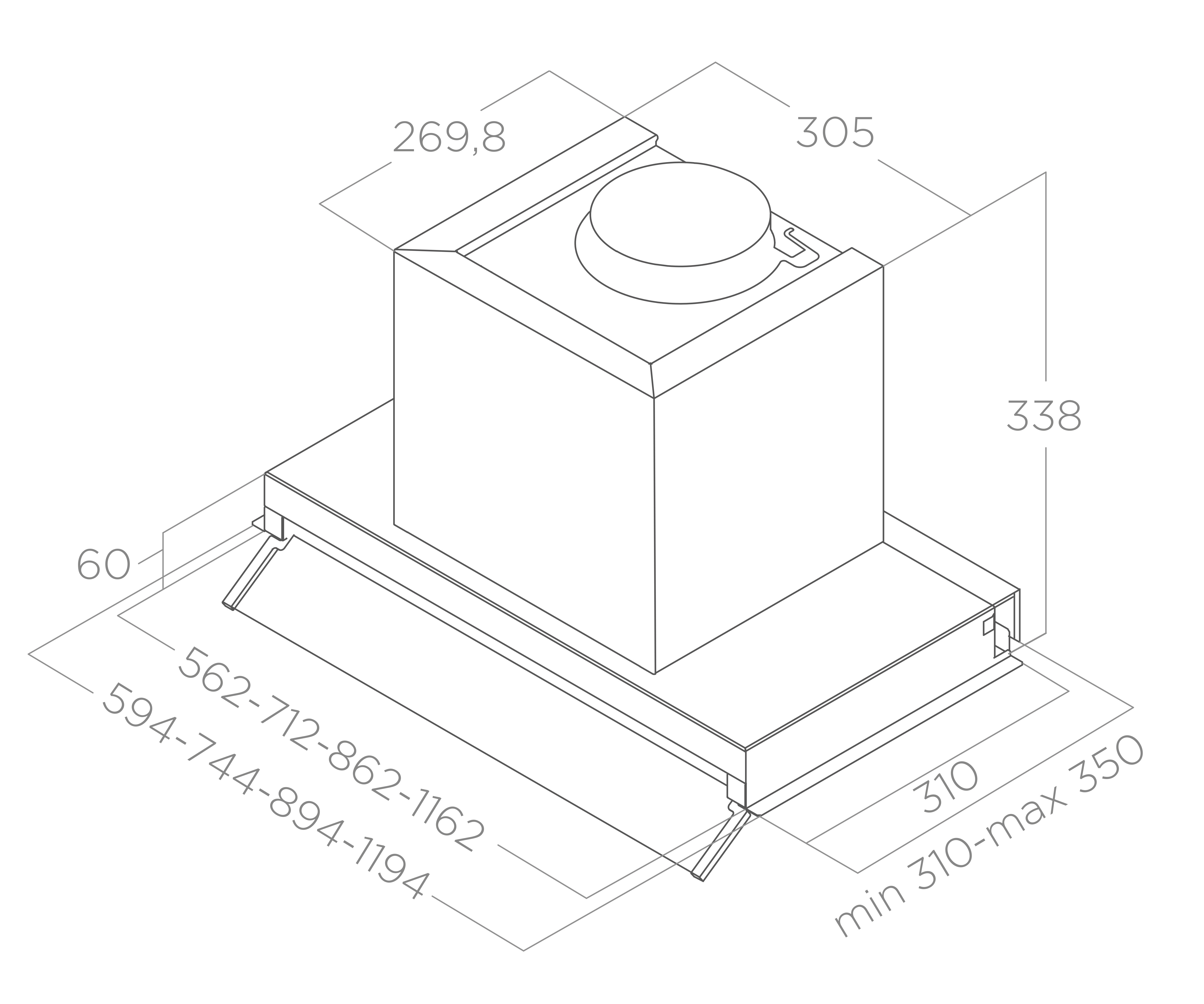

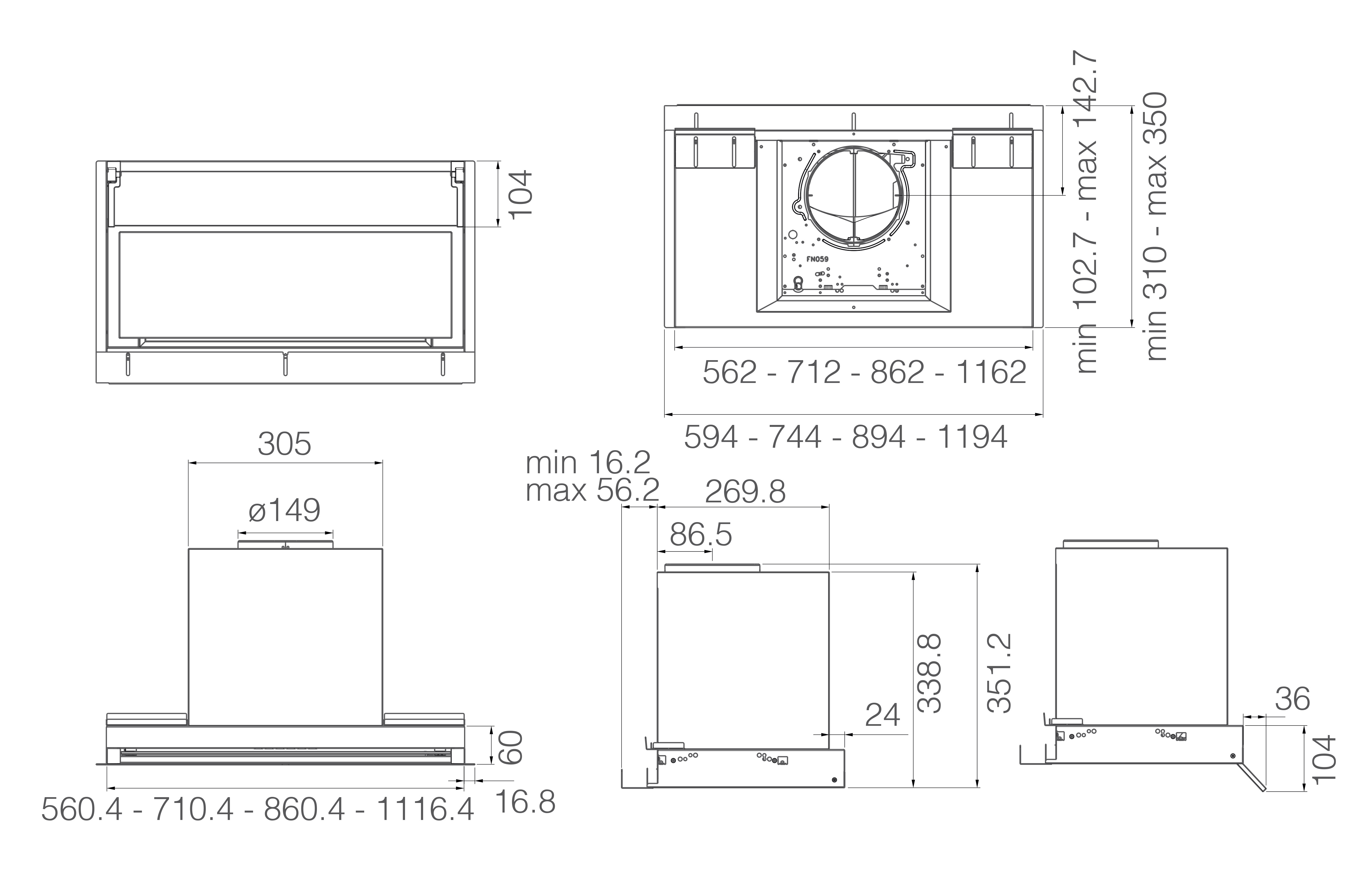

Download the technical sheet Boxin Advance Plus
|
Compare models
|
|
|
|
|---|---|---|---|
| Color |
|
|
|
| Weight (Kg) |
8,7 13,7 11,2 8,8 11,8 14,1 |
Duct-out: 8,75 Duct-out: 11,2 10,4 12,55 Duct-out: 14,9 14,8 |
LX: 8,7 LX: 10,25 LX: 12,6 LX: 8,9 LX: 10,5 STD: 12,6 |
| Finishing |
Stainless Steel Black Matte Black Matte + Black Glass |
Duct-out: Black Matte Stainless Steel |
LX: Stainless Steel STD: Stainless Steel |
| Dimensions (cm) |
60 120 90 |
Duct-out: 60 Duct-out: 90 60 90 Duct-out: 120 120 |
LX: 60 LX: 90 LX: 120 STD: 120 |
| Energy Class | A | A | A |
| Minimum distance from wall unit induction/radiant hob | 43cm | 50cm | 50cm |
| Minimum distance from wall unit gas hob | 57cm | 62cm | 50cm |
| Duct Transition | 150mm | 150mm | 150mm |
| Lighting |
Strip Led 1x7 W - 3500 K - 421 LUX Strip Led 1x7 W - 3500 K - 365 LUX |
Duct-out: Strip Led 1x7 W - 3500 K - 421 LUX Strip Led 1x7 W - 3500 K - 421 LUX Duct-out: Strip Led 1x7 W - 3500 K - 365 LUX |
Led 2x2,5 W - 3500 K - 381 LUX |
| Absorption | 177W |
Duct-out: 286W Duct-out: 307W 286W 307W Duct-out: 325W 325W |
255W |
| Airflow Min-Max | 180m³/h - 640m³/h |
Duct-out: 140m³/h - 700m³/h 140m³/h - 680m³/h 140m³/h - 700m³/h |
255m³/h - 620m³/h |
| Noise level Min-Max | 45db(A) - 57db(A) | 36db(A) - 66db(A) | 50db(A) - 70db(A) |
| Controls | 3S+B Electronic push button | 3S+B Electronic push button | 3S Mechanical rotative |
