Cloud Seven
Design Fabrizio Crisà

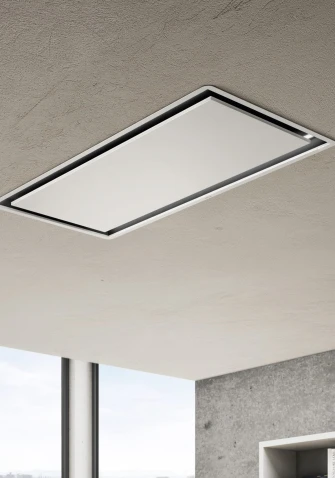

A powerful ceiling-mounted hood with a minimalist design, discreetly floating over the cooking area.
Color: Stainless steel
Size
Products for this combination
PRF0142094A
Cloud Seven
Design Fabrizio Crisà
A powerful ceiling-mounted hood with a minimalist design, discreetly floating over the cooking area.
Cloud of steel.
This appliance is a Plug&Play steel hood, easy to install, equipped with perimeter extraction and LED lighting. It frees the space above and around the hob, while ensuring ultra-effective removal of smoke, odours, and allergens. Notable for its compact and straight lines, it is available in both duct-out and filtering versions.
Technical Specifications
Weight (Kg)
17,7
Finishing
Stainless Steel + White
Dimensions (cm)
90
Energy Class
A
Minimum distance from wall unit induction/radiant hob
60cm
Minimum distance from wall unit gas hob
70cm
Duct Transition
150mm
Lighting
Strip Led 2x7 W - 3500 K - 393 LUX
Absorption
284W
Airflow Min-Max
235m³/h - 770m³/h
Noise level Min-Max
43db(A) - 60db(A)
Controls
3S+2B Remote control
Original accessories
Downloads
Download the technical sheet Cloud Seven
|
Compare models
|
|
|
|
|---|---|---|---|
| Color |
|
|
|
| Weight (Kg) |
19,5 17,7 |
22,5 17,3 19,5 23 23,5 |
H30: 25,8 NO MOTOR: 20 H16: 22,5 H16: 24 |
| Finishing | Stainless Steel + White |
Plasterboard (not included)+ Stainless Steel Frame Bianco opaco Black Matte |
H30: Stainless Steel NO MOTOR: Stainless Steel H16: Stainless Steel H16: Bianco opaco H16: Black Matte H30: Bianco opaco H30: Black Matte |
| Dimensions (cm) | 90 | 100x50 | 100x57 |
| Energy Class |
A |
A |
H30: A NO MOTOR: B H16: A+ |
| Minimum distance from wall unit induction/radiant hob | 60cm |
60cm 65cm |
H30: 60cm NO MOTOR: 60cm H16: 65cm |
| Minimum distance from wall unit gas hob | 70cm | 70cm | 70cm |
| Duct Transition | 150mm | 150mm |
H30: 150mm NO MOTOR: 222x89 (int)mm H16: 150mm |
| Lighting | Strip Led 2x7 W - 3500 K - 393 LUX | Strip Led 2x14 W - 2700 K - 5000 K - 563 LUX |
H30: Strip Led 2x7 W - 3500 K - 563 LUX NO MOTOR: Strip Led 2x7 W - 3500 K - 281 LUX H16: Strip Led 2x7 W - 3500 K - 281 LUX |
| Absorption |
214W 284W |
298W 428W 303W |
H30: 184W NO MOTOR: 164W H16: 189W |
| Airflow Min-Max |
240m³/h - 570m³/h 235m³/h - 770m³/h |
200m³/h - 770m³/h 230m³/h - 850m³/h 275m³/h - 720m³/h |
H30: 200m³/h - 770m³/h NO MOTOR: 230m³/h - 840m³/h H16: 275m³/h - 720m³/h |
| Noise level Min-Max |
52db(A) - 68db(A) 43db(A) - 60db(A) |
40db(A) - 53db(A) 25db(A) - 56db(A) 51db(A) - 68db(A) |
H30: 42db(A) - 58db(A) NO MOTOR: 28db(A) - 57db(A) H16: 51db(A) - 68db(A) |
| Controls |
3S+B Remote control 3S+2B Remote control |
3S+2B Remote control | 3S+2B Remote control |
