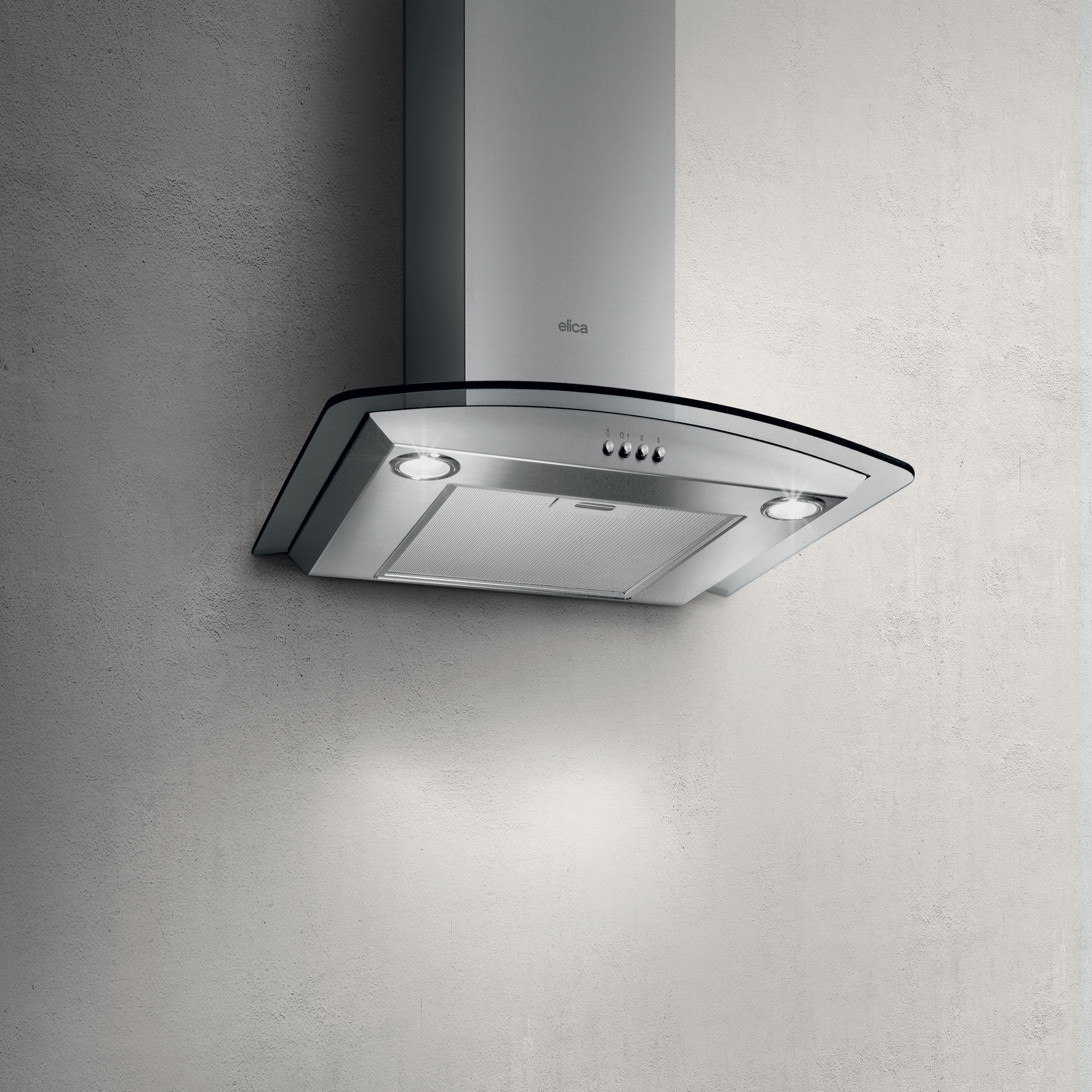

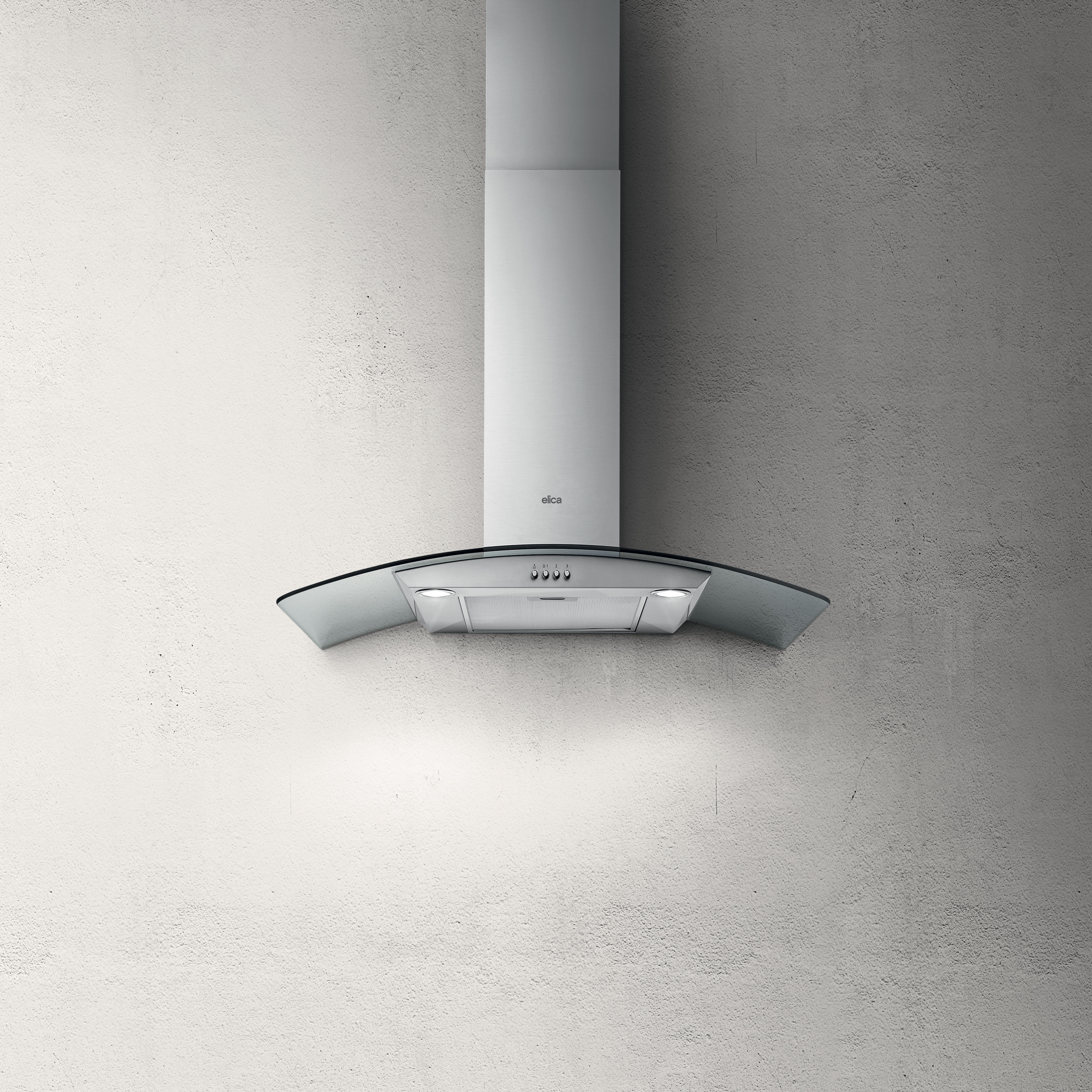

Circus
Elica Design Center
Color: Stainless steel
Size
Products for this combination
68116392A
Circus
Elica Design Center
Technical Specifications
Weight (Kg)
16,55
Finishing
Stainless Steel + Glass
Dimensions (cm)
90
Energy Class
D
Minimum distance from wall unit induction/radiant hob
50cm
Minimum distance from wall unit gas hob
65cm
Duct Transition
150mm
Lighting
Led 2x2,5 W - 3500 K - 381 LUX
Absorption
140W
Airflow Min-Max
195m³/h - 384m³/h
Noise level Min-Max
55db(A) - 62db(A)
Controls
3S Mechanical push button
Downloads
|
Compare models
|
|
|
|
|---|---|---|---|
| Color |
|
|
|
| Weight (Kg) | 16,55 | 15,2 | 13,9 |
| Finishing | Stainless Steel + Glass | Stainless Steel + Glass | Pewter effect |
| Dimensions (cm) | 90 | 90 | 85 |
| Energy Class | D | A | A |
| Minimum distance from wall unit induction/radiant hob | 50cm | 50cm | 60cm |
| Minimum distance from wall unit gas hob | 65cm | 65cm | 70cm |
| Duct Transition | 150mm | 150mm | 150mm |
| Lighting | Led 2x2,5 W - 3500 K - 381 LUX | Led 2x2,5 W - 3000 K - 381 LUX | Strip Led 1x7 W - 4000 K - 197 LUX |
| Absorption | 140W | 205W | 207W |
| Airflow Min-Max | 195m³/h - 384m³/h | 255m³/h - 600m³/h | 230m³/h - 580m³/h |
| Noise level Min-Max | 55db(A) - 62db(A) | 48db(A) - 64db(A) | 46db(A) - 61db(A) |
| Controls | 3S Mechanical push button | 3S+B Electronic push button with display | 3S+B Capacitive touch control |
