Tamaya 2.0 Rail
Elica Design Center
Color: dark grey
Size
Products for this combination
PRF0177406
Tamaya 2.0 Rail
Elica Design Center
Easy to Maintain
The perfect product with easy maintenance.
Proper maintenance and maximum hygiene, ensure a longer lifespan of the appliance. Our models have been conceived to make the replacement of grease filters and odour filters easier: all are removable, washable and replaceable.
Technical Specifications
Weight (Kg)
10.2
Finishing
Anthracite + Bronze Tool Holder Bracket

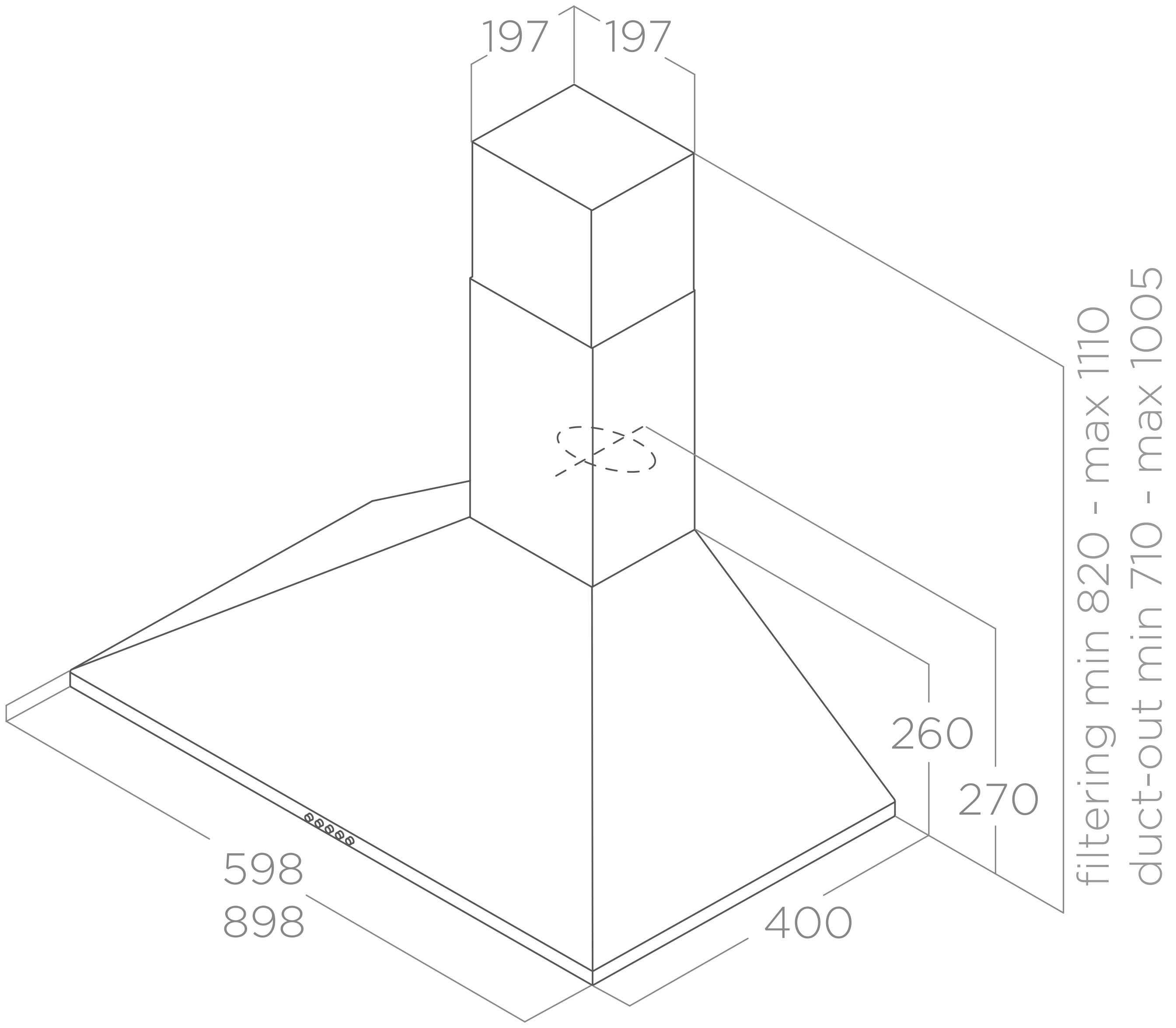

Dimensions (cm)
90
Energy Class
D
Minimum distance from wall unit induction/radiant hob
50cm
Minimum distance from wall unit gas hob
65cm
Duct Transition
150mm
Lighting
Led 2x2,5 W - 3500 K - 381 LUX
Absorption
145W
Airflow Min-Max
350-600m³/h
Noise level Min-Max
56db(A) - 65db(A)
Controls
3S Mechanical push button
Downloads
|
Compare models
|
|
|
|
|---|---|---|---|
| Color |
|
|
|
| Weight (Kg) |
8.8 10.2 |
8 8.9 |
BL: 18.4 BL: 22.7 WH: 18.4 WH: 22.7 18.4 22.7 |
| Finishing |
Anthracite + Bronze Tool Holder Bracket Cream + Bronze Tool Holder Bracket |
Stainless Steel |
BL: Black Glass WH: White Glass Grey Glass |
| Dimensions (cm) |
60 90 |
60 90 |
BL: 60 BL: 90 WH: 60 WH: 90 60 90 |
| Energy Class | D | A | B |
| Minimum distance from wall unit induction/radiant hob | 50cm | 50cm | 40cm |
| Minimum distance from wall unit gas hob | 65cm | 65cm | 50cm |
| Duct Transition | 150mm | 150mm | 150mm |
| Lighting | Led 2x2,5 W - 3500 K - 381 LUX | Led 2x2,5 W - 3500 K - 381 LUX | Led 2x2,5 W - 3000 K - 203 LUX |
| Absorption | 145W | 255W | 265W |
| Airflow Min-Max | 350-600m³/h | 350-950m³/h | 300-900m³/h |
| Noise level Min-Max | 56db(A) - 65db(A) | 52db(A) - 68db(A) | 50db(A) - 65db(A) |
| Controls | 3S Mechanical push button | 3S+B Electronic push button with display | 3S+B Capacitive touch control |
