NikolaTesla Alpha Advance
Design Fabrizio Crisà
Color: black matt
Size
Products for this combination
PRF0211076
PRF0211077
NikolaTesla Alpha Advance
Design Fabrizio Crisà
Plus
Technical Specifications
Weight (Kg)
14,4
15,8
15,8
Finishing
Matt black glass
Dimensions (cm)
72x51,5x25
Energy Class
A

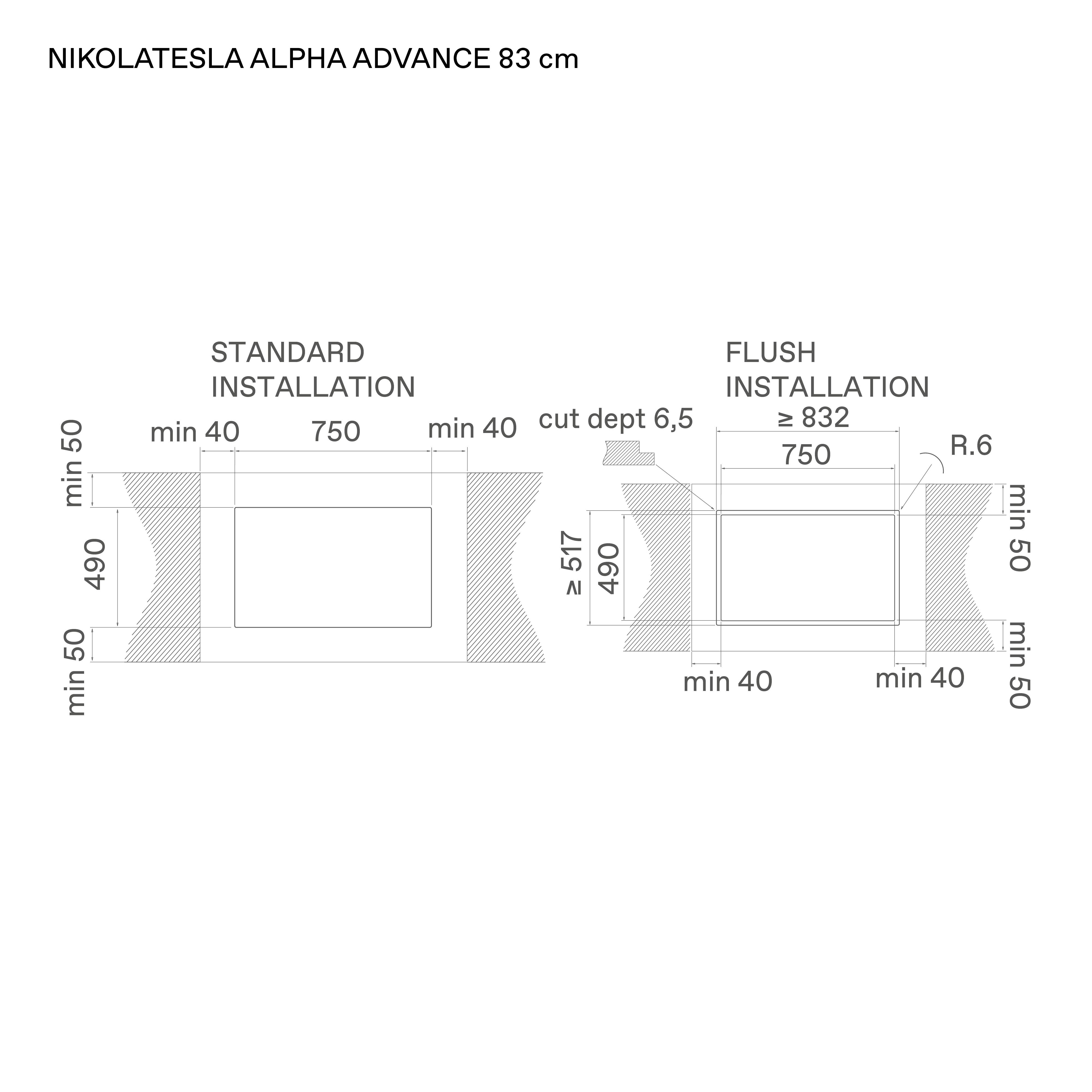

Cut out
56x49 cm
Total absorption
7,4 kW
Airflow min duct-out
200m³/h
Airflow max duct-out
490m³/h
Airflow boost duct-out
610m³/h
Airflow min filtering
195m³/h
Airflow max filtering
410m³/h
Airflow Filtering
515m³/h
Suction speed
5,1m/s
Noise level Min-Max aspiration
42db(A) - 61db(A)
Noise level Min-Max filter
50db(A) - 67db(A)
Controls
4S+B Slider touch control
Absorption
160 W
Controls
9P+B slider touch control
Voltage
220-240V / 380-415V 2N / 380-415V 3N
Power limitation
3,1kW - 4,5kW
Number of bridge zones
1 (SX)
Front left cooking zone
OCTA 21x19,1 cm - 2,1/3 kW
Right front cooking zone
Ø 16 cm - 1,2/1,4 kW
Rear left cooking zone
OCTA 21x19,1 cm - 1,65/1,85 kW
Rear right cooking zone
Ø 20 cm - 2,3/3 kW
Original accessories
|
Model
Find the right spare part by checking the specifications with the PRF code
|
NIKOLATESLA ALPHA ADVANCE RAW BA/72
PRF0211076
|
NIKOLATESLA ALPHA ADVANCE RAW BO/72
PRF0211077
|
| Venting Type | PRF0211076 | PRF0211077 |
|---|---|---|
| Weight (Kg) | 14,4 | 15,8 |
| View accessories | View accessories |
|
Compare models
|
|
|
|
|---|---|---|---|
| Color |
|
|
|
| Weight (Kg) |
16,3 13,7 14,4 15,1 15,8 17,7 |
19,7 | |
| Finishing |
Matt black glass Duct-out: Black glass Duct-out: Matt black glass |
Black glass |
Duct-out: Black glass Filtering: Black glass Matt black glass |
| Dimensions (cm) |
83x51,5x25 60x51,5x19,4 72x51,5x25 Duct-out: 83x51,5x19,4 |
83x51,5x21 |
Duct-out: 60x51,5x19,4 Filtering: 60x51,5x19,4 60x51,5x19,4 Duct-out: 72x51,5x19,4 Filtering: 72x51,5x19,4 Duct-out: 78x51,5x19,4 Filtering: 78x51,5x19,4 78x51,5x19,4 |
| Energy Class |
A Duct-out: A+ |
A++ | A+ |
| Cut out |
75x49 cm 56x49 cm Duct-out: 75x49 cm |
80,7x49,2 cm |
Duct-out: 56x49 cm Filtering: 56x49 cm 56x49 cm Duct-out: 75x49 cm Filtering: 75x49 cm 75x49 cm |
| Total absorption |
7,4 kW Duct-out: 7,5 kW |
7,4 kW | 7,5 kW |
| Airflow min duct-out |
205m³/h 200m³/h Duct-out: 155m³/h |
130m³/h | 155m³/h |
| Airflow max duct-out |
455m³/h 490m³/h Duct-out: 500m³/h |
525m³/h | 500m³/h |
| Airflow boost duct-out |
570m³/h 610m³/h Duct-out: 620m³/h |
620m³/h | 620m³/h |
| Airflow min filtering |
190m³/h 195m³/h Duct-out: 155m³/h |
130m³/h | 155m³/h |
| Airflow max filtering |
385m³/h 410m³/h Duct-out: 465m³/h |
580m³/h | 465m³/h |
| Airflow Filtering |
475m³/h 515m³/h Duct-out: 580m³/h |
600m³/h | 580m³/h |
| Suction speed |
5,1m/s |
5,1m/s | 5,1m/s |
| Noise level Min-Max aspiration |
43db(A) - 61db(A) 42db(A) - 61db(A) Duct-out: 42db(A) - 69db(A) |
34db(A) - 67db(A) | 42db(A) - 69db(A) |
| Noise level Min-Max filter |
52db(A) - 67db(A) 50db(A) - 67db(A) Duct-out: 51db(A) - 75db(A) |
38db(A) - 71db(A) | 51db(A) - 75db(A) |
| Controls | 4S+B Slider touch control | 9S+B Slider touch control | 4S+B Slider touch control |
| Absorption |
160 W Duct-out: 350 W |
175 W | 350 W |
| Controls | 9P+B slider touch control | 9P+B Touch control direct slider | 9P+B slider touch control |
| Voltage | 220-240V / 380-415V 2N / 380-415V 3N | 220-240V / 380-415V 2N / 380-415V 3N | 220-240V / 380-415V 2N / 380-415V 3N |
| Power limitation |
3,1kW - 4,5kW |
3,1kW - 4,5kW | |
| Number of bridge zones | 1 (SX) | 2 | 1 (SX) |
| Front left cooking zone |
OCTA 21x19,1 cm - 1,65/1,85 kW OCTA 21x19,1 cm - 2,1/3 kW Duct-out: OCTA 21x19,1 cm - 1,65/1,85 kW |
OCTA 21x19,1 cm - 2,1/3 kW | Ø 18 cm - 1,5/2,0 kW |
| Right front cooking zone | Ø 16 cm - 1,2/1,4 kW | OCTA 21x19,1 cm - 2,1/3 kW | Ø 16 cm - 1,2/1,6 kW |
| Rear left cooking zone |
OCTA 21x19,1 cm - 2,1/3 kW OCTA 21x19,1 cm - 1,65/1,85 kW Duct-out: OCTA 21x19,1 cm - 2,1/3 kW |
OCTA 21x19,1 cm - 2,1/3 kW | Ø 18 cm - 1,5/2,0 kW |
| Rear right cooking zone | Ø 20 cm - 2,3/3 kW | OCTA 21x19,1 cm - 2,1/3 kW | Ø 21 cm - 1,5/2 kW |
