Stripe A
Color: black
Size
Products for this combination
PRF0210233
Stripe A
Back Aspiration
Maximum extraction and aesthetics alongside.
No more additional piping and chimneys visible to the naked eye in wall installations! The results? Top extraction capacity and top aesthetic appeal.
Maintenance Alarm
Filters KO’d? You’ll be informed.
A warning light will switch on to signal out to you that grease filters and odour filters have reached their maximum saturation point. It’s time for you to wash or replace them.
Easy to Maintain
The perfect product with easy maintenance.
Proper maintenance and maximum hygiene, ensure a longer lifespan of the appliance. Our models have been conceived to make the replacement of grease filters and odour filters easier: all are removable, washable and replaceable.
Technical Specifications
Weight (Kg)
16,36
Finishing
Vetro Nero Opaco
Dimensions (cm)
60
Energy Class
A
Minimum distance from wall unit induction/radiant hob
45cm
Minimum distance from wall unit gas hob
55cm
Duct Transition
150mm
Lighting
Led 2x2,5 W - 3500 K - 381 LUX
Absorption
205W
Airflow Min-Max
245m³/h - 600m³/h
Noise level Min-Max
46db(A) - 60db(A)
Controls
3S+B Capacitive touch control
Original accessories
Downloads

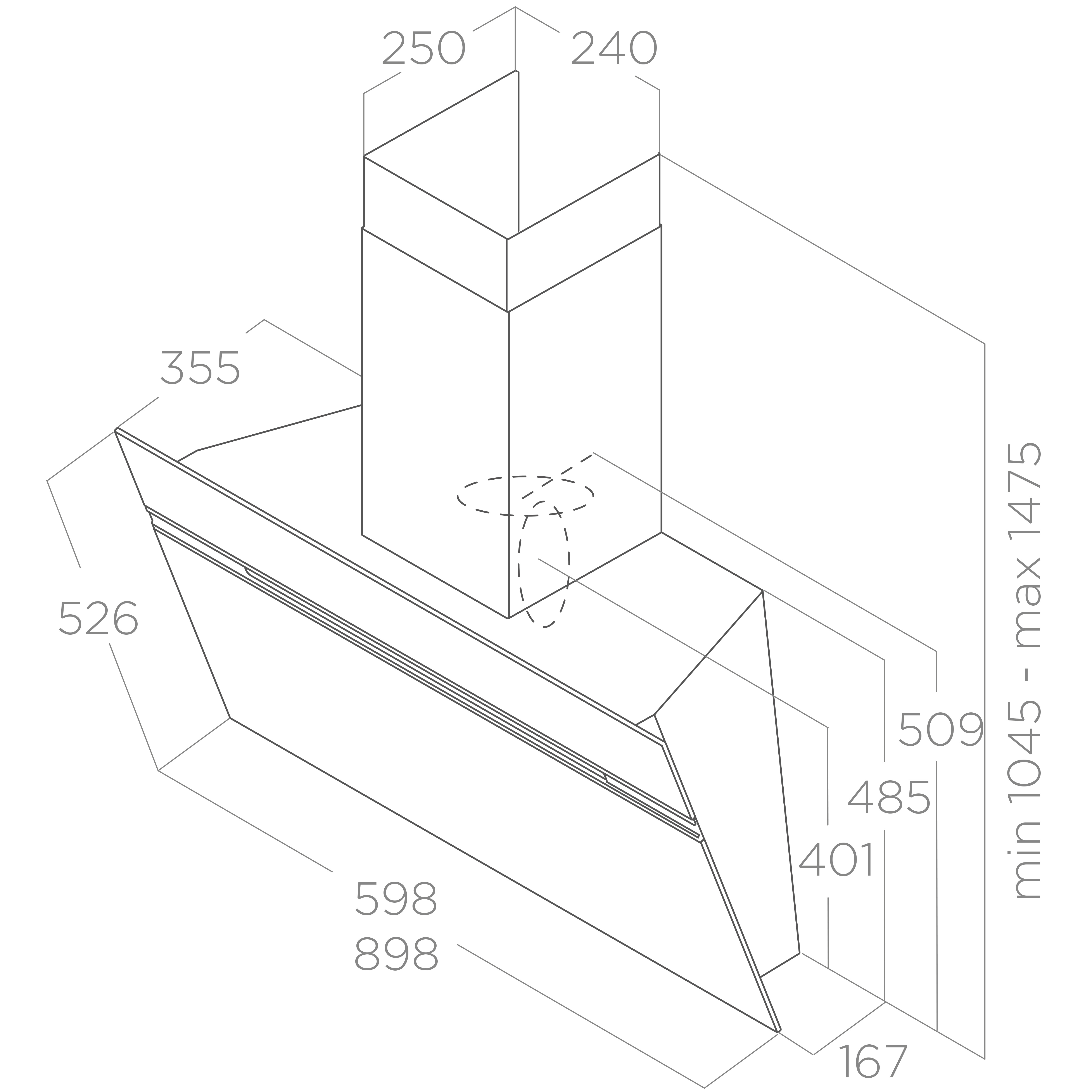

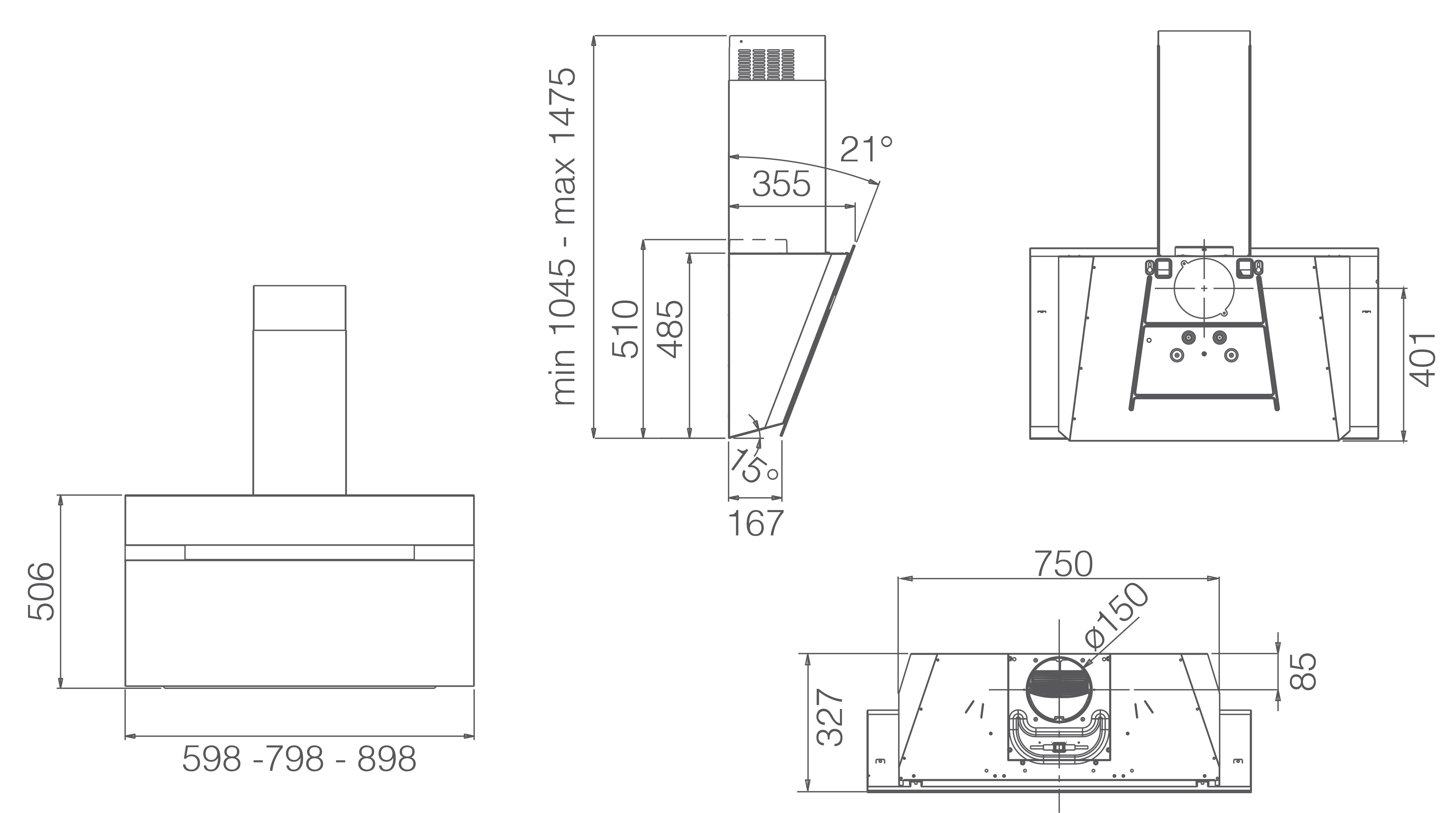

Download the technical sheet Stripe A
|
Compare models
|
|
|
|
|---|---|---|---|
| Color |
|
|
|
| Weight (Kg) |
16,36 20,3 |
27 |
BL: 18,4 BL: 22,7 WH: 18,4 WH: 22,7 IX: 18,4 IX: 22,7 16,1 19,1 19,6 16 18,9 19,5 |
| Finishing | Vetro Nero Opaco |
White Glass Black Glass |
BL: Black Glass WH: White Glass IX: Stainless Steel Black Glass White Glass |
| Dimensions (cm) |
60 90 |
75 |
BL: 60 BL: 90 WH: 60 WH: 90 IX: 60 IX: 90 60 80 90 BL: 80 WH: 80 |
| Energy Class | A | A++ | B |
| Minimum distance from wall unit induction/radiant hob | 45cm | 40cm | 40cm |
| Minimum distance from wall unit gas hob | 55cm | 55cm | 50cm |
| Duct Transition | 150mm | 150mm | 150mm |
| Lighting | Led 2x2,5 W - 3500 K - 381 LUX | Strip Led 1x7 W - 3500 K - 421 LUX |
BL: Led 2x2,5 W - 3000 K - 203 LUX WH: Led 2x2,5 W - 3000 K - 203 LUX IX: Led 2x2,5 W - 3000 K - 203 LUX Led 2x2,5 W - 3000 K - 203 LUX BL: Led 2x2,5 W - 3000 K - 381 LUX WH: Led 2x2,5 W - 3000 K - 381 LUX |
| Absorption | 205W | 177W | 265W |
| Airflow Min-Max | 245m³/h - 600m³/h | 210m³/h - 680m³/h |
BL: 288m³/h - 757m³/h WH: 288m³/h - 757m³/h IX: 288m³/h - 757m³/h 288m³/h - 757m³/h BL: 295m³/h - 757m³/h WH: 295m³/h - 757m³/h |
| Noise level Min-Max | 46db(A) - 60db(A) | 48db(A) - 60db(A) | 50db(A) - 65db(A) |
| Controls | 3S+B Capacitive touch control | 3S+B Capacitive touch control |
BL: 3S+B Capacitive touch control WH: 3S+B Capacitive touch control IX: 3S+B Electronic push button 3S+B Capacitive touch control |
