Ratio Connex 302 Plus
Design Fabrizio Crisà
A super compact induction hob distinguished by its clean lines and minimalist aesthetic. Total black glass, subtle serigraphs, slider control. Easy-to-use functions and connection with the hood.
Color: black
Size
Products for this combination
PRF0199850
Ratio Connex 302 Plus
Design Fabrizio Crisà
A super compact induction hob distinguished by its clean lines and minimalist aesthetic. Total black glass, subtle serigraphs, slider control. Easy-to-use functions and connection with the hood.
Ergonomic and connected. In 30 cm.
This 2-zone induction hob is designed to fit into very small spaces or to complement other hobs. It comes with a function to bridge two zones, ensuring uniform power and temperature, even when using larger cookware. The intuitive touch slider control gives you full control over all settings and functions of the hob. Warming, for instance, is a function designed for slow cooking, heating up milk and soup, preparing custards and sauces without overheating, and for keeping ready-made food warm. The hob synchs with Elica hoods via Bluetooth to automatically adjust the light and extraction rate based on the cooking zones in use.
Technical Specifications
Weight (Kg)
5
Finishing
Black glass

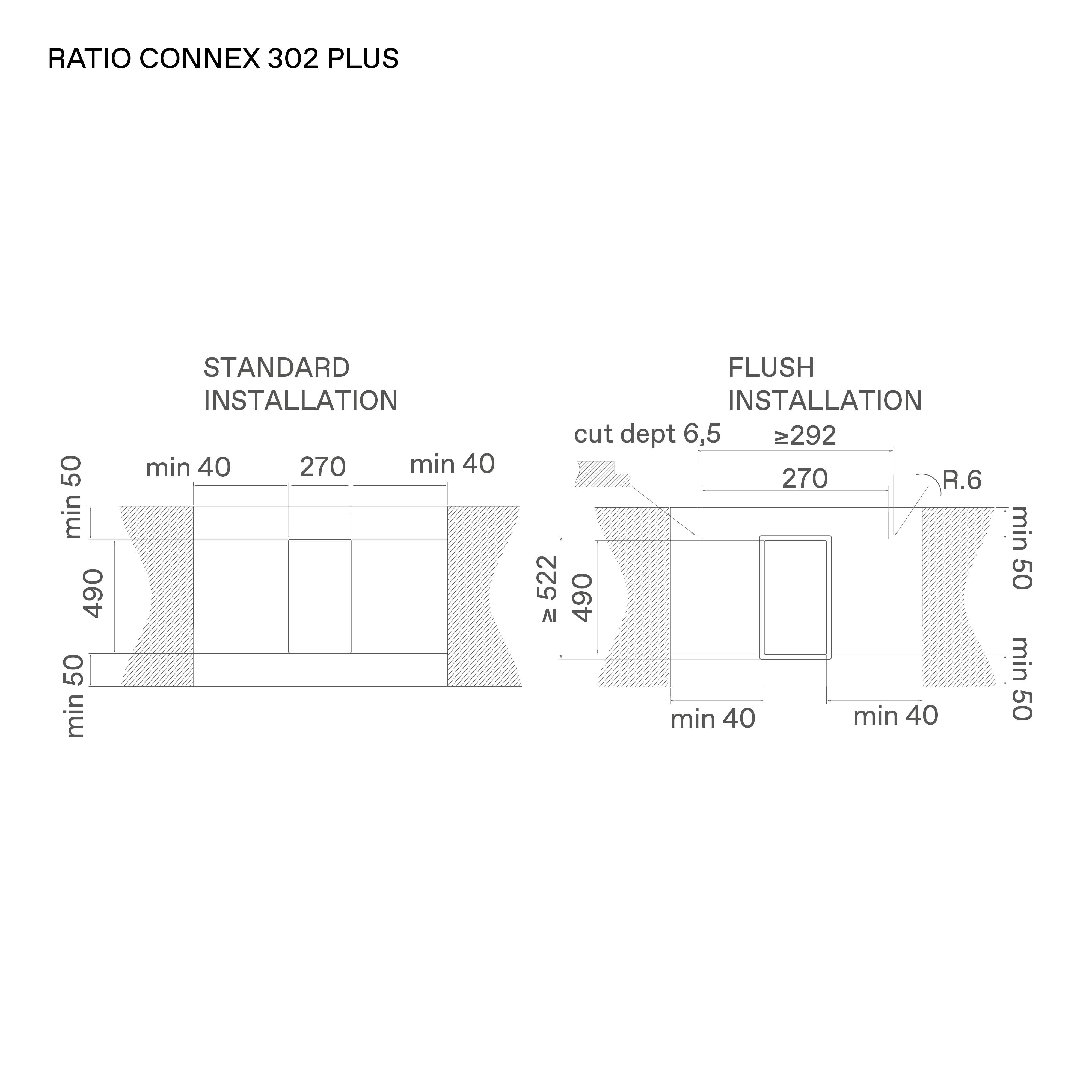

Cut out
27x49 cm
Total absorption
7,2 kW
Controls
9P+B slider touch control
Voltage
220-240V
Power limitation
3,1kW
Number of bridge zones
1 - SX
Front left cooking zone
OCTA 21x19,1 cm - 2,1/3 kW
Rear left cooking zone
OCTA 21x19,1 cm - 2,1/3 kW
Downloads
|
Compare models
|
|
|
|
|---|---|---|---|
| Color |
|
|
|
| Weight (Kg) | 5 | 5,9 | 11,2 |
| Finishing | Black glass | Black glass | Black glass |
| Cut out | 27x49 cm | 27 x49 cm | 84x33,5 cm |
| Total absorption | 7,2 kW | 3,7 kW | 7,2 kW |
| Controls | 9P+B slider touch control | 9P+B slider touch control | 9P+B Touch control direct slider |
| Voltage | 220-240V | 220-240V | 220-240V / 380-415V 2N |
| Power limitation | 3,1kW | 3,1kW | 4,5kW |
| Number of bridge zones | 1 - SX | 1 - SX | 2 |
| Front left cooking zone | OCTA 21x19,1 cm - 2,1/3 kW | OCTA 21x19,1 cm - 1,65/1,85 kW | OCTA 22x18,4 cm - 2,1/3,7 kW |
| Rear left cooking zone | OCTA 21x19,1 cm - 2,1/3 kW | OCTA 21x19,1 cm - 2,1/3 kW | OCTA 22x18,4 cm - 2,1/3,7 kW |
| Right front cooking zone | OCTA 22x18,4 cm - 2,1/3,7 kW | ||
| Rear right cooking zone | OCTA 22x18,4 cm - 2,1/3,7 kW |
