Plat
Design Fabrizio Crisà
A minimalist yet eye-catching wall-mounted hood. This energy efficient hood features a perimeter extraction system, glass finishes, and whisper-quiet performance.
Color: black
Size
Products for this combination
PRF0164874A
Plat
Design Fabrizio Crisà
A minimalist yet eye-catching wall-mounted hood. This energy efficient hood features a perimeter extraction system, glass finishes, and whisper-quiet performance.
The richness of simplicity.

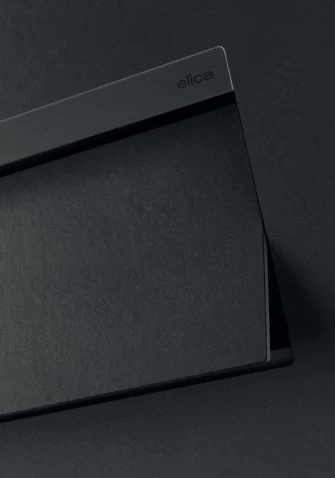

The essential lines of this wall-mounted hood represent an excellent blend of linearity and functionality. It is available in two finishes, with aluminium perimeter trim: ultra-light tempered glass screen-printed in black or white. The glass is highly resistant and low in iron content, enhancing its transparency. Thanks to both Wi-Fi and Bluetooth connectivity, it can be controlled via an app or voice assistant. It can communicate with the Elica hob and self-adjust its settings based on the cooking zones in use. The system efficiently maximizes vapour and odour extraction while keeping noise to a minimum. The lift-up front panel allows for easy cleaning and filter access.
Technical Specifications
Weight (Kg)
21
Finishing
Black Glass
Dimensions (cm)
80
Energy Class
A
Minimum distance from wall unit induction/radiant hob
50cm
Minimum distance from wall unit gas hob
65cm
Duct Transition
150mm
Lighting
Strip Led 1x7 W - 3500 K - 365 LUX
Absorption
277W
Airflow Min-Max
160m³/h - 710m³/h
Noise level Min-Max
37db(A) - 57db(A)
Controls
3S+B Capacitive touch control
Downloads
Download the technical sheet Plat
|
Compare models
|
|
|
|
|---|---|---|---|
| Color |
|
|
|
| Weight (Kg) |
21 17 20,6 |
61,6 34,7 |
IX: 18,4 IX: 22,7 16,1 19,6 16 19,5 |
| Finishing |
Black Glass White Glass |
Nero opaco |
IX: Stainless Steel Black Glass White Glass |
| Dimensions (cm) |
80 55 |
160 80 |
IX: 60 IX: 90 60 90 |
| Energy Class | A | B | |
| Minimum distance from wall unit induction/radiant hob | 50cm | 55cm | 40cm |
| Minimum distance from wall unit gas hob | 65cm | 65cm | 50cm |
| Duct Transition | 150mm | 150mm | |
| Lighting | Strip Led 1x7 W - 3500 K - 365 LUX |
Led Panel 2x21 W - 2700 K - 5200 K - 844 LUX Led Panel 1x21 W - 2700 K - 5200 K - 758 LUX |
Led 2x2,5 W - 3000 K - 203 LUX |
| Absorption | 277W |
282W 261W |
265W |
| Airflow Min-Max | 160m³/h - 710m³/h | 335m³/h - 500m³/h | 288m³/h - 757m³/h |
| Noise level Min-Max | 37db(A) - 57db(A) | 63db(A) - 69db(A) | 50db(A) - 65db(A) |
| Controls | 3S+B Capacitive touch control | 3S+B Electronic push button |
IX: 3S+B Electronic push button 3S+B Capacitive touch control |
