TheKub Wall

Color: Black + Stainless Steel
Size
Products for this combination
PRF0214975

TheKub Wall

Cooker Hoods Wall-mounted cooker hoods TheKub Wall black + inox 32 detail

Plus

Black Matt

Black Matt

Matt black finish defines a minimal and contemporary style, while eliminating reflections and simplifying cleaning.
Comfort Silence

Comfort Silence

Thanks to the Brushless motor, suction power combines with maximum energy efficiency and exceptional acoustic comfort.
Wide light Dimming

Wide light Dimming

Full LED lighting provides even illumination and offers adjustable brightness: set it to maximum for a very bright space, or to a softer setting for a more relaxed atmosphere.
Modular Design Kub

Modular Design Kub

Many configurations available: wall-mounted, suspended, island; available in steel, white and matt black finishes, enriched by dedicated accessories including a wooden shelf, creating even more configuration possibilities.

Features

Dim Light

Delay Switch Off

Brushless

Back Aspiration

Technical Specifications

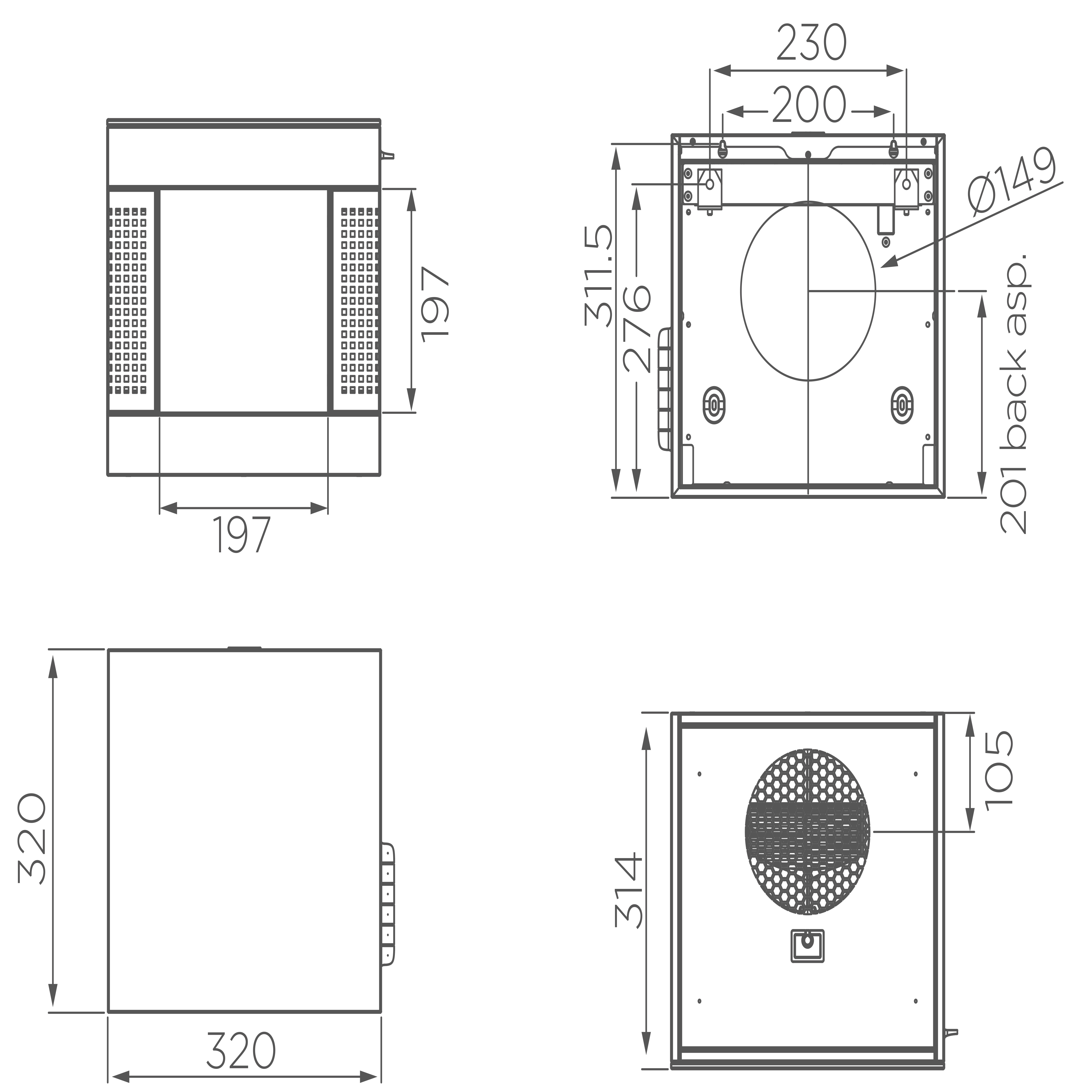

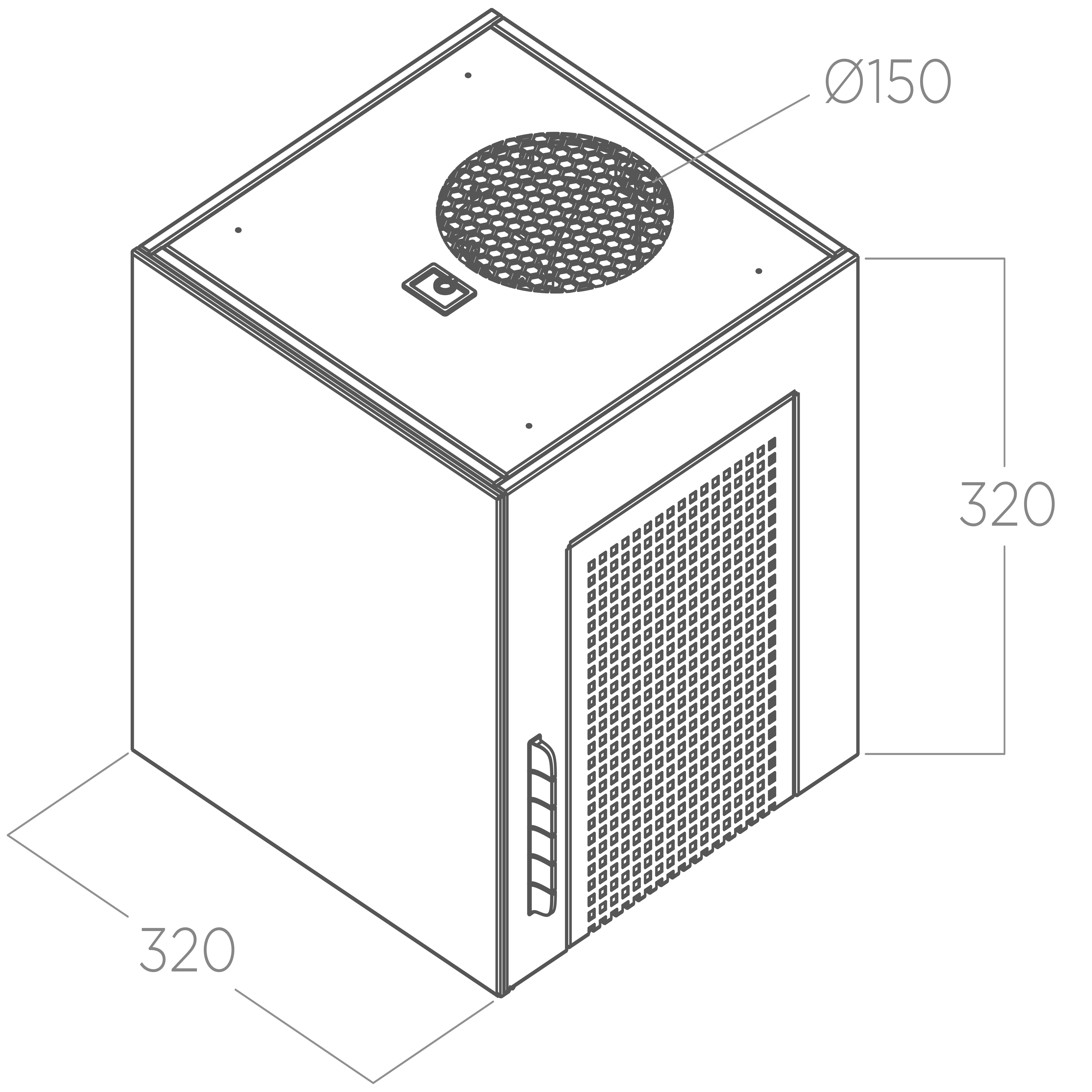

Tech sheet Tech sheet

Finishing
Stainless Steel
Dimensions (cm)
3
Energy Class
A+
Minimum distance from wall unit induction/radiant hob
50cm
Minimum distance from wall unit gas hob
65cm
Duct Transition
150mm
Lighting
7 - 3000 - 450 LUX
Absorption
177W

Airflow Min-Max
195m³/h - 710m³/h
Noise level Min-Max
41db(A) - 59db(A)
Controls
3S+B Electronic push button
Cooker Hoods Wall-mounted cooker hoods TheKub Wall black + inox 32 tech sheet Cooker Hoods Wall-mounted cooker hoods TheKub Wall black + inox 32 tech sheet

Downloads

THE KUB @ IX/A/32
PRF0214975
Go to Downloads
Compare models
TheKub Wall
Shire
Vertigo S
Color Black + Stainless Steel white white black black
Finishing Stainless Steel
Nero opaco + Vetro Nero
 Black Glass
White Glass
 Black Glass
Dimensions (cm) 3 60
90
 90
120
Energy Class A+ A B
Minimum distance from wall unit induction/radiant hob 50cm 45cm 40cm
Minimum distance from wall unit gas hob 65cm 65cm 50cm
Duct Transition 150mm 150mm 150mm
Lighting 7 - 3000 - 450 LUX Led 2x1 W - 3500 K - 120 LUX Strip Led 1x7 W - 3000 K - 301 LUX
Strip Led 1x7 W - 3000 K - 253 LUX
Absorption 177W 232W 267W
Weight (Kg) 12
14
13
 20,3
22,9
Airflow Min-Max 195m³/h - 710m³/h 275m³/h - 650m³/h 310m³/h - 740m³/h
Noise level Min-Max 41db(A) - 59db(A) 52db(A) - 64db(A) 50db(A) - 66db(A)
Controls 3S+B Electronic push button 2S+B Capacitive touch control 3S+B Capacitive touch control
