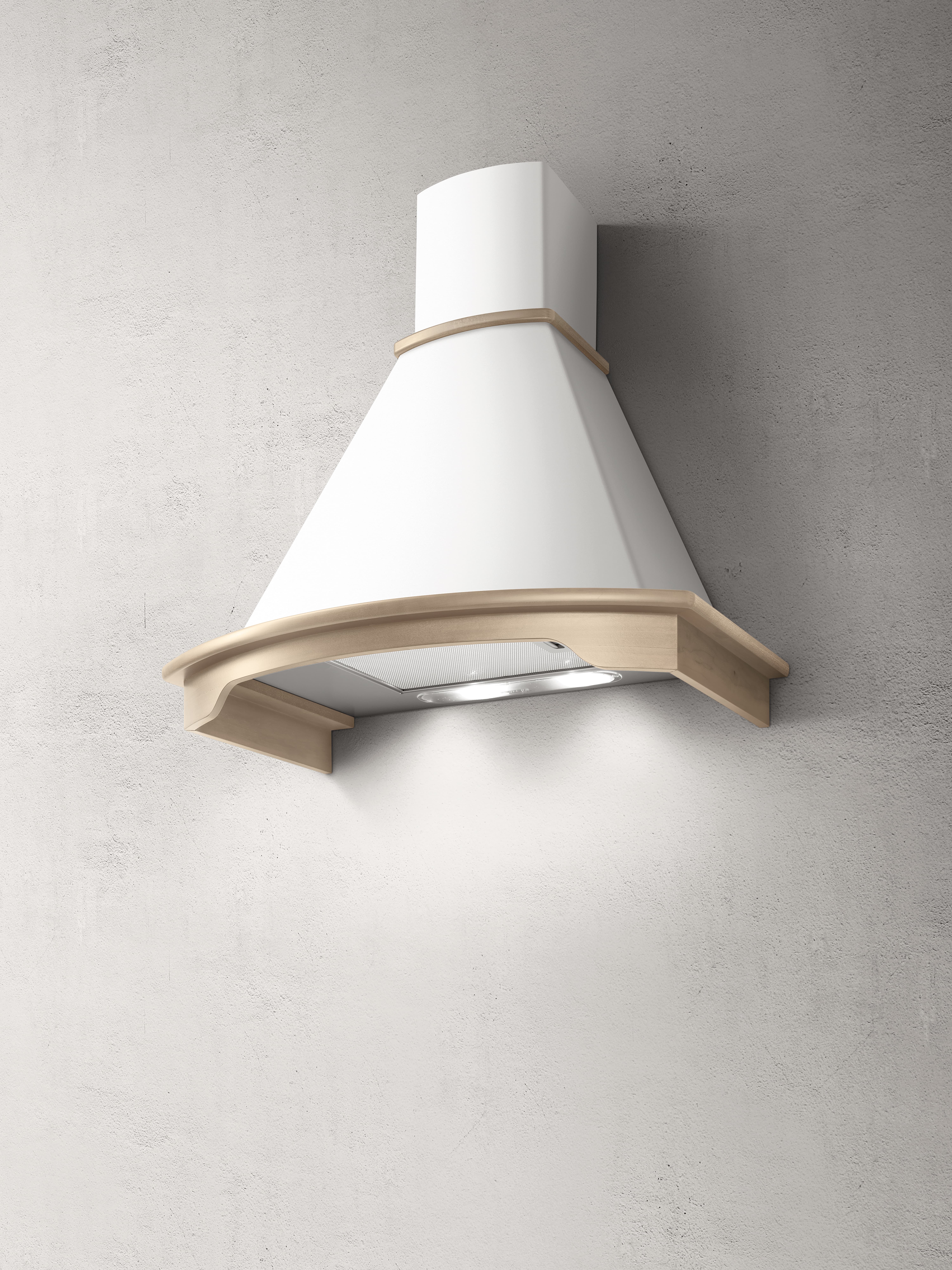

Coraline
Elica Design Center
Color: white
Size
Products for this combination
PRF0041810B
Coraline
Elica Design Center
Technical Specifications
Weight (Kg)
13,82
Finishing
White + Raw Toulipier
Dimensions (cm)
60
Energy Class
D
Minimum distance from wall unit induction/radiant hob
50cm
Minimum distance from wall unit gas hob
65cm
Duct Transition
150mm
Lighting
Led 2x3 W - 2700 K - 73 LUX
Absorption
146W
MOTOR 650
650
Airflow Min-Max
290m³/h - 435m³/h
Noise level Min-Max
56db(A) - 65db(A)
Controls
3S Mechanical slider
Original accessories
Downloads
Download the technical sheet Coraline
|
Compare models
|
|
|
|
|---|---|---|---|
| Color |
|
|
|
| Weight (Kg) |
13,82 13,6 |
17,6 18 |
34,7 61,6 |
| Finishing | White + Raw Toulipier |
Stainless Steel White |
Nero opaco |
| Dimensions (cm) |
60 90 |
33 |
80 160 |
| Energy Class | D | C | |
| Minimum distance from wall unit induction/radiant hob | 50cm | 50cm | 55cm |
| Minimum distance from wall unit gas hob | 65cm | 65cm | 65cm |
| Duct Transition | 150mm | 150mm | |
| Lighting | Led 2x3 W - 2700 K - 73 LUX | Led 2x2,5 W - 2700 K - 457 LUX |
Led Panel 1x21 W - 2700 K - 5200 K - 758 LUX Led Panel 2x21 W - 2700 K - 5200 K - 844 LUX |
| Absorption | 146W | 180W |
261W 282W |
| MOTOR 650 | 650 | ||
| MOTOR 900 | 900 | ||
| Airflow Min-Max | 290m³/h - 435m³/h | 240m³/h - 559m³/h | 335m³/h - 500m³/h |
| Noise level Min-Max | 56db(A) - 65db(A) | 44db(A) - 67db(A) | 63db(A) - 69db(A) |
| Controls | 3S Mechanical slider | 3S Soft light push button | 3S+B Electronic push button |
