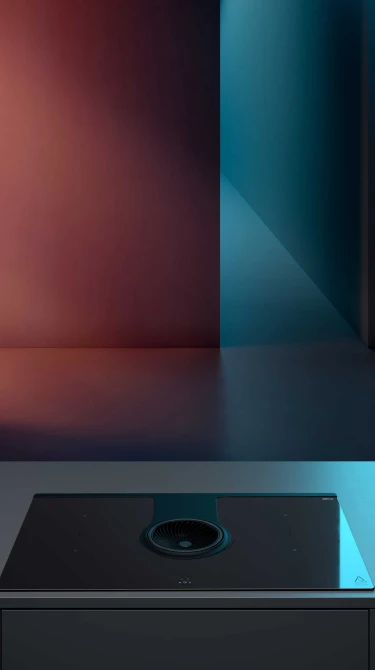

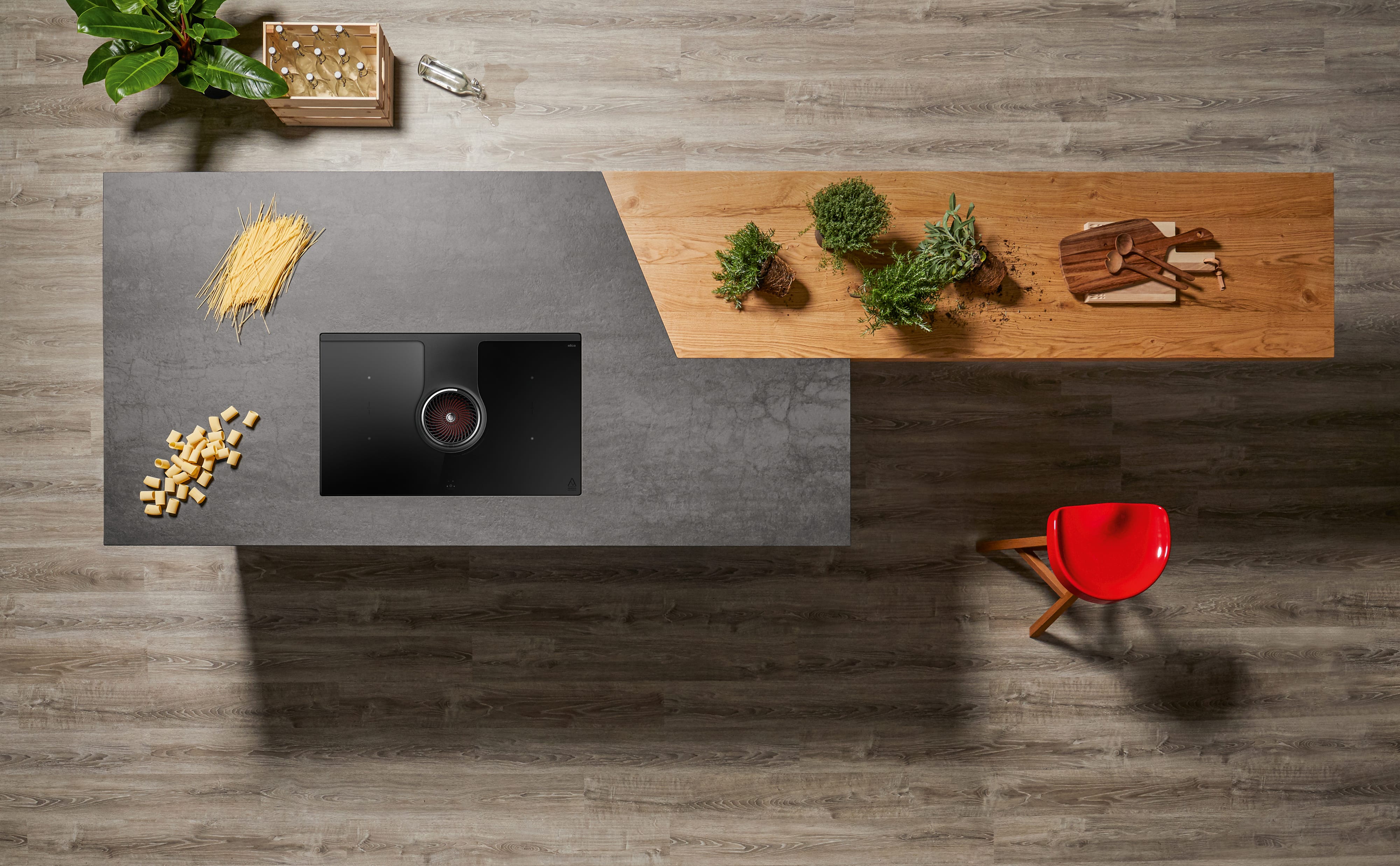

NikolaTesla One HP
Design Fabrizio Cris
Color: black
Size
Products for this combination
PRF0120975B
NikolaTesla One HP
Design Fabrizio Cris
Technical Specifications
Weight (Kg)
27.3
Finishing
Black glass
Dimensions (cm)
83x51,5x21
Energy Class
A++
Cut out
80,7x49,2 cm
Total absorption
7,4 kW
Airflow min duct-out
130m³/h
Airflow max duct-out
500m³/h
Airflow boost duct-out
640m³/h
Airflow min filtering
105m³/h
Airflow max filtering
400m³/h
Airflow Filtering
545m³/h
Suction speed
5.1m/s
Noise level Min-Max aspiration
34db(A) - 66db(A)
Noise level Min-Max filter
40db(A) - 72db(A)
Controls
9S+B Slider touch control
Absorption
175 W
Controls
9P+B Touch control direct slider
Voltage
220-240V / 380-415V 2N / 380-415V 3N
Power limitation
4,5kW
Number of bridge zones
2
Front left cooking zone
OCTA 22x18,4 cm - 2,1/3,7 kW
Right front cooking zone
OCTA 22x18,4 cm - 2,1/3,7 kW
Rear left cooking zone
OCTA 22x18,4 cm - 2,1/3,7 kW
Rear right cooking zone
OCTA 22x18,4 cm - 2,1/3,7 kW
|
Compare models
|
|
|
|
|---|---|---|---|
| Color |
|
|
|
| Weight (Kg) | 27.3 | 23.3 | 17.4 |
| Finishing | Black glass | Black glass | Black glass |
| Dimensions (cm) | 83x51,5x21 | 83x51,5x21 | 72x51,5x25 |
| Energy Class | A++ | A++ | A |
| Cut out | 80,7x49,2 cm | 80,7x49,2 cm | 56x49 cm |
| Total absorption | 7,4 kW | 7,4 kW | 7,4 kW |
| Airflow min duct-out | 130m³/h | 130m³/h | 220m³/h |
| Airflow max duct-out | 500m³/h | 500m³/h | 500m³/h |
| Airflow boost duct-out | 640m³/h | 640m³/h | 620m³/h |
| Airflow min filtering | 105m³/h | 105m³/h | 135m³/h |
| Airflow max filtering | 400m³/h | 400m³/h | 420m³/h |
| Airflow Filtering | 545m³/h | 545m³/h | 520m³/h |
| Suction speed | 5.1m/s | 5.1m/s | 5.1m/s |
| Noise level Min-Max aspiration | 34db(A) - 66db(A) | 34db(A) - 66db(A) | 43db(A) - 61db(A) |
| Noise level Min-Max filter | 40db(A) - 72db(A) | 40db(A) - 72db(A) | 44db(A) - 68db(A) |
| Controls | 9S+B Slider touch control | 9S+B Touch control | 4S+B Slider touch control |
| Absorption | 175 W | 175 W | 160 W |
| Controls | 9P+B Touch control direct slider | 9P+B Touch control | 9P+B slider touch control |
| Voltage | 220-240V / 380-415V 2N / 380-415V 3N | 220-240V / 380-415V 2N / 380-415V 3N | 220-240V / 380-415V 2N / 380-415V 3N |
| Power limitation | 4,5kW | 3,1kW - 4,5kW | 3,1kW - 4,5kW |
| Number of bridge zones | 2 | 1 (SX) | 1 (SX) |
| Front left cooking zone | OCTA 22x18,4 cm - 2,1/3,7 kW | OCTA 21x19,1 cm - 1,65/1,85 kW | OCTA 21x19,1 cm - 2,1/3 kW |
| Right front cooking zone | OCTA 22x18,4 cm - 2,1/3,7 kW | 16 cm - 1,2/1,4 kW | 16 cm - 1,2/1,4 kW |
| Rear left cooking zone | OCTA 22x18,4 cm - 2,1/3,7 kW | OCTA 21x19,1 cm - 2,1/3 kW | OCTA 21x19,1 cm - 1,65/1,85 kW |
| Rear right cooking zone | OCTA 22x18,4 cm - 2,1/3,7 kW | 20 cm - 2,3/3 kW | 20 cm - 2,3/3 kW |
