Synthesis
Elica Design Center
Color: Stainless steel
Size
Products for this combination
64214507A
Synthesis
Elica Design Center
Easy to Maintain
The perfect product with easy maintenance.
Proper maintenance and maximum hygiene, ensure a longer lifespan of the appliance. Our models have been conceived to make the replacement of grease filters and odour filters easier: all are removable, washable and replaceable.
Maintenance Alarm
Filters KO’d? You’ll be informed.
A warning light will switch on to signal out to you that grease filters and odour filters have reached their maximum saturation point. It’s time for you to wash or replace them.
Technical Specifications
Weight (Kg)
40
Finishing
Stainless Steel + Glass

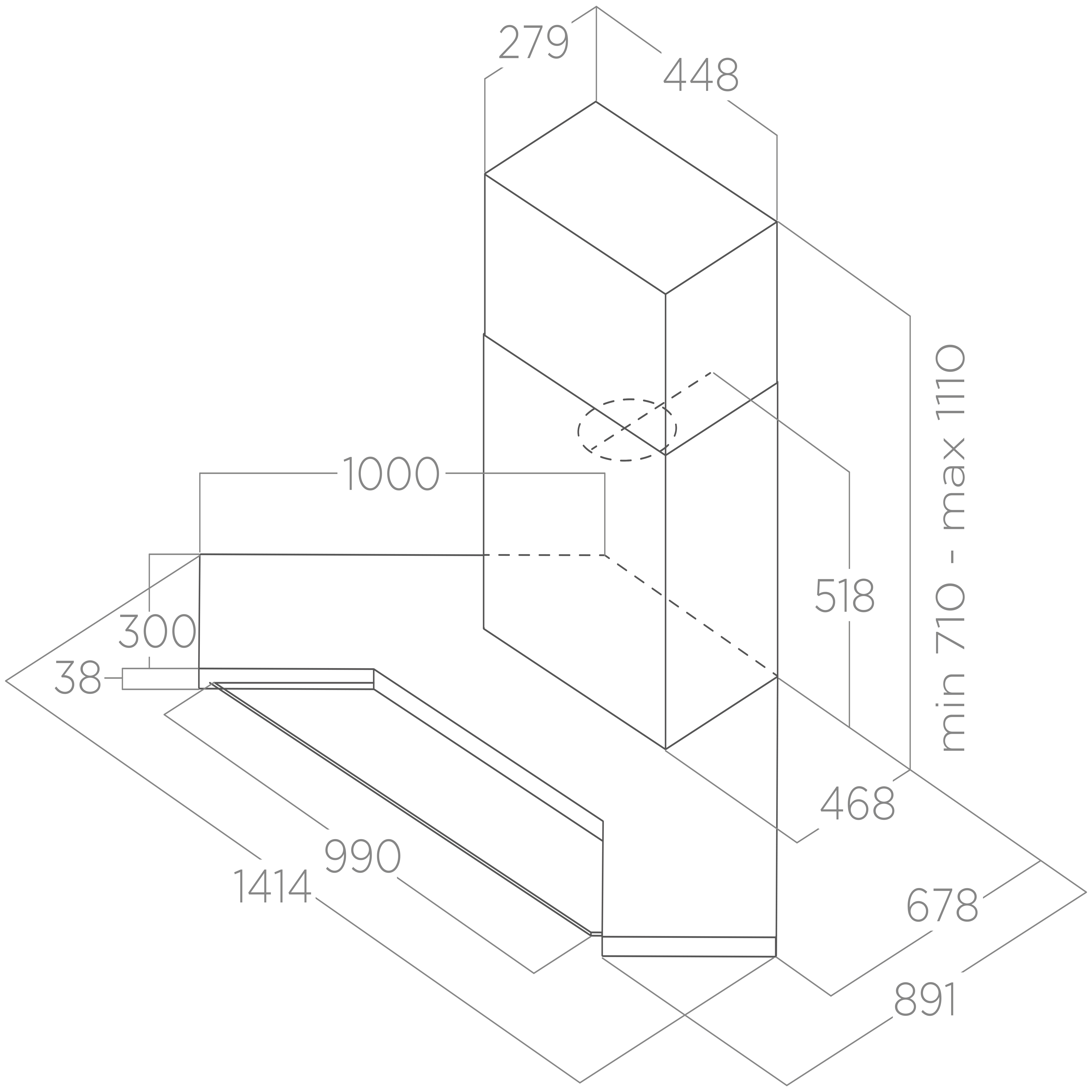

Dimensions (cm)
100
Energy Class
C
Minimum distance from wall unit induction/radiant hob
50cm
Minimum distance from wall unit gas hob
65cm
Duct Transition
150mm
Lighting
Led 4x2,5 W - 3500 K - 441 LUX
Absorption
185W
Airflow Min-Max
240m³/h - 559m³/h
Noise level Min-Max
44db(A) - 63db(A)
Controls
3S+B Control ball
Original accessories
Downloads
Download the technical sheet Synthesis
|
Compare models
|
|
|
|
|---|---|---|---|
| Color |
|
|
|
| Weight (Kg) | 40 |
16 19,1 15,7 18,8 |
Filtering: 13,9 Duct-out: 14 Duct-out: 15 Duct-out: 14,5 |
| Finishing | Stainless Steel + Glass |
Black Glass White Glass |
Filtering: Bianco opaco Filtering: Copper Matt Effect Filtering: Pewter effect Filtering: Cast Iron Effect Duct-out: Cast Iron Effect Duct-out: Bianco opaco Duct-out: Pewter effect Duct-out: Copper Matt Effect |
| Dimensions (cm) | 100 |
60 80 |
85 |
| Energy Class | C |
A+ A++ |
A |
| Minimum distance from wall unit induction/radiant hob | 50cm | 40cm | 60cm |
| Minimum distance from wall unit gas hob | 65cm | 50cm | 70cm |
| Duct Transition | 150mm | 150mm | 150mm |
| Lighting | Led 4x2,5 W - 3500 K - 441 LUX |
Strip Led 1x7 W - 3000 K - 365 LUX Strip Led 1x7 W - 3000 K - 372 LUX |
Strip Led 1x7 W - 4000 K - 197 LUX |
| Absorption | 185W | 177W | 207W |
| Airflow Min-Max | 240m³/h - 559m³/h |
200m³/h - 650m³/h 210m³/h - 690m³/h |
230m³/h - 580m³/h |
| Noise level Min-Max | 44db(A) - 63db(A) |
44db(A) - 58db(A) 46db(A) - 59db(A) |
46db(A) - 61db(A) |
| Controls | 3S+B Control ball | 3S+B Capacitive touch control | 3S+B Capacitive touch control |
