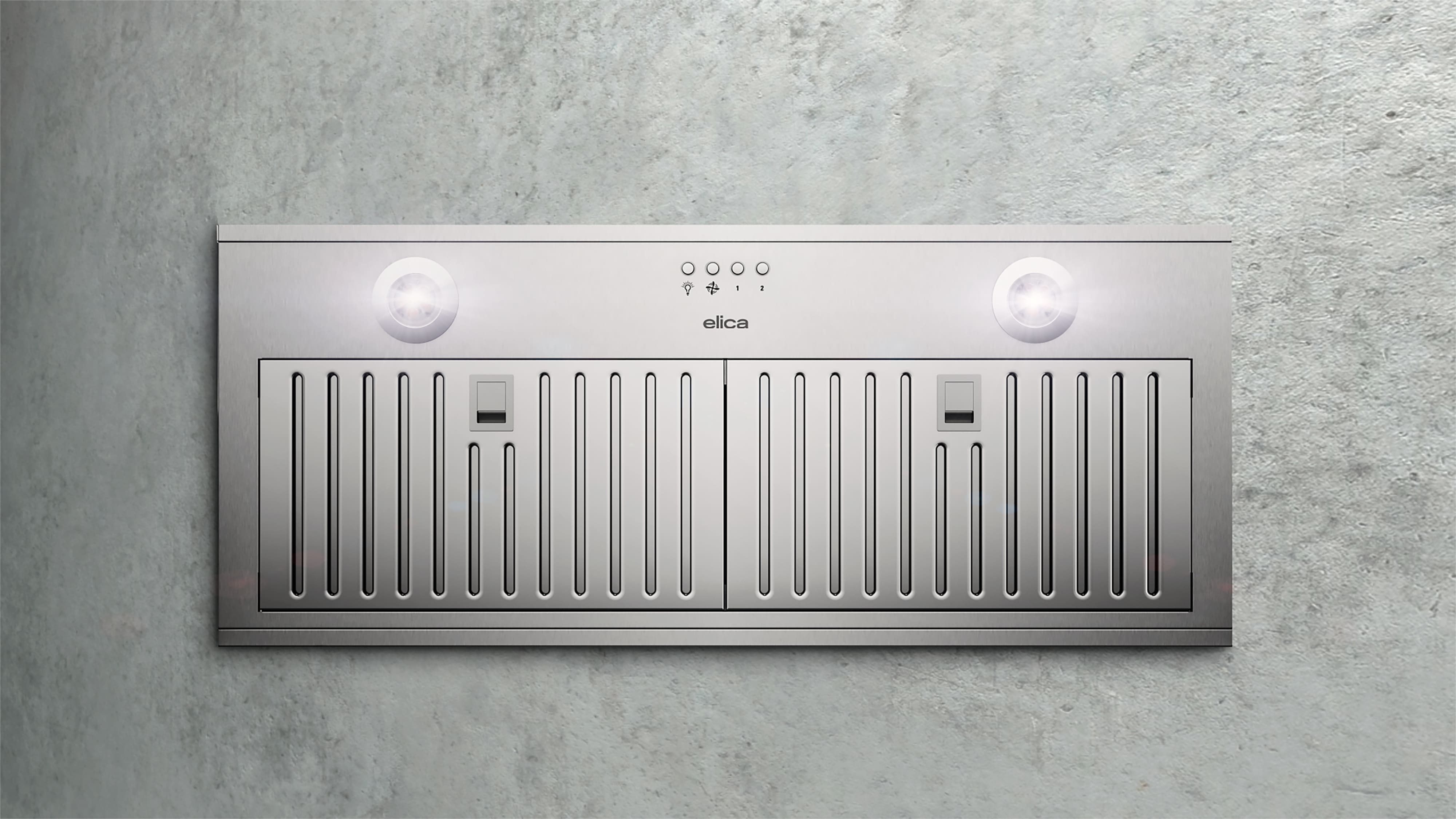

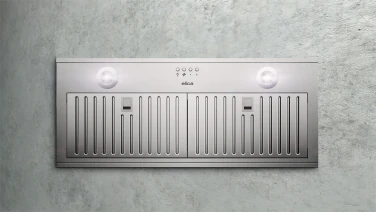

Palermo
With its slim depth of just 10 3/4 inches, Palermo offers the ideal solution for those seeking a discreet installation that seamlessly blends into any kitchen space.
Palermo
Technology and performance at your home.
Palermo provides top-grade performance, while its 28 1/4” & 34 1/5” width models with 10 3/4” depth enable it to be discreetly installed within standard 12” deep cabinetry, making it ideal for smaller kitchens or where the range hood needs to be out of sight. Palermo has a powerful 600 CFM blower to support most cooking needs. Stylish stainless steel push button controls operate a 3-speed blower and LED lightning. Easy maintenance, higher efficiency, and a cleaner kitchen are ensured by Elica’s Baffle Slot Filters, which capture a higher percentage of grease and hold larger volumes of grease than traditional baffle filters. Palermo is designed for both ducted-out and recirculating installations. Now, featuring a snap-on easy installation mechanism and exhaust outlets located at both the top and rear for enhanced functionality.
Led Light
Illuminate your culinary journey with LED brilliance.
An expected lifetime of over 20,000 hours represents the most remarkable advantage of LED light bulbs.
Top Performance
High fume capture, low noise – the perfect balance.
Excellent performance for models equipped with this plus. High fume capturing capacity with an average aspiration range of 600 CFM’s with low noise levels, 1.2 - 1.7 sones at working speed.
Hush System
Silent innovation, redefine tranquility.
An exclusive sound-deadening technology that effectively reduces sound levels by over 35%.
Semi Baffle Filters
Professional grade Stainless Steel Baffle Filters designed for high airflow cooking, trap volumes of grease which are collected in trays for easy removal and cleaning.
Technical Specifications
EPR628S2: 23,36lb
EPR628S2: 28 1/4" x 10 3/4” x 9 1/2”
EPR628S2: Round 6" (Top or Rear)
|
Compare models
|
|
|
|
|---|---|---|---|
| Color |
|
|
|
| Weight |
EPR628S1: 23,37lb EPR634SS: 20,06lb EPR628S2: 23,36lb EPR634S1: 20,06lb |
EAS428S1: 21,83lb EAS422SS: 18,96lb EAS422S1: 18,96lb EAS428S2: 21,83lb |
24,25lb |
| Finishing | Stainless steel |
EAS422SS: Stainless Steel EAS422S1: Stainless steel EAS428S2: Stainless steel |
EAS430S1: Stainless steel |
| Dimensions (inch) |
EPR628S1: 28" x 10 3/4” x 9 1/2” EPR634SS: 34" x 10 3/4” x 9 1/2” EPR628S2: 28 1/4" x 10 3/4” x 9 1/2” EPR634S1: 34 1/4" x 10 3/4” x 9 1/2” |
EAS428S1: 28 1/4" x 10 3/4” x 9 1/2” EAS422SS: 22 1/2" x 10 3/4” x 9 1/2” EAS422S1: 22 1/2" x 10 3/4” x 9 1/2” EAS428S2: 28 1/4" x 10 3/4” x 9 1/2” |
30" x 12” x 9 1/2” |
| Width (inch) |
EPR628S1: 28" EPR634SS: 34" EPR628S2: 28" EPR634S1: 34" |
EAS428S1: 28" EAS422SS: 22" EAS422S1: 22" EAS428S2: 28" |
30" |
| Duct Transition |
EPR628S1: Round 6" (Top Only) EPR634SS: Round 6" (Top Only) EPR628S2: Round 6" (Top or Rear) EPR634S1: Round 6" (Top or Rear) |
EAS428S1: Round 6" (Top Only) EAS422SS: Round 6" (Top Only) EAS422S1: Round 6" (Top or Rear) EAS428S2: Round 6" (Top or Rear) |
EAS430SS: Round 6" (Top Only) EAS430S1: Round 6" (Top or Rear) |
| Venting Type | Convertible with Kit |
EAS428S1: ASPIRANTE CONVERTIBILE IN FILTRANTE EAS422SS: ASPIRANTE CONVERTIBILE IN FILTRANTE EAS422S1: Convertible with Kit EAS428S2: Convertible with Kit |
EAS430SS: ASPIRANTE CONVERTIBILE IN FILTRANTE EAS430S1: Convertible with Kit |
| Series | TECHNE | COMFORT | COMFORT |
| Lighting | LED 2 x 2.1 ww 4000 KK |
EAS428S1: LED 3 x 2.1 ww 4000 KK EAS422SS: LED 2 x 2.1 ww 4000 KK EAS422S1: LED 2 x 2.1 ww 4000 KK EAS428S2: LED 2 x 2.1 ww 4000 KK |
LED 2 x 6.5 ww 3000 KK |
| Filters | Dishwasher-Safe, Stainless Steel Baffle Slot Filter | Dishwasher-Safe, Anodized Aluminum Mesh Filter | Dishwasher-safe, Aluminum Mesh + Stainless Steel Layer |
| Electrical | 120 V/60 Hz | 120 V/60 Hz | 120 V/60 Hz |
| Absorption |
EAS430SS: 265W |
||
| Airflow | 600CFM | 400CFM | 400CFM |
| Sones | 1.7 - 6.8 | 0.4 - 5.0 | 0.3 - 5.0 |
| Blower type | Interior Unit | Interior Unit | Interior Unit |
| Controls |
EAS428S1: 3S Soft light push button EAS422SS: 3S Soft light push button |
