ER30SRB161PR-L
16 CuFt capacity, practical organization, and a sleek panel-ready design for modern kitchens.
ER30SRB161PR-L
Bottom Mount
Upgrade your kitchen with the perfect blend of style, functionality, and innovation. Introducing our 30″ Panel Ready Refrigerator with Bottom Mount Freezer boasting a convinient 16 CuFt Capacity.
Quiet Operation
Silent strength for perfect preservation.
A speed-control motor reduces exterior sound levels while offering high ventilation performance to keep the interior temperature and dampening any possible vibration that could disturb the preservation of the wine or beverages.
Eco Mode
Mantain temperature while saving energy
Sustainable and environmentally friendly: Eco-Mode will maintain optimum interior temperature while saving energy consumption by turning the lights OFF.
Panel Ready
Achieve a perfect fusion of style and function.

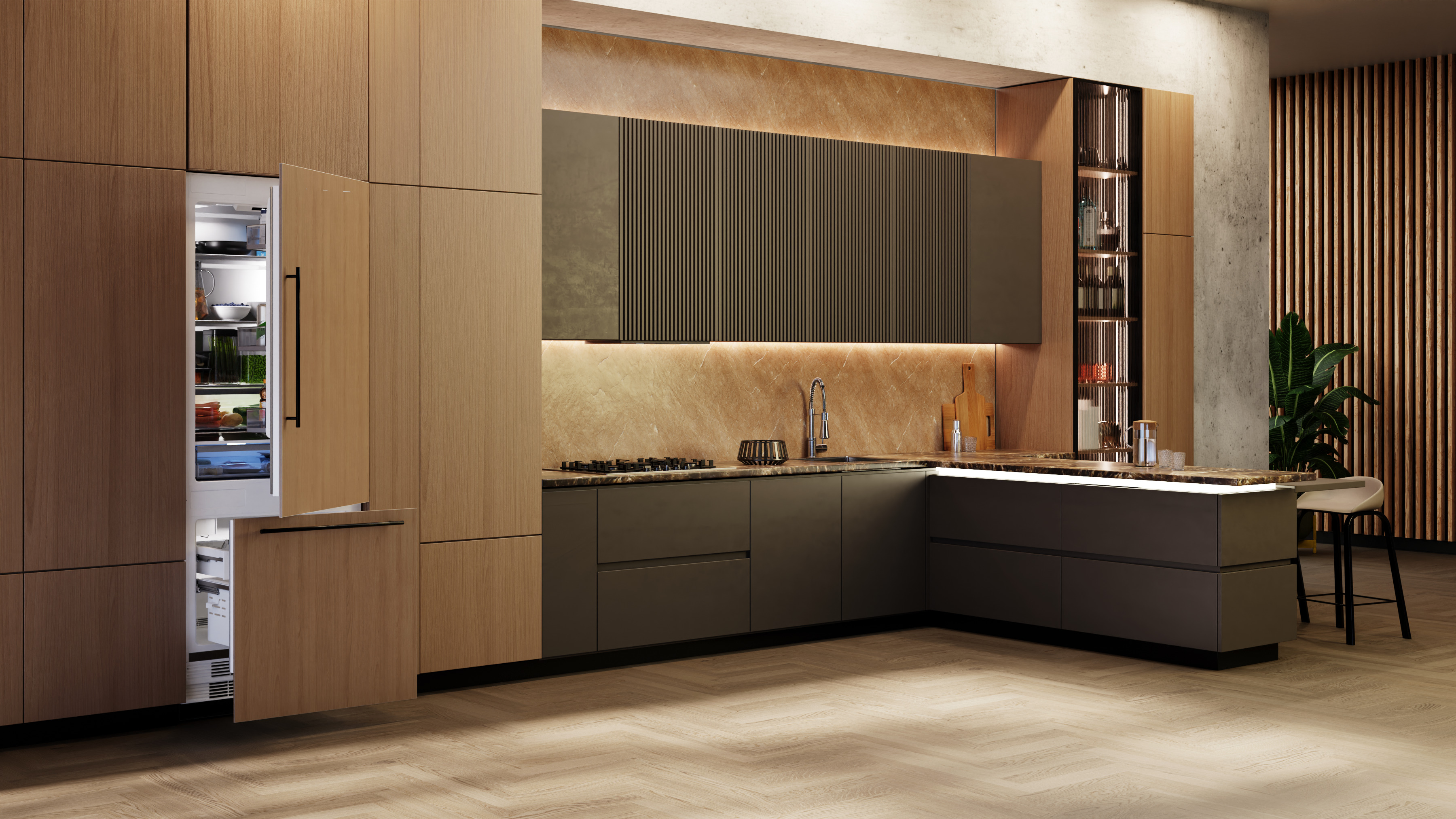

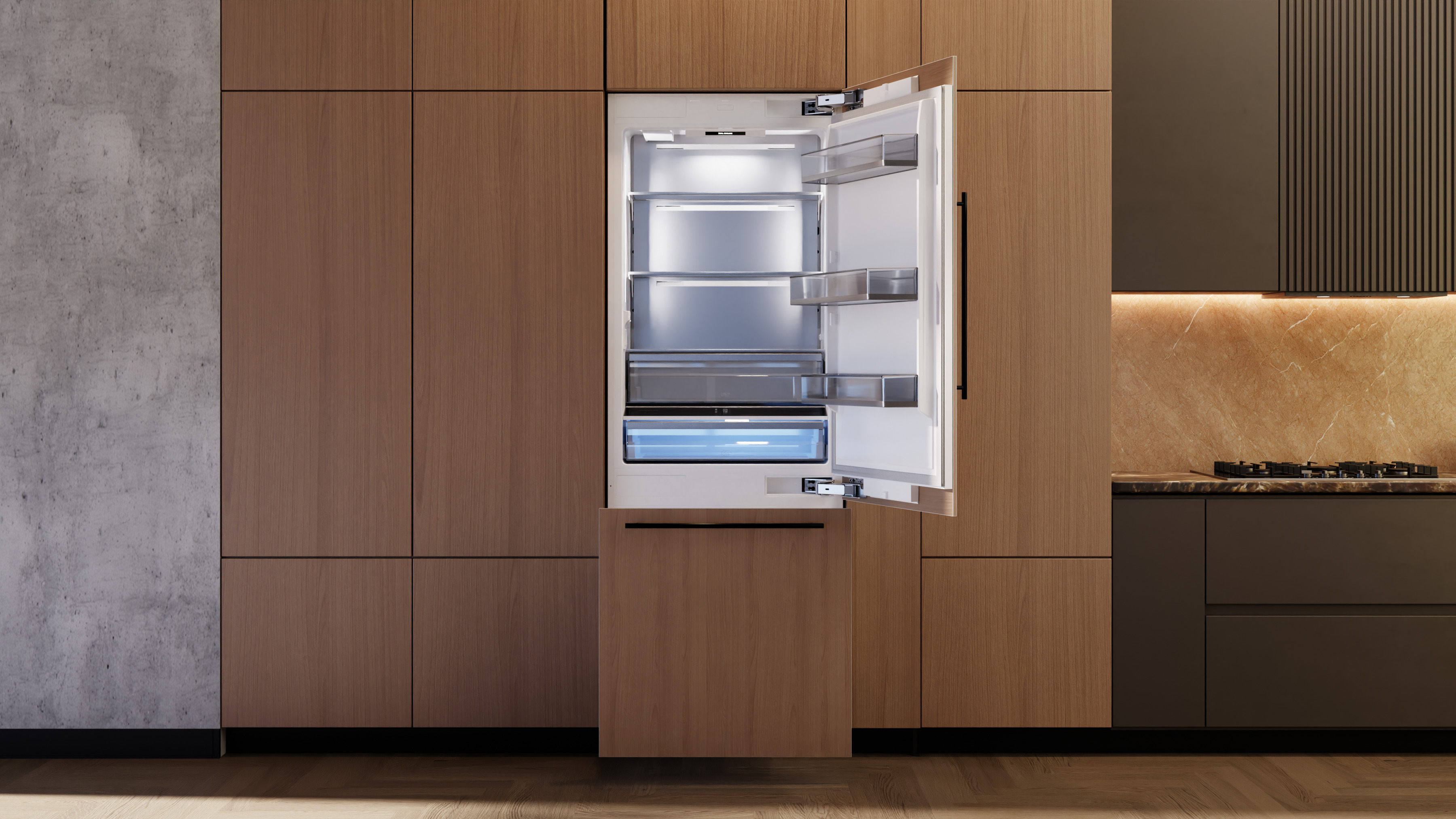

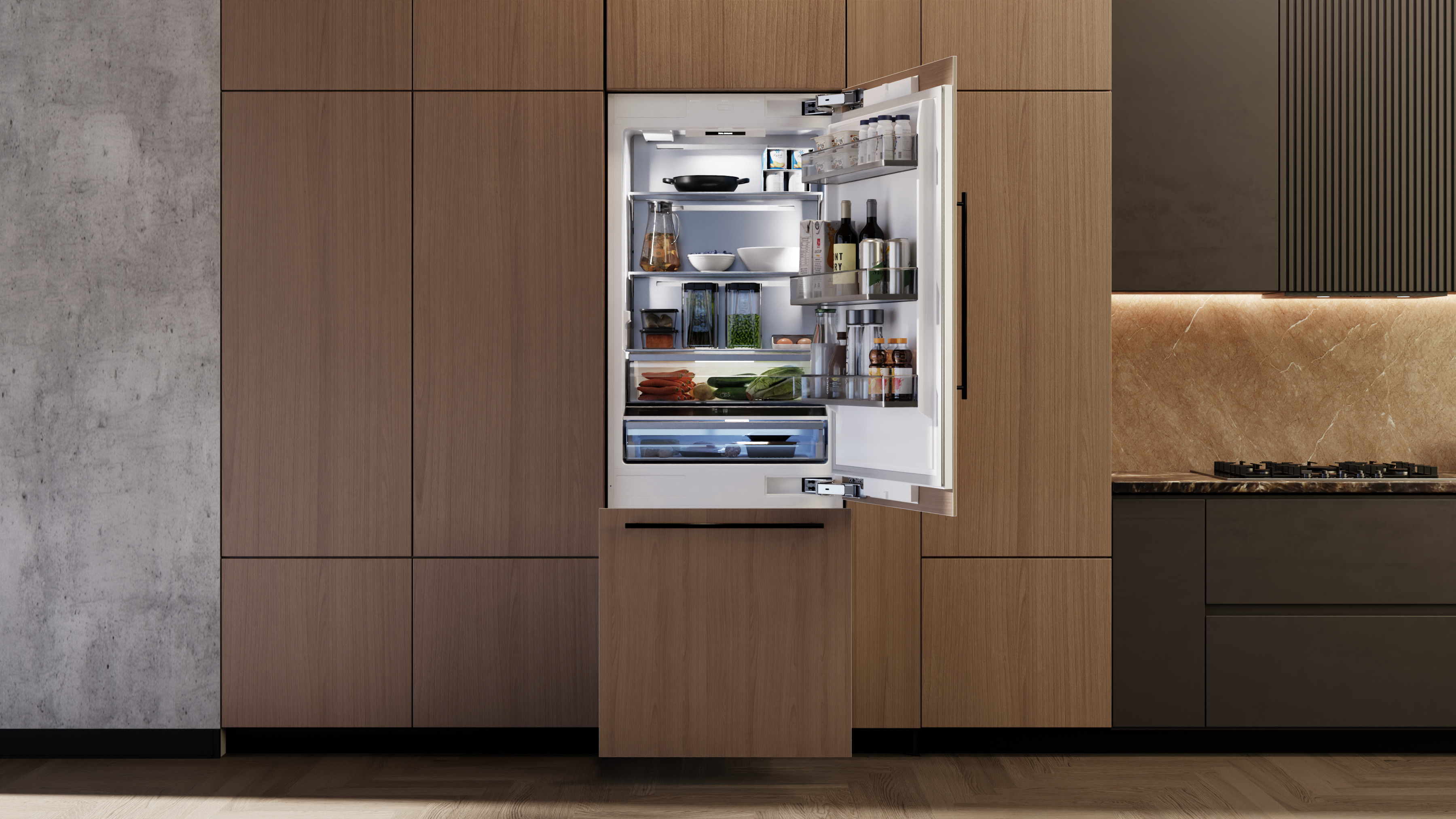

Seamlessly integrate your Elica product into your kitchen design by using custom panels. Elica's Panel Ready solution allows an easy and fast installation, making it a perfect choice for those who value functionality and aesthetics.
Smart Storage
Redefining space efficiency in modern kitchens.

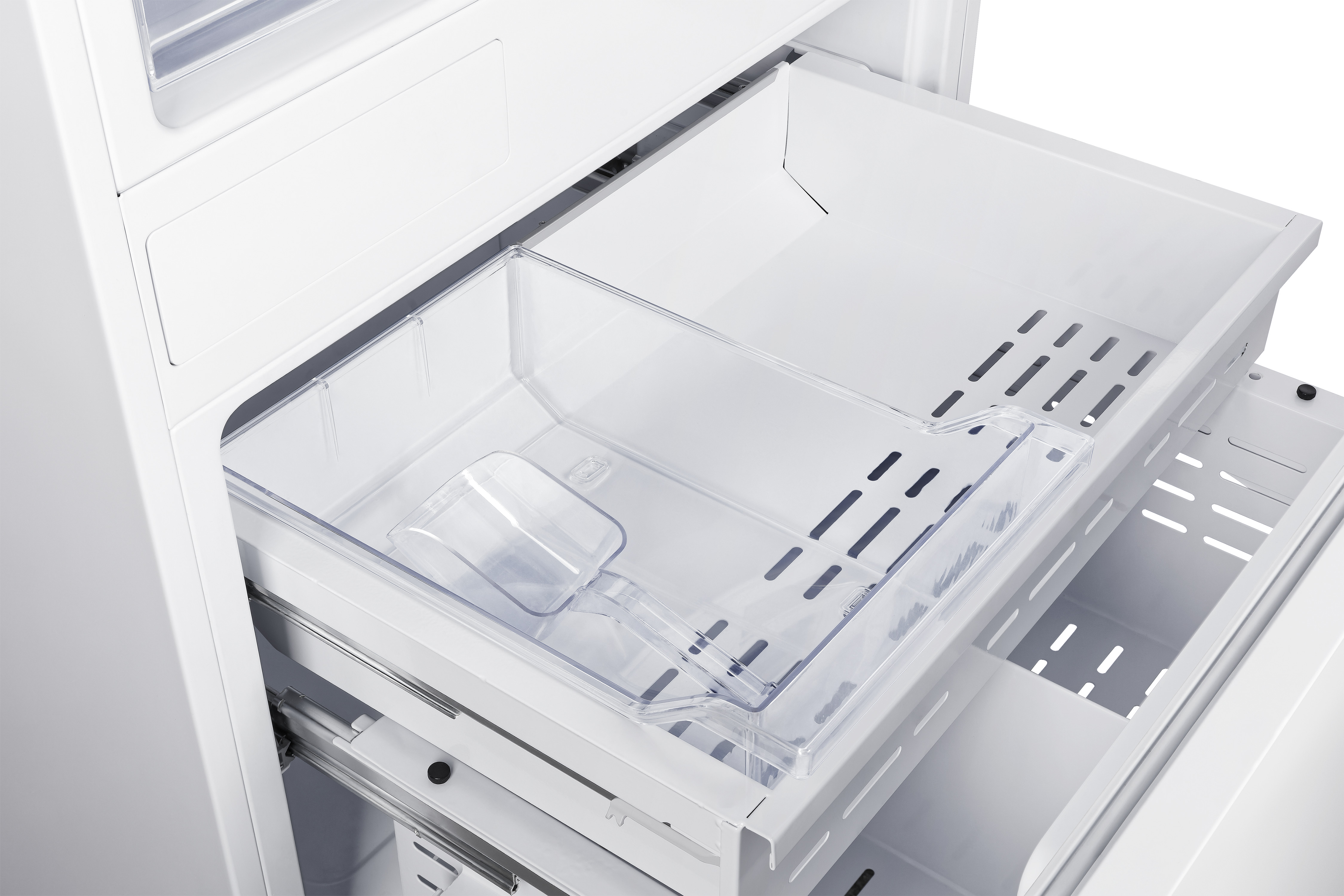

This feature allows easy accommodation of larger items while ensuring their security, ideal for any modern kitchen. The lower drawer is efficiently designed to maximize storage usage.
Technical Specifications
Downloads
|
Compare models
|
|
|
|
|---|---|---|---|
| Color |
|
|
|
| Finishing | Panel Ready | Panel Ready | Panel Ready |
| Dimensions (inch) | 29 11/16”× 23 5/16”× 83 1/4” | 29 11/16”× 23 5/16”× 83 1/4” | 35 3/4”× 23 5/16”× 83 9/16” |
| Series | DOLOMITE | DOLOMITE | DOLOMITE |
| Lighting | LED 6500K 300 lumens, 100 lumen for Freezer | LED 6500K 300 lumen | LED 6500K 300 lumens, 100 lumen for Freezer |
| Electrical | 115V/ 220-240 V | 115V/ 220-240 V | 115V/ 220-240 V |
| Amperage | 2.6A | 2.0A | 3.0A |
| Hertz | 50-60 | 50-60 | 50-60 |
| Watt | 452 W | 551 W | 551 W |
| Defrost Type | No Frost | No Frost | No Frost |
| Power Cord | Power Cord | Power Cord | Power Cord |
| Adjustbale Shelves | YES | YES | YES |
| Removable Shelves | YES | YES | YES |
| Number of Shelves | 3 | 3 | 3 |
| Drawers | Chiller Adjustable Temp Drawer | 3 + 1 Chiller Adjustable Temp Drawer | Chiller Adjustable Temp Drawer |
| Shelf material | Spill-Proof Glass | Spill-Proof Glass | Spill-Proof Glass |
| Door Storage | 3 Height adjustable Bins | 3 Height adjustable Bins | 3 Height adjustable Bins |
| Storage Features | 3 glass shelves and 3 soft close drawers | 3 glass shelves and 3 soft close drawers | 3 glass shelves and soft close pantry drawer |
| Reversible Door | YES | YES | YES |
| Door Swing | Reversible | Reversible | Reversible |
| Solid Doors | Panel ready/Stainless Steel Kit | Panel ready/Stainless Steel Kit | Panel ready/Stainless Steel Kit |
| Door Alarm | YES | YES | YES |
| Sabbath Mode | YES | YES | YES |
| Temperature min | 35°F | 35°F | 35°F |
| Temperature max | 46°F | 46°F | 46°F |
| Temperature display | YES | YES | YES |
| Chiller drawer temp | 30°F (-1°C) to 41°F(5°C) | 30°F (-1°C) to 41°F(5°C) | 30°F to 41° |
| Freezer temp | +5°F (-15°C)to-11°F(-24°C) | +5°F to -11°F | +5°F to -11°F |
| Cuft | 16 cuft | 16 cuft | 19.8 cuft |
| Fridge Capacity | 4.5 cuft | 11.5 cuft | 14.2 cuft |
| Freezer Capacity | 11.5 cuft | 5.6 cuft | |
| Ice Maker | YES | YES | YES |
| Height | 83 1/4” | 83 1/4” | 83 1/4” |
| Depth | 23 5/16” | 23 5/16” | 23 5/16” |
| Counter Depth | 23 5/16” | 23 5/16” | 23 5/16” |
| Depth with door open | 61” | 55 5/16” | 61” |
| Depth withhandles | 26" | 27 5/4” | 26" |
| Depth withoutdoor | 22 7/32” | 22 19/32” | 22 7/32” |
| Depth without handles | 24 1/4” | 23 5/4” | 24 1/4” |
| Leveling legs | YES | YES | YES |
| Cutout | 30” x 25” x 84” | 30” x 25” x 84” | 36 ” x 25” x 84” |
| Tubular handle stainless steel kit | ETHKCSS | ETHKBSS | ETHKBSS |
| Joining kit | ECJKCXX | ECJKCXX | ECJKCXX |
| Carbon filter replacement | L00114-1 | L00114-1 | L00114-1 |
| Water filtercover | ERWFC | ERWFC | ERWFC |
| Handle | EPHKBSS | ||
| Stainless steel panel kit | EPNKB30SS |
