ER30SRB161PR-R

30" Built-In Bottom Mount, Panel Ready Refrigeration (Right Door)
ColorCustomized
Size
Products for this combination
ER30SRB161PR-R

ER30SRB161PR-R

30" Built-In Bottom Mount, Panel Ready Refrigeration (Right Door)

Quiet Operation

Silent strength for perfect preservation.
A speed-control motor reduces exterior sound levels while offering high ventilation performance to keep the interior temperature and dampening any possible vibration that could disturb the preservation of the wine or beverages.

Eco Mode

Mantain temperature while saving energy
Sustainable and environmentally friendly: Eco-Mode will maintain optimum interior temperature while saving energy consumption by turning the lights OFF.

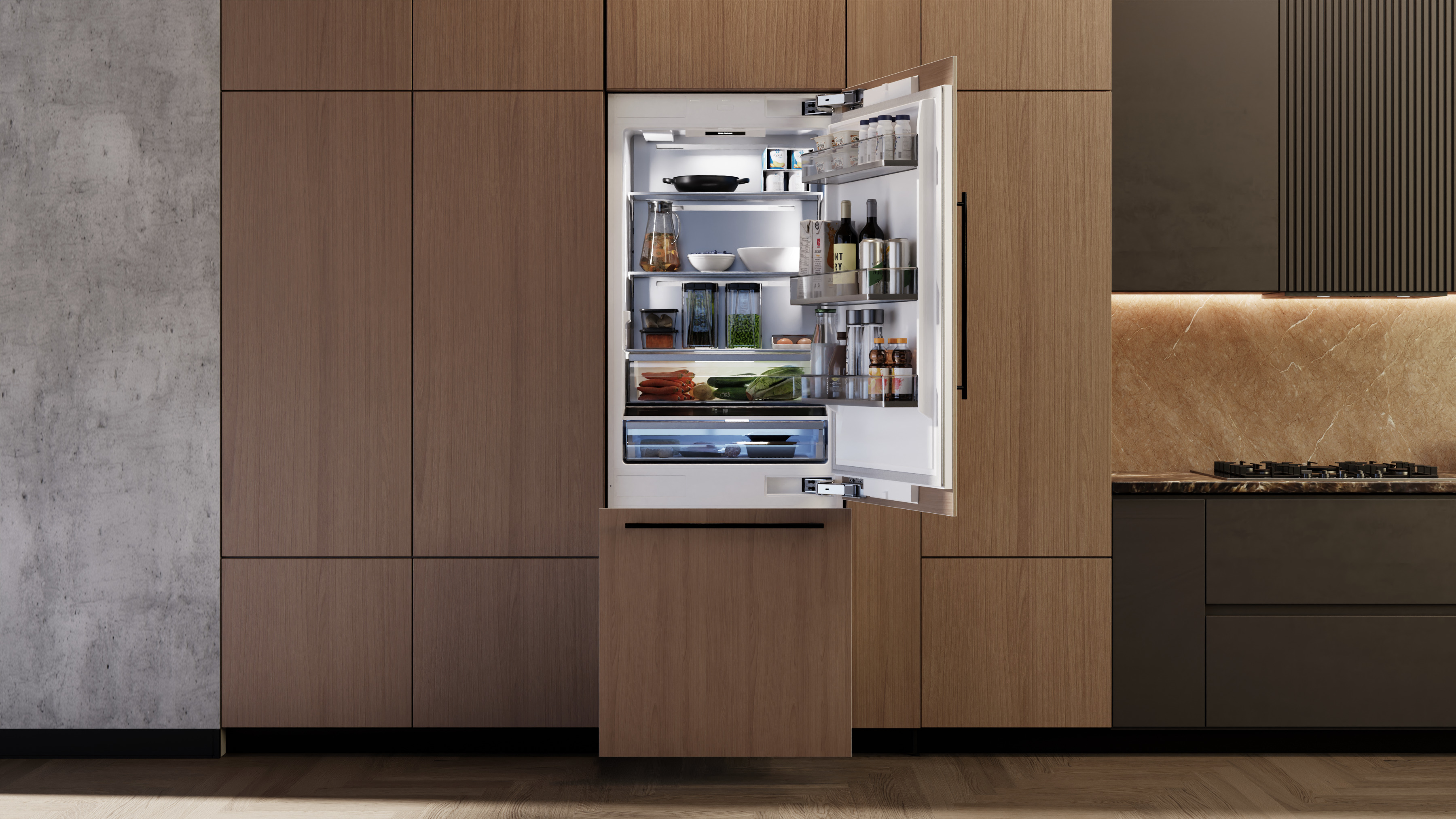

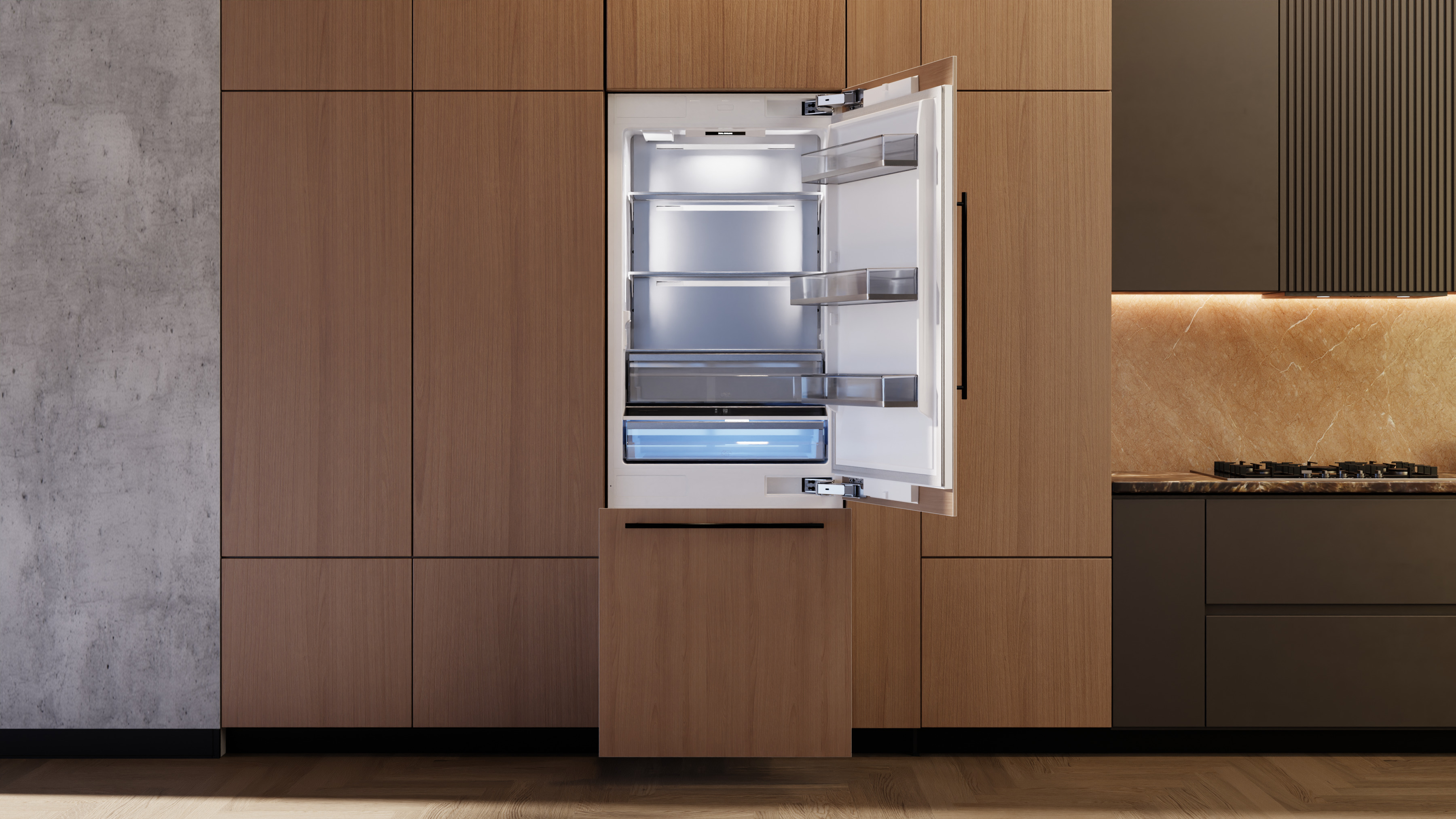

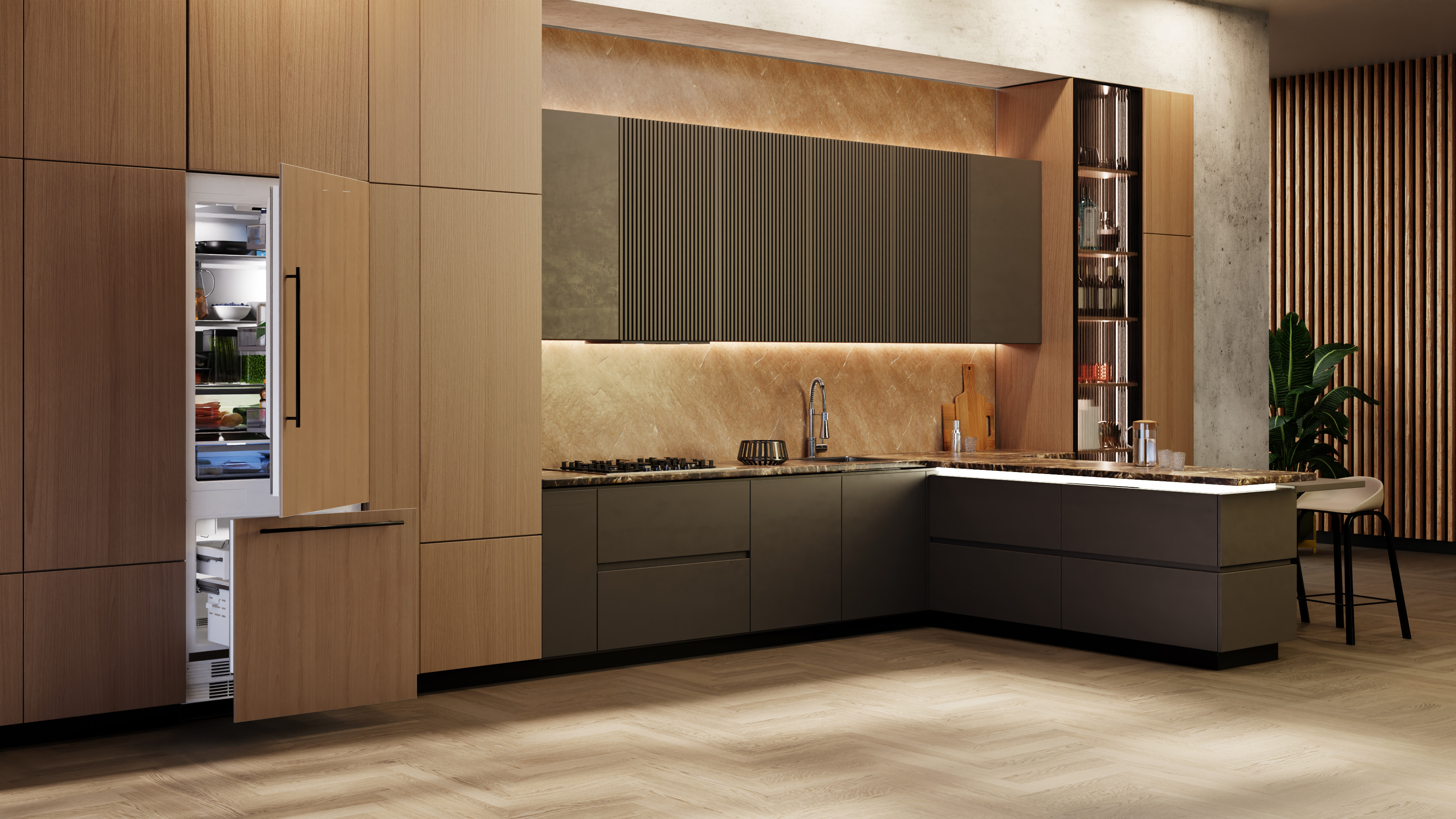

Panel Ready

Achieve a perfect fusion of style and function.
Seamlessly integrate your Elica product into your kitchen design by using custom panels. Elica's Panel Ready solution allows an easy and fast installation, making it a perfect choice for those who value functionality and aesthetics.

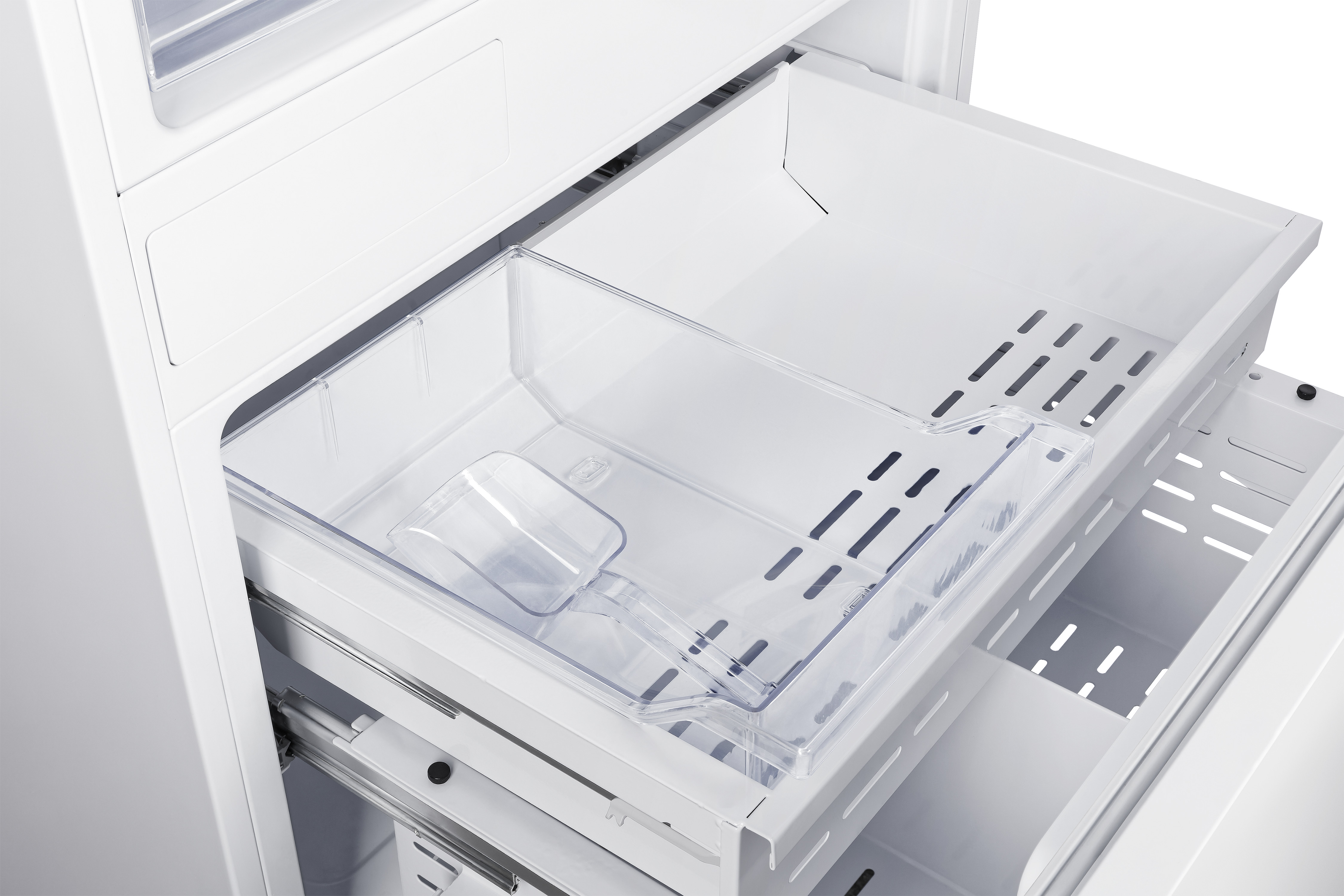

Smart Storage

Redefining space efficiency in modern kitchens.
This feature allows easy accommodation of larger items while ensuring their security, ideal for any modern kitchen. The lower drawer is efficiently designed to maximize storage usage.

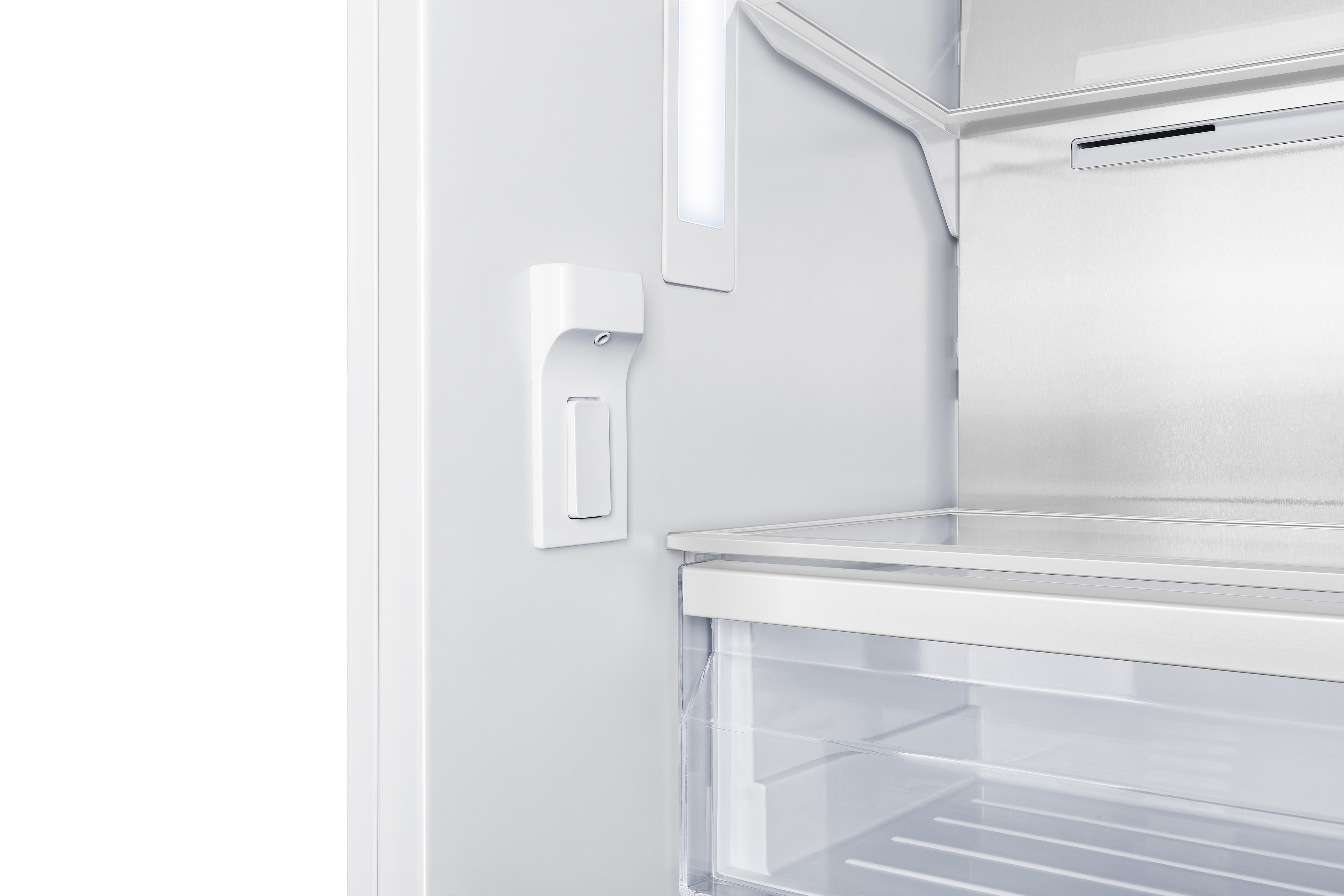

Articulated Hinge

Technical Specifications

Dimensions (inch)
29 11/16”× 23 5/16”× 83 1/4”
Series
DOLOMITE
Electrical
115V/ 220-240 V

Amperage
2.6A
Hertz
50-60
Watt
452 W
Defrost Type
No Frost
Power Cord
Power Cord
Adjustbale Shelves
YES
Removable Shelves
YES
Number of Shelves
3
Drawers
Humidity control Drawer + Chiller Adjustable Temp Drawer
Shelf material
Spill-Proof Glass
Door Storage
3 Height adjustable Bins
Storage Features
3 glass shelves and 3 soft close drawers
Reversible Door
YES
Door Swing
Reversible
Solid Doors
Panel ready/Stainless Steel Kit
Door Alarm
YES
Sabbath Mode
YES
Temperature min
35°F
Temperature max
46°F

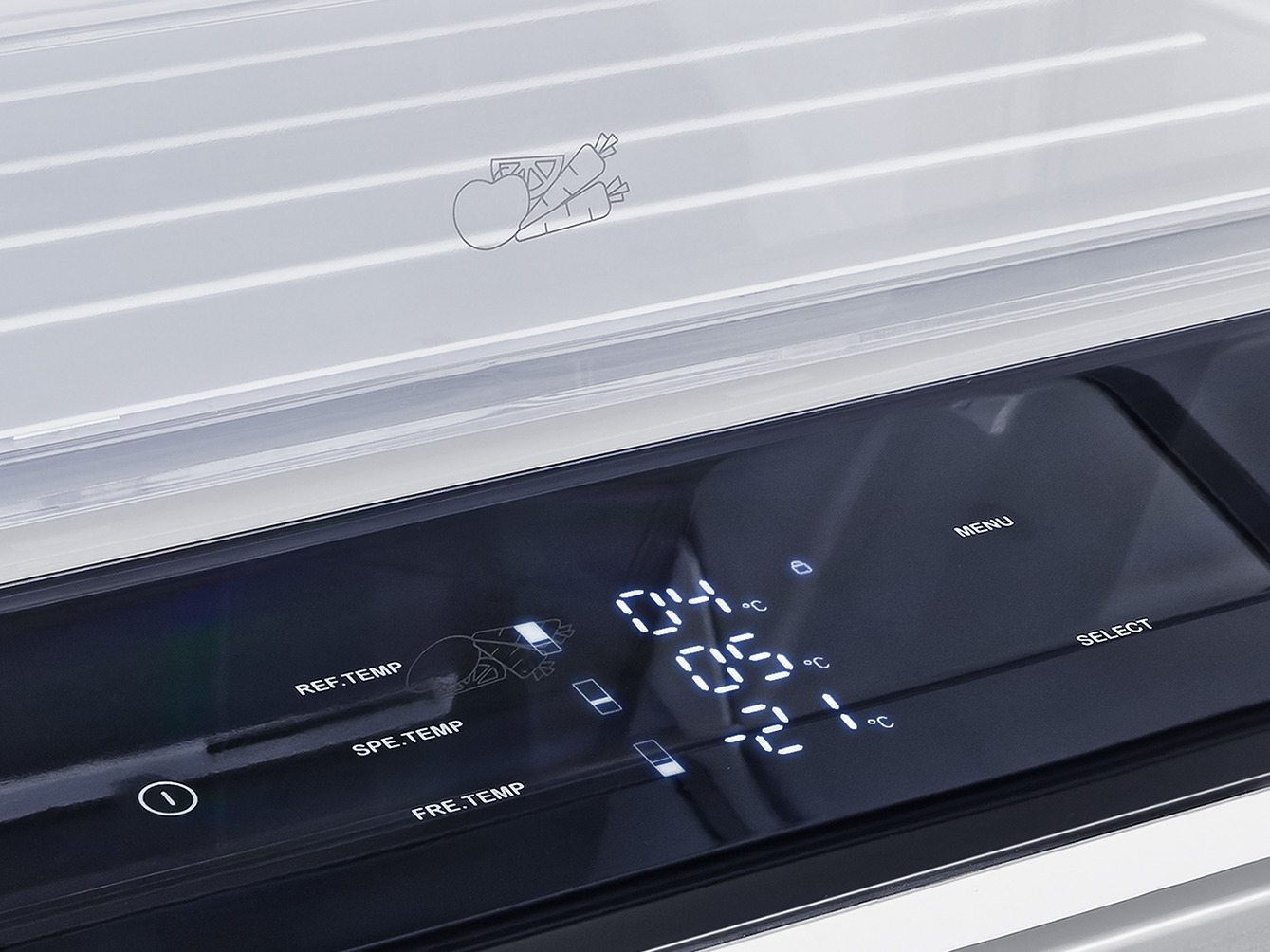

Temperature display
YES
Chiller drawer temp
30°F (-1°C) to 41°F(5°C)
Freezer temp
+5°F (-15°C)to-11°F(-24°C)
Cuft
16 cuft
Fridge Capacity
4.5 cuft
Freezer Capacity
11.5 cuft
Ice Maker
YES
Height
83 1/4”
Depth
23 5/16”
Counter Depth
23 5/16”
Depth with door open
61”
Depth withhandles
26"
Depth withoutdoor
22 7/32”
Depth without handles
24 1/4”
Leveling legs
YES
Cutout
30” x 25” x 84”

Tubular handle stainless steel kit
ETHKCSS
Joining kit
ECJKCXX
Carbon filter replacement
L00114-1
Water filtercover
ERWFC

Downloads


Technical documentation will soon be available for download.
