NikolaTesla Switch Lux
Design Fabrizio Crisà
Color: black matt
Size
Products for this combination
PRF0202495
NikolaTesla Switch Lux
Design Fabrizio Crisà
Performance without compromise.
This appliance conceals an extraordinary extraction system: the aesthetic result is remarkable, as are the technologies and functions that distinguish it. The smooth surface makes it easy to move cookware and extremely simple to clean. The extraction level is automatically adjusted according to vapours and odours, contributing to better air quality. The anti-odour, anti-grease and anti-humidity filters have a lifespan of 3 years. Energy class A++. The control interface is intuitive and easy to use; the filters are easily removable, and a valve allows spilled liquids to be rinsed away.
Melting Mode
Everything melts for the better.
Tired of melting the butter and chocolate and having to stir them continually or burning them? The secret? Keeping the temperature always below 50°, this will never happen again.
Warming Mode
Slow cooking, delicious results.
Conceived for slower cooking preparations, ideal when warming up milk or broths, for the preparation of custards or sauces preventing them to overheat and keeping your prepared food warm.
Simmering Mode
Enough of boiling over!
You can simmer your food for longer. No more excessive boiling or spilling over from your pots. No more tough food or burnt pans or saucepans!
Fast Boiling
For those who lack time.
It is the solution for quick recipes. Just with a gesture, set the maximum power for 10 minutes and voilà, boiling point will be reached in 30% less time than it normally does.
Technical Specifications
Weight (Kg)
24,5
Finishing
Matt black glass

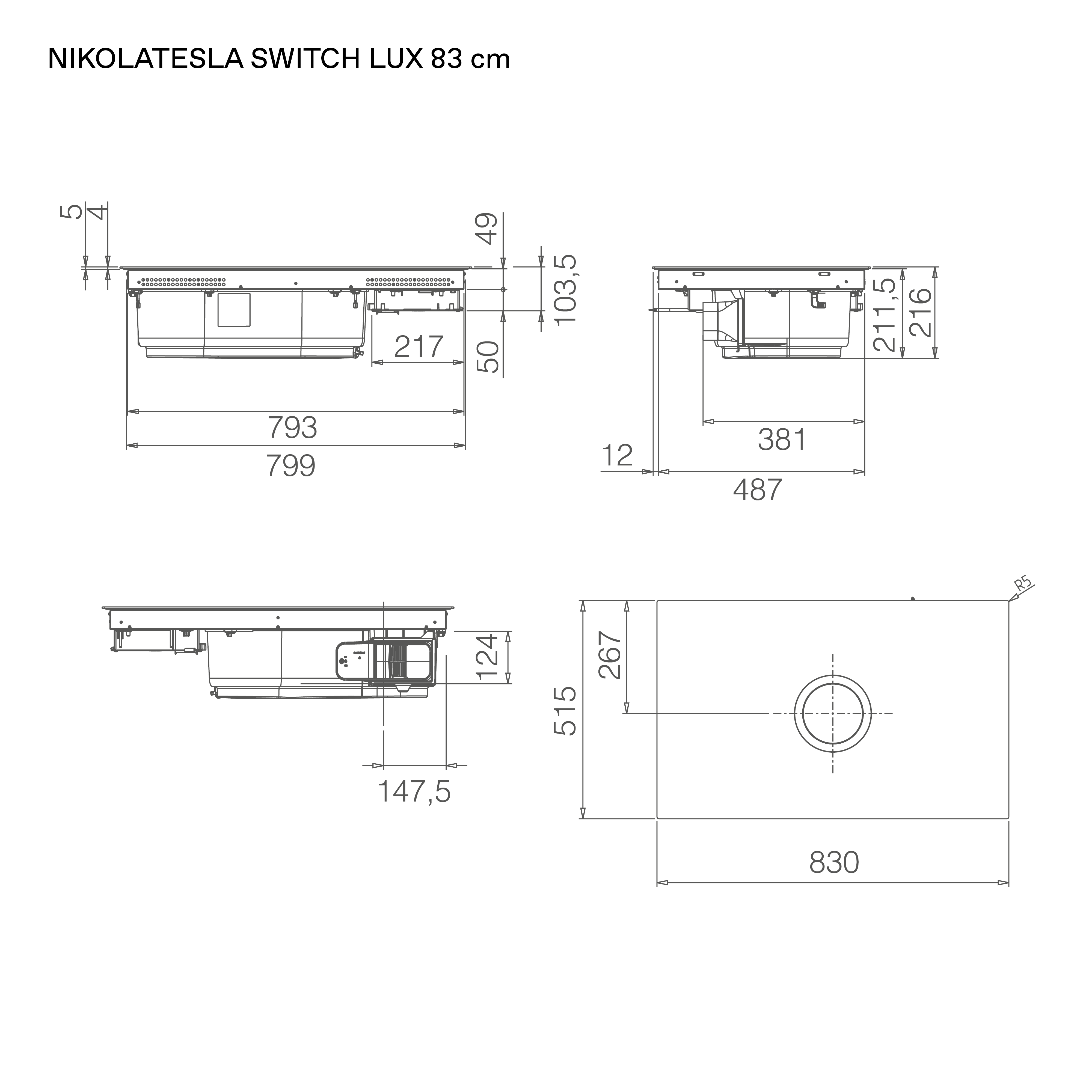

Dimensions (cm)
83x51,5x21
Energy Class
A++

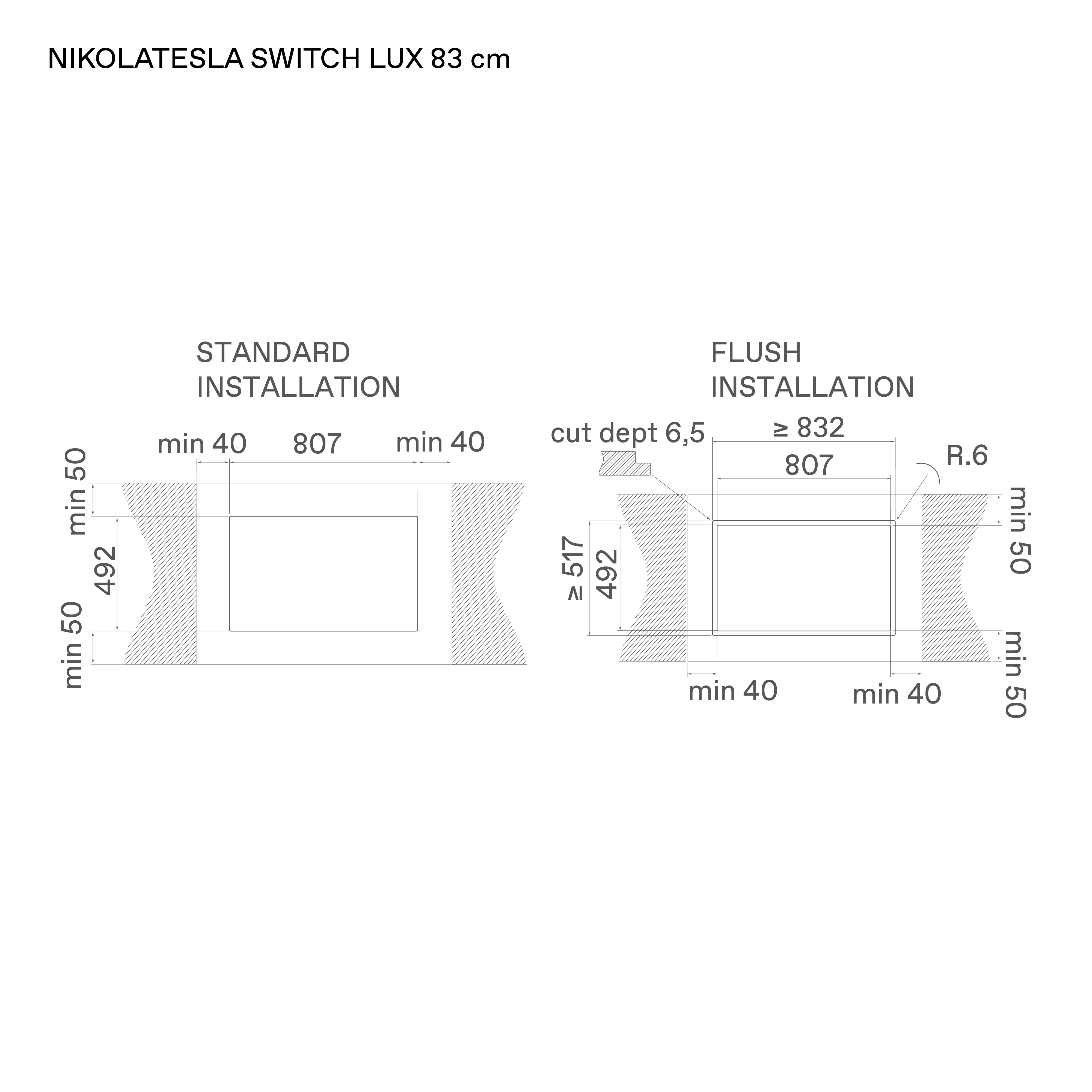

Cut out
80,7x49,2 cm
Total absorption
7,4 kW
Airflow min duct-out
130m³/h
Airflow max duct-out
525m³/h
Airflow boost duct-out
620m³/h
Airflow min filtering
130m³/h
Airflow max filtering
580m³/h
Airflow Filtering
600m³/h
Suction speed
5,1m/s
Noise level Min-Max aspiration
34db(A) - 67db(A)
Noise level Min-Max filter
38db(A) - 71db(A)
Controls
9S+B Slider touch control
Absorption
175 W
Controls
9P+B Touch control direct slider
Voltage
220-240V / 380-415V 2N / 380-415V 3N
Power limitation
4,5kW
Number of bridge zones
2
Front left cooking zone
OCTA 22x18,4 cm - 2,1/3,7 kW
Right front cooking zone
OCTA 22x18,4 cm - 2,1/3,7 kW
Rear left cooking zone
OCTA 22x18,4 cm - 2,1/3,7 kW
Rear right cooking zone
OCTA 22x18,4 cm - 2,1/3,7 kW
Original accessories
DUCT-OUT INSTALLATION KIT for NikolaTesla Evo – KIT0199839
NikolaTesla First Installation Kits
€ 79.00
Original Elica Plinth In filtering installation kit for NikolaTesla Evo – KIT0199835
NikolaTesla First Installation Kits
€ 209.00
FILTERING INSTALLATION KIT Plinth Out for NikolaTesla Evo – KIT0199836
NikolaTesla First Installation Kits
€ 219.00
FILTERING INSTALLATION KIT Back Outlet for NikolaTesla Evo – KIT0199838
NikolaTesla First Installation Kits
€ 169.00
Downloads
Download the technical sheet NikolaTesla Switch Lux
|
Compare models
|
|
|
|
|---|---|---|---|
| Color |
|
|
|
| Weight (Kg) |
Duct-out: 21,4 Duct-out: 24,5 |
Duct-out: 15,6 |
|
| Finishing |
Duct-out: Black glass & stainless steel Duct-out: Matt black glass |
Matt black glass |
Duct-out: Black glass Duct-out: Matt black glass |
| Dimensions (cm) | 83x51,5x21 |
Duct-out: 60x51,5x19,4 Duct-out: 72x51,5x19,4 |
Duct-out: 60x51,5x19,4 Duct-out: 78x51,5x19,4 |
| Energy Class | A++ | A+ | A+ |
| Cut out | 80,7x49,2 cm | 56x49 cm |
Duct-out: 56x49 cm Duct-out: 75x49 cm |
| Total absorption | 7,4 kW | 7,5 kW | 7,5 kW |
| Airflow min duct-out | 130m³/h | 155m³/h | 155m³/h |
| Airflow max duct-out | 525m³/h | 500m³/h | 500m³/h |
| Airflow boost duct-out | 620m³/h | 620m³/h | 620m³/h |
| Airflow min filtering | 130m³/h | 155m³/h | 155m³/h |
| Airflow max filtering | 580m³/h | 465m³/h | 465m³/h |
| Airflow Filtering | 600m³/h | 580m³/h | 580m³/h |
| Suction speed | 5,1m/s | ||
| Noise level Min-Max aspiration | 34db(A) - 67db(A) | 42db(A) - 69db(A) | 42db(A) - 69db(A) |
| Noise level Min-Max filter | 38db(A) - 71db(A) | 51db(A) - 75db(A) | 51db(A) - 75db(A) |
| Controls | 9S+B Slider touch control | 4S+B Slider touch control | 4S+B Slider touch control |
| Absorption | 175 W | 350 W | 350 W |
| Controls | 9P+B Touch control direct slider | 9P+B slider touch control | 9P+B slider touch control |
| Voltage | 220-240V / 380-415V 2N / 380-415V 3N | 220-240V / 380-415V 2N / 380-415V 3N | 220-240V / 380-415V 2N / 380-415V 3N |
| Power limitation | 4,5kW | ||
| Number of bridge zones | 2 | 1 (SX) | No |
| Front left cooking zone | OCTA 22x18,4 cm - 2,1/3,7 kW | OCTA 21x19,1 cm - 2,1/3 kW | Ø 16 cm - 1,2/1,6 kW |
| Right front cooking zone | OCTA 22x18,4 cm - 2,1/3,7 kW | Ø 16 cm - 1,2/1,4 kW | Ø 16 cm - 1,2/1,6 kW |
| Rear left cooking zone | OCTA 22x18,4 cm - 2,1/3,7 kW | OCTA 21x19,1 cm - 1,65/1,85 kW | Ø 21 cm - 1,5/2 kW |
| Rear right cooking zone | OCTA 22x18,4 cm - 2,1/3,7 kW | Ø 20 cm - 2,3/3 kW | Ø 21 cm - 1,5/2 kW |
