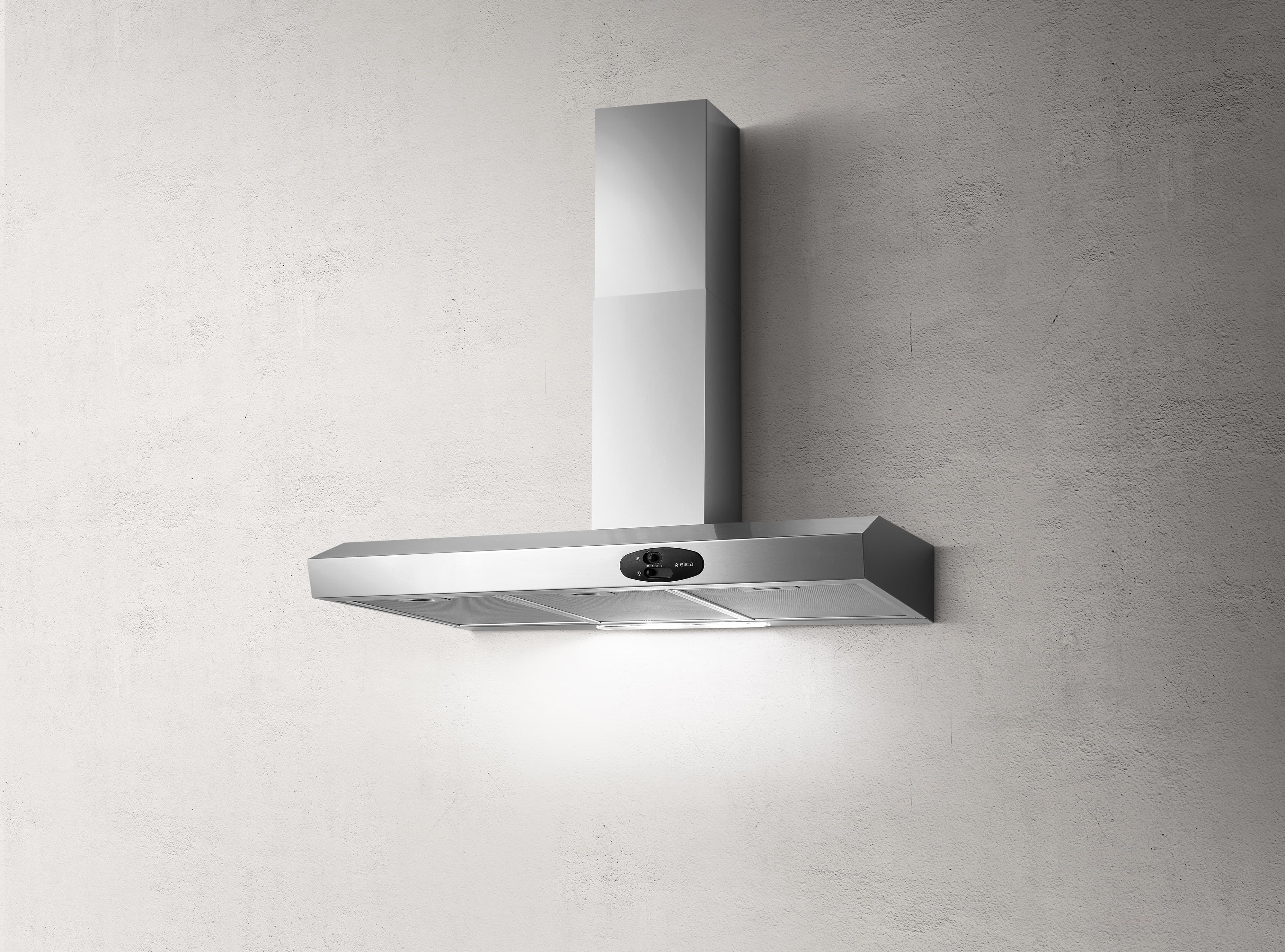

Vega
Elica Design Center
Color: Stainless steel
Size
Products for this combination
56111002C
Vega
Elica Design Center
Technical Specifications
Weight (Kg)
7,8
Finishing
Stainless Steel
Dimensions (cm)
60
Energy Class
D
Minimum distance from wall unit induction/radiant hob
50cm
Minimum distance from wall unit gas hob
65cm
Duct Transition
120mm
Lighting
Led 2x3 W - 2700 K - 121 LUX
Absorption
101W
Airflow Min-Max
125m³/h - 265m³/h
Noise level Min-Max
50db(A) - 64db(A)
Controls
3S Mechanical slider
Downloads
Download the technical sheet Vega
|
Compare models
|
|
|
|
|---|---|---|---|
| Color |
|
|
|
| Weight (Kg) |
7,8 8,85 8,75 |
16,36 20,3 |
34,7 61,6 |
| Finishing |
Stainless Steel Black Grey |
Vetro Nero Opaco | Nero opaco |
| Dimensions (cm) | 60 |
60 90 |
80 160 |
| Energy Class | D | A | |
| Minimum distance from wall unit induction/radiant hob | 50cm | 45cm | 55cm |
| Minimum distance from wall unit gas hob | 65cm | 55cm | 65cm |
| Duct Transition | 120mm | 150mm | |
| Lighting | Led 2x3 W - 2700 K - 121 LUX | Led 2x2,5 W - 3500 K - 381 LUX |
Led Panel 1x21 W - 2700 K - 5200 K - 758 LUX Led Panel 2x21 W - 2700 K - 5200 K - 844 LUX |
| Absorption | 101W | 205W |
261W 282W |
| Airflow Min-Max | 125m³/h - 265m³/h | 245m³/h - 600m³/h | 335m³/h - 500m³/h |
| Noise level Min-Max | 50db(A) - 64db(A) | 46db(A) - 60db(A) | 63db(A) - 69db(A) |
| Controls |
3S Mechanical slider |
3S+B Capacitive touch control | 3S+B Electronic push button |
