NikolaTesla Fit XL Advance
Design Fabrizio Crisà
Extractor hob with dual Bridge Zone, compact design and maximum installation flexibility.
Color: black
Size
Products for this combination
PRF0201567
NikolaTesla Fit XL Advance
Design Fabrizio Crisà
Extractor hob with dual Bridge Zone, compact design and maximum installation flexibility.
More room for your way of cooking.
NikolaTesla Fit XL Advance combines essential design, high performance and maximum installation versatility. Its reduced thickness optimises the space inside the kitchen cabinet, increasing the space available in the first drawer and easily adapting to different configurations and base units from 60 cm. The Bridge Zone allows cooking zones to be combined to accommodate large cookware, while the Direct Slider control enables power and functions to be managed quickly and intuitively. The Warming function maintains a constant ideal temperature for slow cooking, sauces or already-prepared food, while Autocapture automatically adjusts extraction power according to the cooking activity, optimising consumption and comfort. The extraction system, invisible when not in use, effectively captures fumes, vapours and odours with high filtration efficiency, thanks to the new filters that improve grease and odour removal. Also available in the exclusive Raw finish, which is more resistant to scratches and fingerprints and even easier to clean.
Comfort Silence
The power is there, but is silent.
Kitchens are ever more being designed as open spaces, so blending all in one with the living room.
Having a hood is becoming a must, as it will ensure perfect extraction of fumes and odours without generating disturbing noises. The extremely low noise level of our hoods and extractor hobs, ensure you the maximum well-being, so you can cook and hold a conversation with ease while you’re busy preparing your recipe.
Bridge Zone
XXL pots: there is room for them too.
Having problems with oval-shaped or bigger-sized pots? This function transforms two cooking zones into a bigger size one, ensuring you the same power level and constant temperature for a homogeneous cooking
Autocapture
Automatic extraction, energy saving.
A function that does it all on its own. The extraction power of the hood is adjusted depending on the type of cooking that has been commenced. The smart system immediately understands when to reduce or switch it off, thus optimising your energy consumption.
Technical Specifications
Weight (Kg)
19,2
Finishing
Black glass

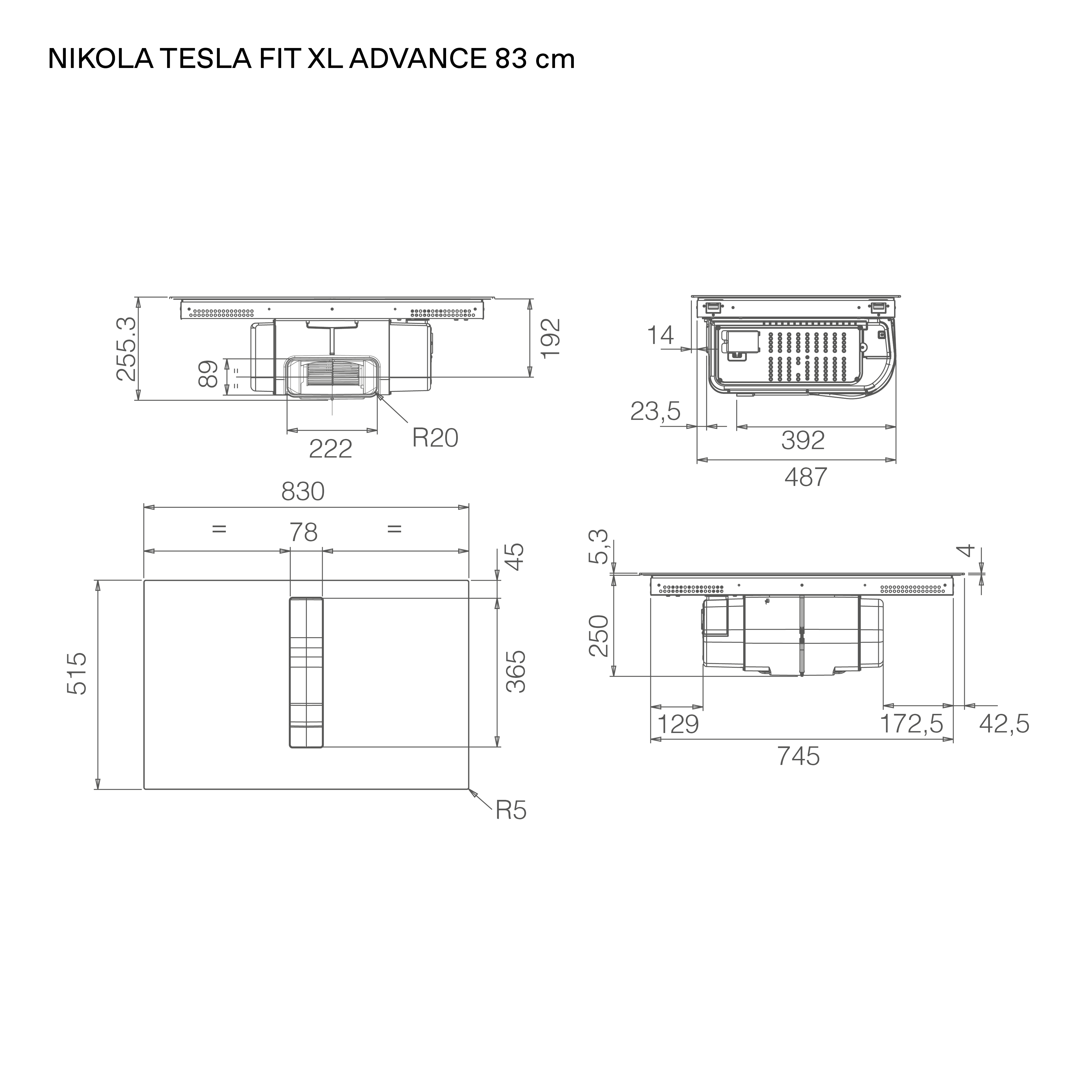

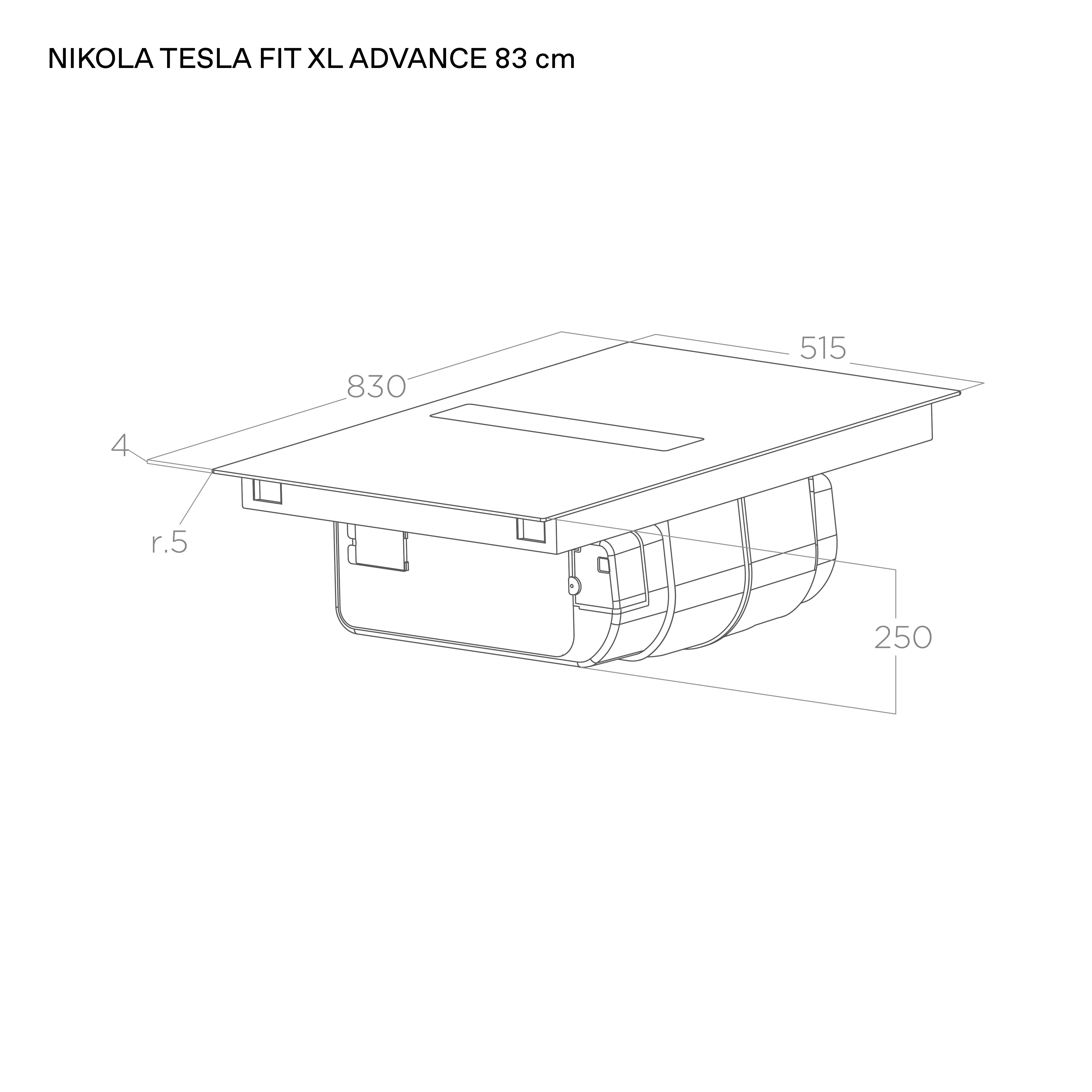

Dimensions (cm)
83x51,5x25
Energy Class
A

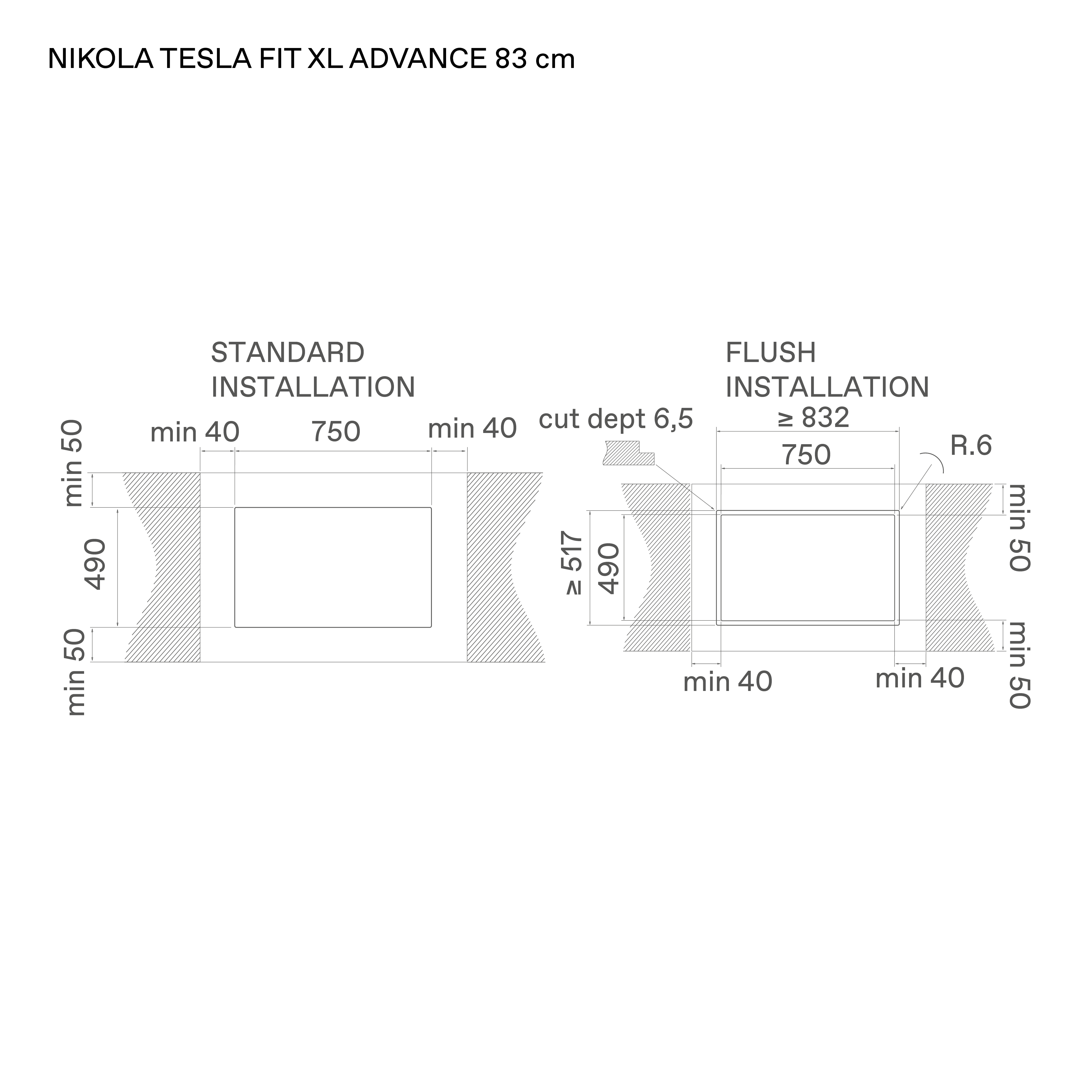

Cut out
75x49 cm
Total absorption
7,4 kW
Airflow min duct-out
220m³/h
Airflow max duct-out
500m³/h
Airflow boost duct-out
620m³/h
Airflow min filtering
135m³/h
Airflow max filtering
420m³/h
Airflow Filtering
520m³/h
Suction speed
5,1m/s
Noise level Min-Max aspiration
43db(A) - 61db(A)
Noise level Min-Max filter
44db(A) - 68db(A)
Controls
4S+B Slider touch control
Absorption
160 W
Controls
9P+B Touch control direct slider
Voltage
220-240V / 380-415V 2N / 380-415V 3N
Power limitation
3,1kW - 4,5kW
Number of bridge zones
2
Front left cooking zone
OCTA 21x19,1 cm - 2,1/3 kW
Right front cooking zone
OCTA 21x19,1 cm - 2,1/3 kW
Rear left cooking zone
OCTA 21x19,1 cm - 2,1/3 kW
Rear right cooking zone
OCTA 21x19,1 cm - 2,1/3 kW
Downloads
Download the technical sheet NikolaTesla Fit XL Advance
|
Compare models
|
|
|
|
|---|---|---|---|
| Color |
|
|
|
| Weight (Kg) | 19,2 |
Duct-out: 18,2 16,3 13,7 14,4 15,1 15,8 17,7 |
Filtering: 17,9 Filtering: 17,4 |
| Finishing | Black glass |
Duct-out: Black glass Matt black glass |
Filtering: Black glass Filtering: Matt black glass |
| Dimensions (cm) | 83x51,5x25 |
Duct-out: 83x51,5x25 83x51,5x25 60x51,5x19,4 72x51,5x25 |
Filtering: 72x51,5x25 Filtering: 60x51,5x25 |
| Energy Class | A | A | A |
| Cut out | 75x49 cm |
Duct-out: 75x49 cm 75x49 cm 56x49 cm |
56x49 cm |
| Total absorption | 7,4 kW | 7,4 kW | 7,4 kW |
| Airflow min duct-out | 220m³/h |
Duct-out: 205m³/h 205m³/h 200m³/h |
220m³/h |
| Airflow max duct-out | 500m³/h |
Duct-out: 455m³/h 455m³/h 490m³/h |
500m³/h |
| Airflow boost duct-out | 620m³/h |
Duct-out: 570m³/h 570m³/h 610m³/h |
620m³/h |
| Airflow min filtering | 135m³/h |
Duct-out: 190m³/h 190m³/h 195m³/h |
135m³/h |
| Airflow max filtering | 420m³/h |
Duct-out: 385m³/h 385m³/h 410m³/h |
420m³/h |
| Airflow Filtering | 520m³/h |
Duct-out: 475m³/h 475m³/h 515m³/h |
520m³/h |
| Suction speed | 5,1m/s | 5,1m/s | 5,1m/s |
| Noise level Min-Max aspiration | 43db(A) - 61db(A) |
Duct-out: 43db(A) - 61db(A) 43db(A) - 61db(A) 42db(A) - 61db(A) |
43db(A) - 61db(A) |
| Noise level Min-Max filter | 44db(A) - 68db(A) |
Duct-out: 52db(A) - 67db(A) 52db(A) - 67db(A) 50db(A) - 67db(A) |
44db(A) - 68db(A) |
| Controls | 4S+B Slider touch control | 4S+B Slider touch control | 4S+B Slider touch control |
| Absorption | 160 W | 160 W | 160 W |
| Controls | 9P+B Touch control direct slider | 9P+B slider touch control | 9P+B slider touch control |
| Voltage | 220-240V / 380-415V 2N / 380-415V 3N | 220-240V / 380-415V 2N / 380-415V 3N | 220-240V / 380-415V 2N / 380-415V 3N |
| Power limitation | 3,1kW - 4,5kW | 3,1kW - 4,5kW | 3,1kW - 4,5kW |
| Number of bridge zones | 2 | 1 (SX) | 2 |
| Front left cooking zone | OCTA 21x19,1 cm - 2,1/3 kW |
Duct-out: OCTA 21x19,1 cm - 1,65/1,85 kW OCTA 21x19,1 cm - 1,65/1,85 kW OCTA 21x19,1 cm - 2,1/3 kW |
OCTA 21x19,1 cm - 2,1/3 kW |
| Right front cooking zone | OCTA 21x19,1 cm - 2,1/3 kW | Ø 16 cm - 1,2/1,4 kW | OCTA 21x19,1 cm - 1,65/1,85 kW |
| Rear left cooking zone | OCTA 21x19,1 cm - 2,1/3 kW |
Duct-out: OCTA 21x19,1 cm - 2,1/3 kW OCTA 21x19,1 cm - 2,1/3 kW OCTA 21x19,1 cm - 1,65/1,85 kW |
OCTA 21x19,1 cm - 1,65/1,85 kW |
| Rear right cooking zone | OCTA 21x19,1 cm - 2,1/3 kW | Ø 20 cm - 2,3/3 kW | OCTA 21x19,1 cm - 2,1/3 kW |
