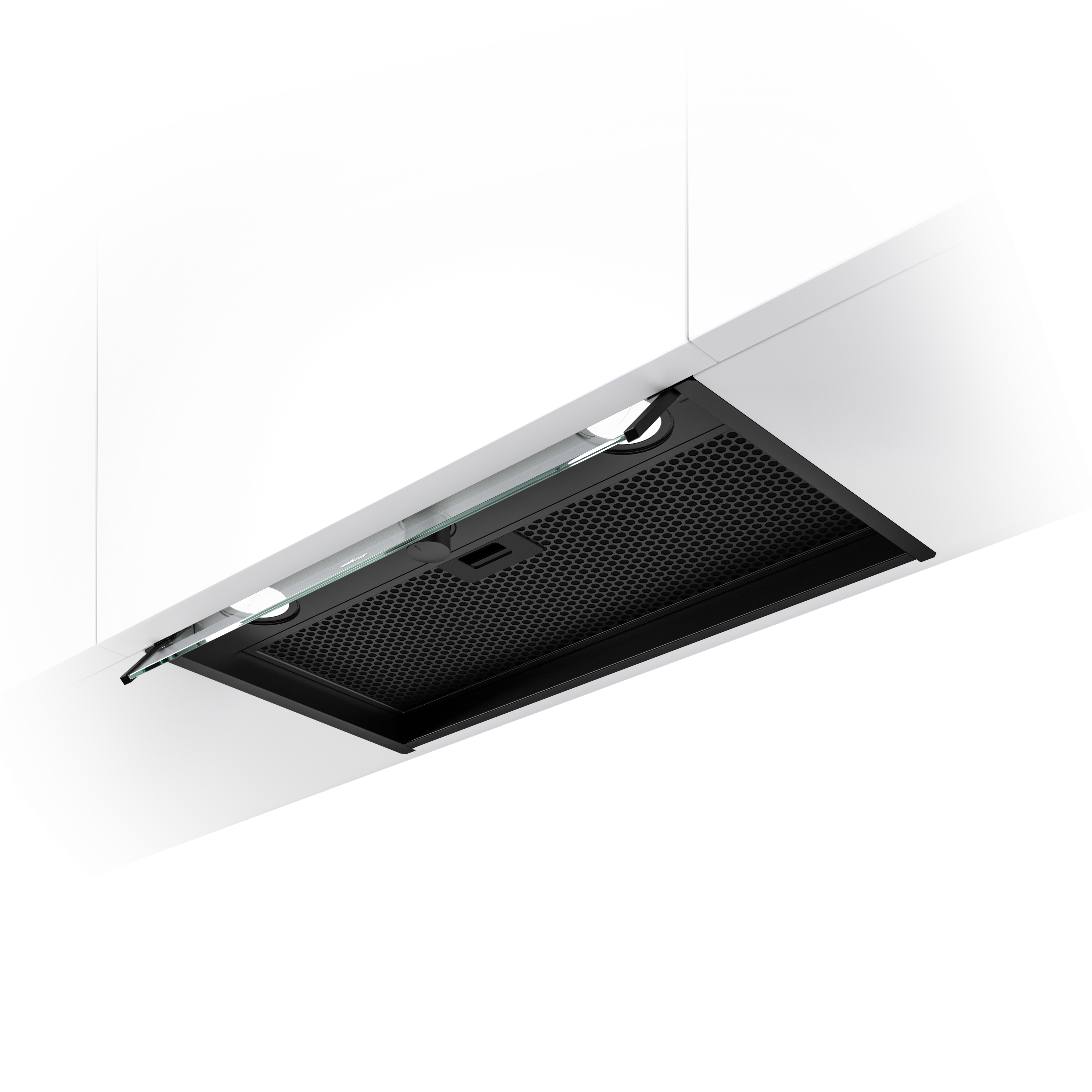

Boxin
Elica Design Center
This built-in smart hood delivers high performance and effortless maintenance in a design that protects your kitchen units from fumes and vapours.
Color: black
Size
Products for this combination
PRF0172168
Boxin
Elica Design Center
This built-in smart hood delivers high performance and effortless maintenance in a design that protects your kitchen units from fumes and vapours.
Concealed, yet there.
It is tailored to fit perfectly into any space and effectively meet your design requirements. The side guards on the hood protect cabinets, the odour filters last up to three years, thereby reducing environmental impact, and an indicator light alerts you when it’s time to wash, regenerate, or replace them.
Technical Specifications
Weight (Kg)
12,6
Finishing
Stainless Steel
Dimensions (cm)
120
Energy Class
A
Minimum distance from wall unit induction/radiant hob
50cm
Minimum distance from wall unit gas hob
50cm
Duct Transition
150mm
Lighting
Led 2x2,5 W - 3500 K - 381 LUX
Absorption
255W
Airflow Min-Max
255m³/h - 620m³/h
Noise level Min-Max
50db(A) - 70db(A)
Controls
3S Mechanical rotative
Original accessories
Downloads
Download the technical sheet Boxin
|
Compare models
|
|
|
|
|---|---|---|---|
| Color |
|
|
|
| Weight (Kg) |
STD: 7,8 STD: 9,5 STD: 12,1 LX: 8,7 LX: 10,25 LX: 12,6 LX: 8,9 LX: 10,5 STD: 12,6 LX: 9,5 |
12,1 9,6 10,8 14,5 |
9,15 11,5 10,3 13,7 Duct-out: 9,15 Duct-out: 11,5 Duct-out: 10,3 Duct-out: 13,7 |
| Finishing |
STD: Stainless Steel LX: Stainless Steel |
Stainless Steel |
Stainless Steel Duct-out: Nero opaco |
| Dimensions (cm) |
STD: 60 STD: 90 STD: 120 LX: 60 LX: 90 LX: 120 LX: 75 |
90 60 75 120 |
60 75 90 120 Duct-out: 60 Duct-out: 75 Duct-out: 90 Duct-out: 120 |
| Energy Class |
STD: D LX: A STD: A |
B | B |
| Minimum distance from wall unit induction/radiant hob |
STD: 45cm LX: 50cm STD: 50cm |
50cm | 50cm |
| Minimum distance from wall unit gas hob | 50cm | 50cm | 57cm |
| Duct Transition | 150mm | 150mm | 150mm |
| Lighting | Led 2x2,5 W - 3500 K - 381 LUX |
Led 3x2,1 W - 3500 K - 181 LUX Led 3x2,1 W - 3500 K - 211 LUX |
Strip Led 1x7 W - 3500 K - 421 LUX |
| Absorption |
STD: 95W LX: 255W STD: 255W |
255W 257.5W |
257W |
| Airflow Min-Max |
STD: 140m³/h - 370m³/h LX: 255m³/h - 620m³/h STD: 255m³/h - 620m³/h LX: 245m³/h - 620m³/h |
270m³/h - 700m³/h | 290m³/h - 710m³/h |
| Noise level Min-Max |
STD: 48db(A) - 67db(A) LX: 50db(A) - 70db(A) STD: 50db(A) - 70db(A) LX: 48db(A) - 69db(A) |
52db(A) - 67db(A) |
52db(A) - 66db(A) Duct-out: 50db(A) - 66db(A) |
| Controls | 3S Mechanical rotative | 3S+B Electronic push button | 3S+B Electronic push button |
