Boxin Plus
Elica Design Center
Subtle and carefully thought out in every detail, this built-in hood completely disappears, becoming one with the underside of the cabinet.
Color: inox + glass
Size
Products for this combination
PRF0097795A
Boxin Plus
Elica Design Center
Subtle and carefully thought out in every detail, this built-in hood completely disappears, becoming one with the underside of the cabinet.
The gift of invisibility.
This kitchen hood is equipped with a high-performance motor, LED lighting and a push-pull controls. Designed to maximise even the smallest spaces, it features a central glass panel and two side glass panels that protect the cabinet even when installed at the minimum height (50cm) above gas hobs. Its T-shaped design fits perfectly into the cabinets, optimising space.
Technical Specifications
Weight (Kg)
10.35
Finishing
Stainless Steel + White Glass
Dimensions (cm)
60
Energy Class
B
Minimum distance from wall unit induction/radiant hob
50cm
Minimum distance from wall unit gas hob
50cm
Duct Transition
150mm
Lighting
Led 2x2,5 W - 3500 K - 381 LUX
Absorption
255W
Airflow Min-Max
230m³/h - 610m³/h
Noise level Min-Max
49db(A) - 70db(A)
Controls
3S Mechanical rotative
Original accessories
Downloads

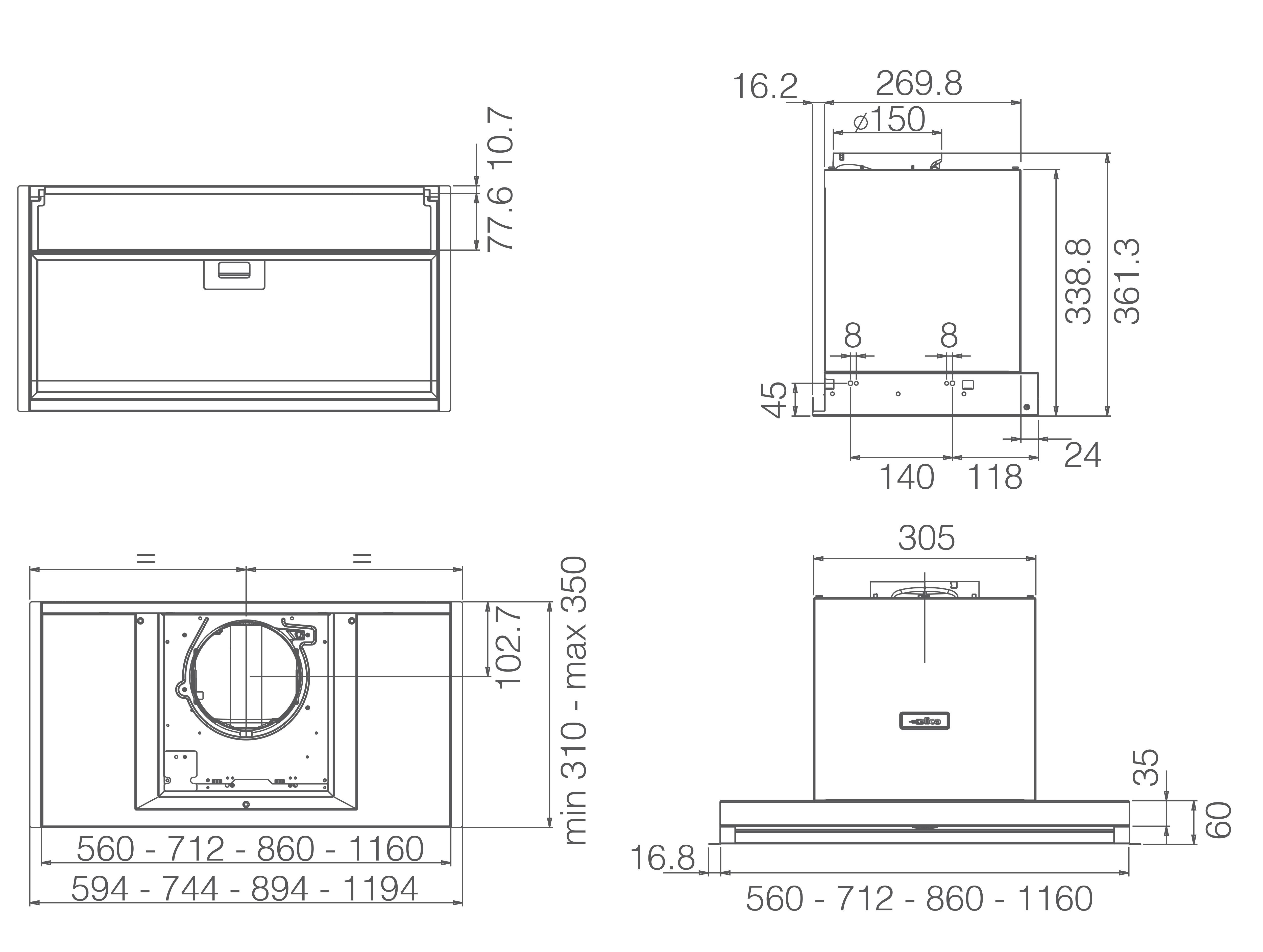

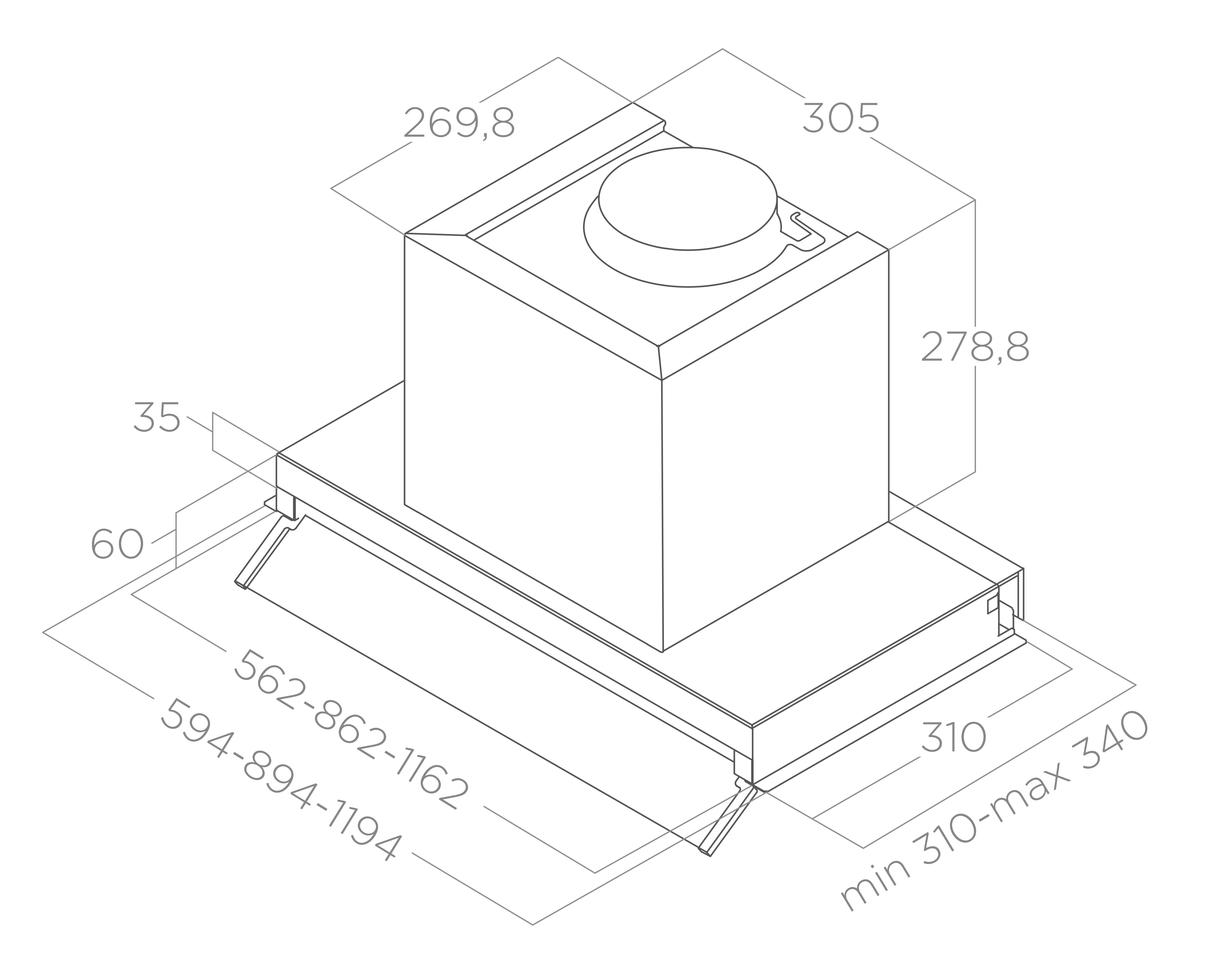

Download the technical sheet Boxin Plus
|
Compare models
|
|
|
|
|---|---|---|---|
| Color |
|
|
|
| Weight (Kg) |
10.35 13.25 17.2 |
8.9 10.5 12.6 |
10.7 13.65 16.3 Duct-out: 8.75 Duct-out: 11.2 10.4 12.55 Duct-out: 14.9 14.8 |
| Finishing | Stainless Steel + White Glass | Black Matte |
Stainless Steel Duct-out: Black Matte |
| Dimensions (cm) |
60 90 120 |
60 90 120 75 |
60 90 120 Duct-out: 60 Duct-out: 90 Duct-out: 120 |
| Energy Class | B | B | A |
| Minimum distance from wall unit induction/radiant hob | 50cm | 50cm | 50cm |
| Minimum distance from wall unit gas hob | 50cm | 50cm | 62cm |
| Duct Transition | 150mm | 150mm | 150mm |
| Lighting | Led 2x2,5 W - 3500 K - 381 LUX | Led 2x2,5 W - 3500 K - 381 LUX |
Strip Led 1x7 W - 3500 K - 421 LUX Strip Led 1x7 W - 3500 K - 365 LUX Duct-out: Strip Led 1x7 W - 3500 K - 421 LUX Duct-out: Strip Led 1x7 W - 3500 K - 365 LUX |
| Absorption | 255W | 255W |
286W 307W 325W Duct-out: 286W Duct-out: 307W Duct-out: 325W |
| Airflow Min-Max | 230m³/h - 610m³/h | 255m³/h - 620m³/h |
140m³/h - 700m³/h Duct-out: 140m³/h - 700m³/h 140m³/h - 680m³/h |
| Noise level Min-Max | 49db(A) - 70db(A) | 50db(A) - 70db(A) | 36db(A) - 66db(A) |
| Controls | 3S Mechanical rotative | 3S Mechanical rotative | 3S+B Electronic push button |
