Circus
Elica Design Center
Color: Stainless steel
Size
Products for this combination
68116392A
Circus
Elica Design Center
Technical Specifications
Weight (Kg)
16.55
Finishing
Stainless Steel + Glass
Dimensions (cm)
90
Energy Class
D
Minimum distance from wall unit induction/radiant hob
50cm
Minimum distance from wall unit gas hob
65cm
Duct Transition
150mm
Lighting
Led 2x2,5 W - 3500 K - 381 LUX
Absorption
140W
Airflow Min-Max
195m³/h - 384m³/h
Noise level Min-Max
55db(A) - 62db(A)
Controls
3S Mechanical push button
Original accessories
Downloads

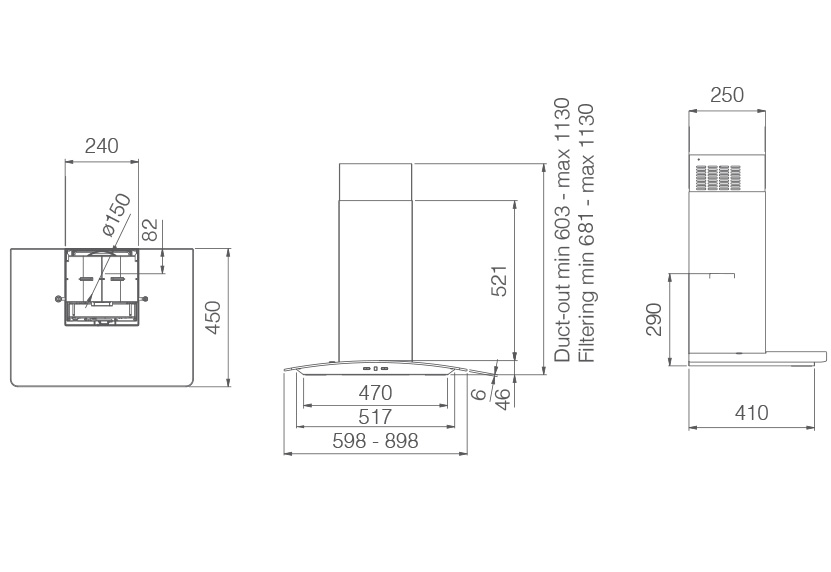

Download the technical sheet Circus
|
Compare models
|
|
|
|
|---|---|---|---|
| Color |
|
|
|
| Weight (Kg) |
16.55 14.55 |
cast iron: 23.4 zinc: 23.2 |
Filtering: 13.9 Duct-out: 15 Duct-out: 14 Duct-out: 14.5 Filtering: 14.5 |
| Finishing | Stainless Steel + Glass |
cast iron: Cast Iron Effect zinc: Galvanised Effect |
Filtering: Bianco opaco Filtering: Copper Matt Effect Filtering: Pewter effect Duct-out: Bianco opaco Duct-out: Pewter effect Duct-out: Copper Matt Effect Filtering: Black Matte Filtering: Peach Fuzz Duct-out: Peach Fuzz Duct-out: Bronzo Filtering: Bronzo Duct-out: Embrace Filtering: Embrace Duct-out: Black Matte Duct-out: Sage Filtering: Sage Duct-out: taupe Filtering: taupe |
| Dimensions (cm) |
90 60 |
90 | 85 |
| Energy Class | D | B | A |
| Minimum distance from wall unit induction/radiant hob | 50cm | 40cm | 60cm |
| Minimum distance from wall unit gas hob | 65cm | 50cm | 70cm |
| Duct Transition | 150mm | 150mm | 150mm |
| Lighting | Led 2x2,5 W - 3500 K - 381 LUX | Led 2x2,5 W - 3500 K - 381 LUX | Strip Led 1x7 W - 4000 K - 197 LUX |
| Absorption | 140W | 265W | 207W |
| Airflow Min-Max | 195m³/h - 384m³/h | 288m³/h - 757m³/h | 230m³/h - 580m³/h |
| Noise level Min-Max | 55db(A) - 62db(A) | 50db(A) - 65db(A) | 46db(A) - 61db(A) |
| Controls | 3S Mechanical push button | 3S+B Electronic push button | 3S+B Capacitive touch control |
