Boxin Easy Dry
Color: black matt
Size
Products for this combination
PRF0213256
Boxin Easy Dry
Plus
Technical Specifications
Weight (Kg)
8,9
Finishing
Black Matte
Dimensions (cm)
60
Energy Class
B
Minimum distance from wall unit induction/radiant hob
50cm
Minimum distance from wall unit gas hob
50cm
Duct Transition
150mm
Lighting
Led 2x2,5 W - 3500 K - 381 LUX
Absorption
255W
Airflow Min-Max
255m³/h - 620m³/h
Noise level Min-Max
50db(A) - 70db(A)
Controls
3S Mechanical rotative
Downloads

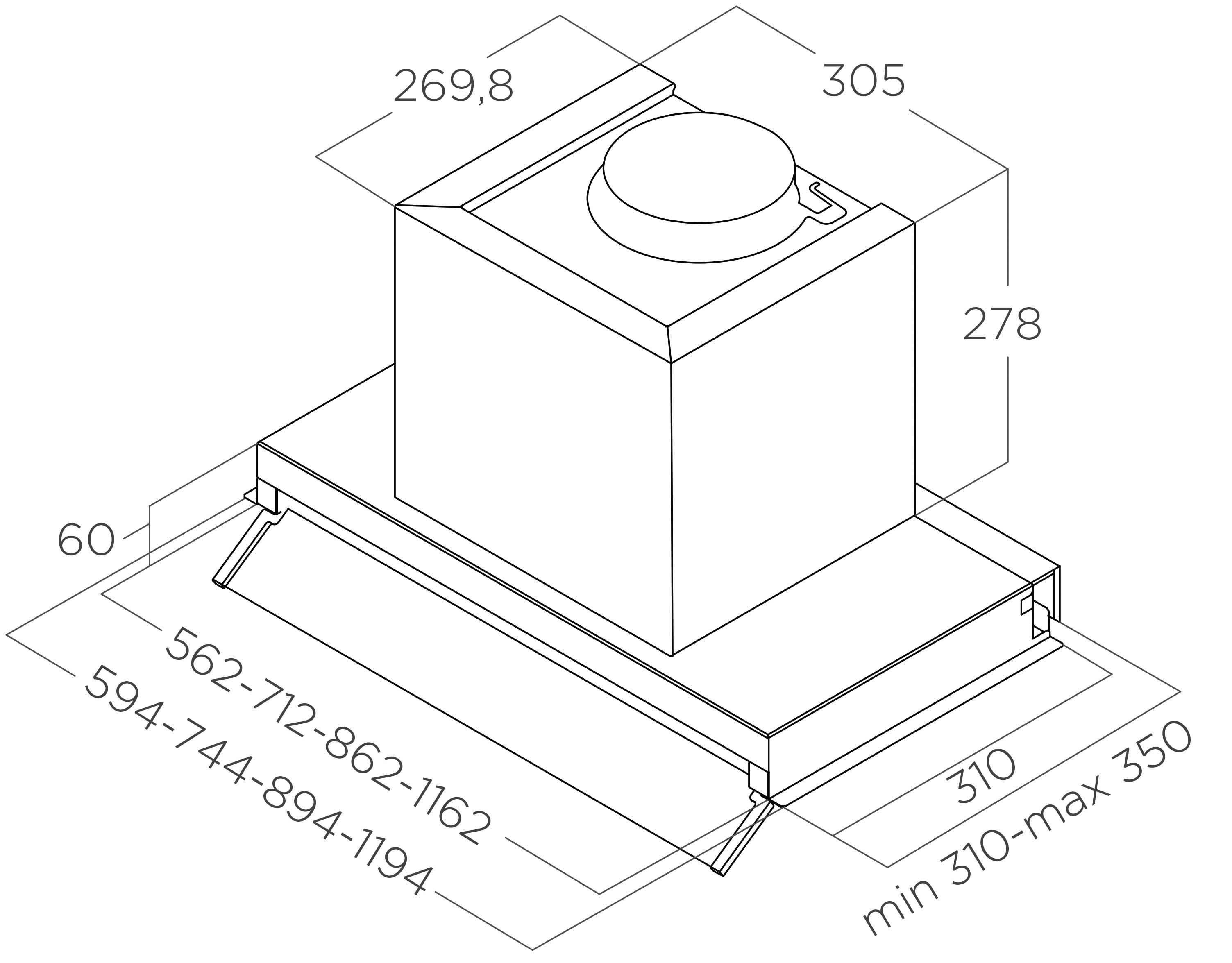

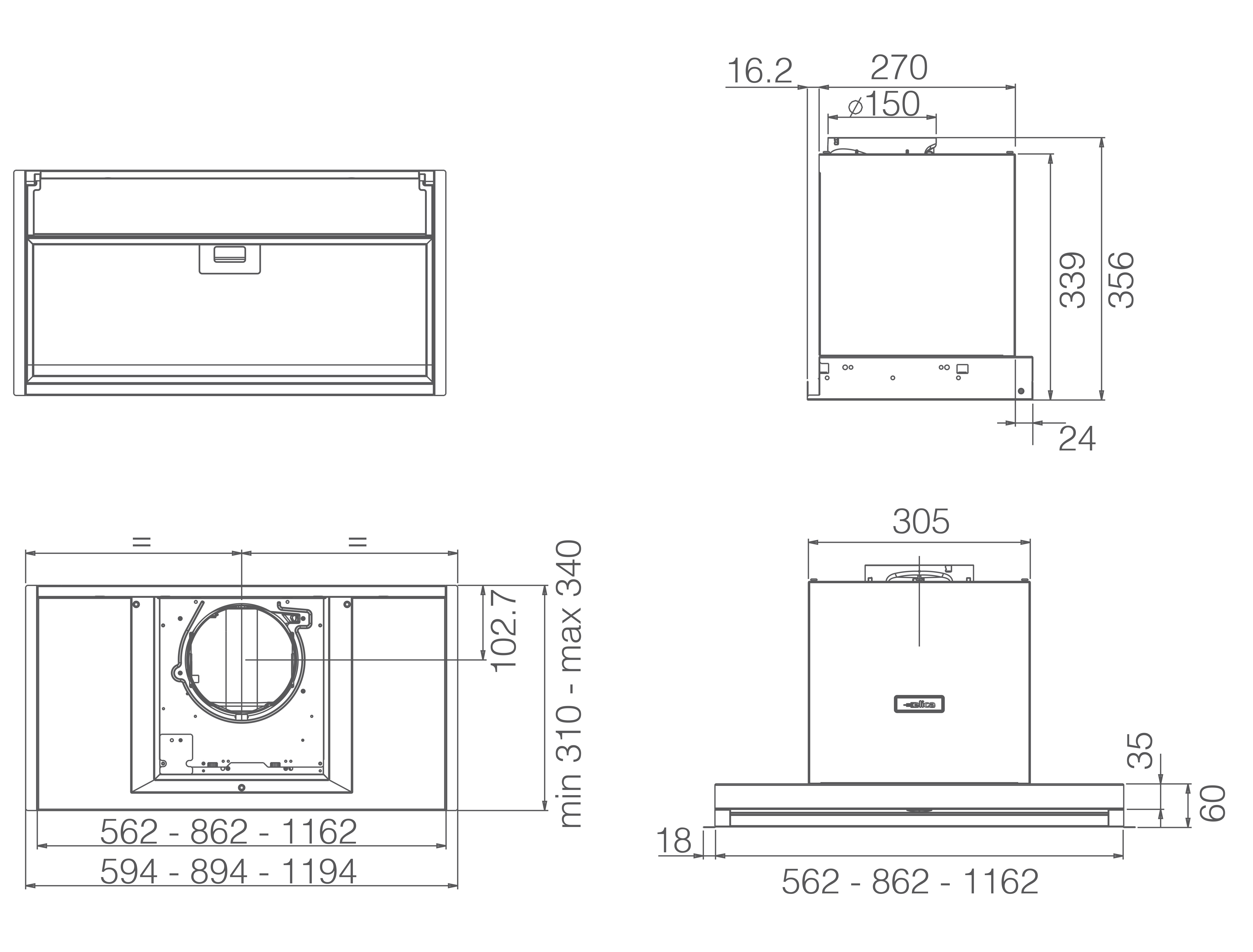

Download the technical sheet Boxin Easy Dry
|
Compare models
|
|
|
|
|---|---|---|---|
| Color |
|
|
|
| Weight (Kg) |
8,9 10,5 12,6 |
STD: 7,8 STD: 9,5 STD: 12,1 LX: 8,7 LX: 10,25 LX: 12,6 LX: 8,9 LX: 10,5 STD: 12,6 LX: 9,5 |
9,15 11,5 10,3 13,7 Duct-out: 9,15 Duct-out: 11,5 Duct-out: 10,3 Duct-out: 13,7 |
| Finishing | Black Matte |
STD: Stainless Steel LX: Stainless Steel |
Stainless Steel Duct-out: Black Matte |
| Dimensions (cm) |
60 90 120 75 |
STD: 60 STD: 90 STD: 120 LX: 60 LX: 90 LX: 120 LX: 75 |
60 75 90 120 Duct-out: 60 Duct-out: 75 Duct-out: 90 Duct-out: 120 |
| Energy Class | B |
STD: D LX: A STD: A |
B |
| Minimum distance from wall unit induction/radiant hob | 50cm |
STD: 45cm LX: 50cm STD: 50cm |
50cm |
| Minimum distance from wall unit gas hob | 50cm | 50cm | 57cm |
| Duct Transition | 150mm | 150mm | 150mm |
| Lighting | Led 2x2,5 W - 3500 K - 381 LUX | Led 2x2,5 W - 3500 K - 381 LUX | Strip Led 1x7 W - 3500 K - 421 LUX |
| Absorption | 255W |
STD: 95W LX: 255W STD: 255W |
257W |
| Airflow Min-Max | 255m³/h - 620m³/h |
STD: 140m³/h - 370m³/h LX: 255m³/h - 620m³/h STD: 255m³/h - 620m³/h LX: 245m³/h - 620m³/h |
290m³/h - 710m³/h |
| Noise level Min-Max | 50db(A) - 70db(A) |
STD: 48db(A) - 67db(A) LX: 50db(A) - 70db(A) STD: 50db(A) - 70db(A) LX: 48db(A) - 69db(A) |
52db(A) - 66db(A) Duct-out: 50db(A) - 66db(A) |
| Controls | 3S Mechanical rotative | 3S Mechanical rotative | 3S+B Electronic push button |
