Belt S

Design Fabrizio Crisà

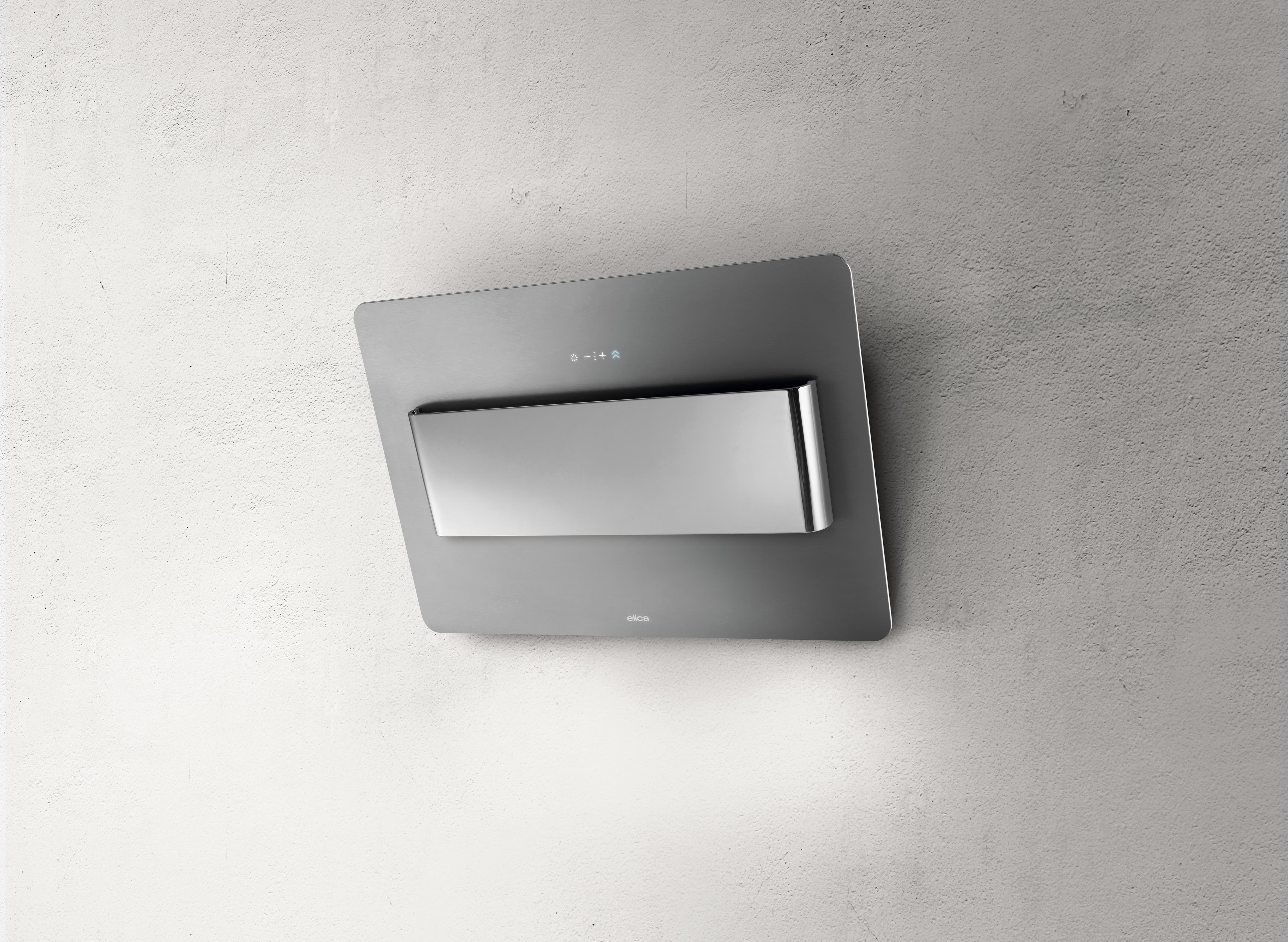

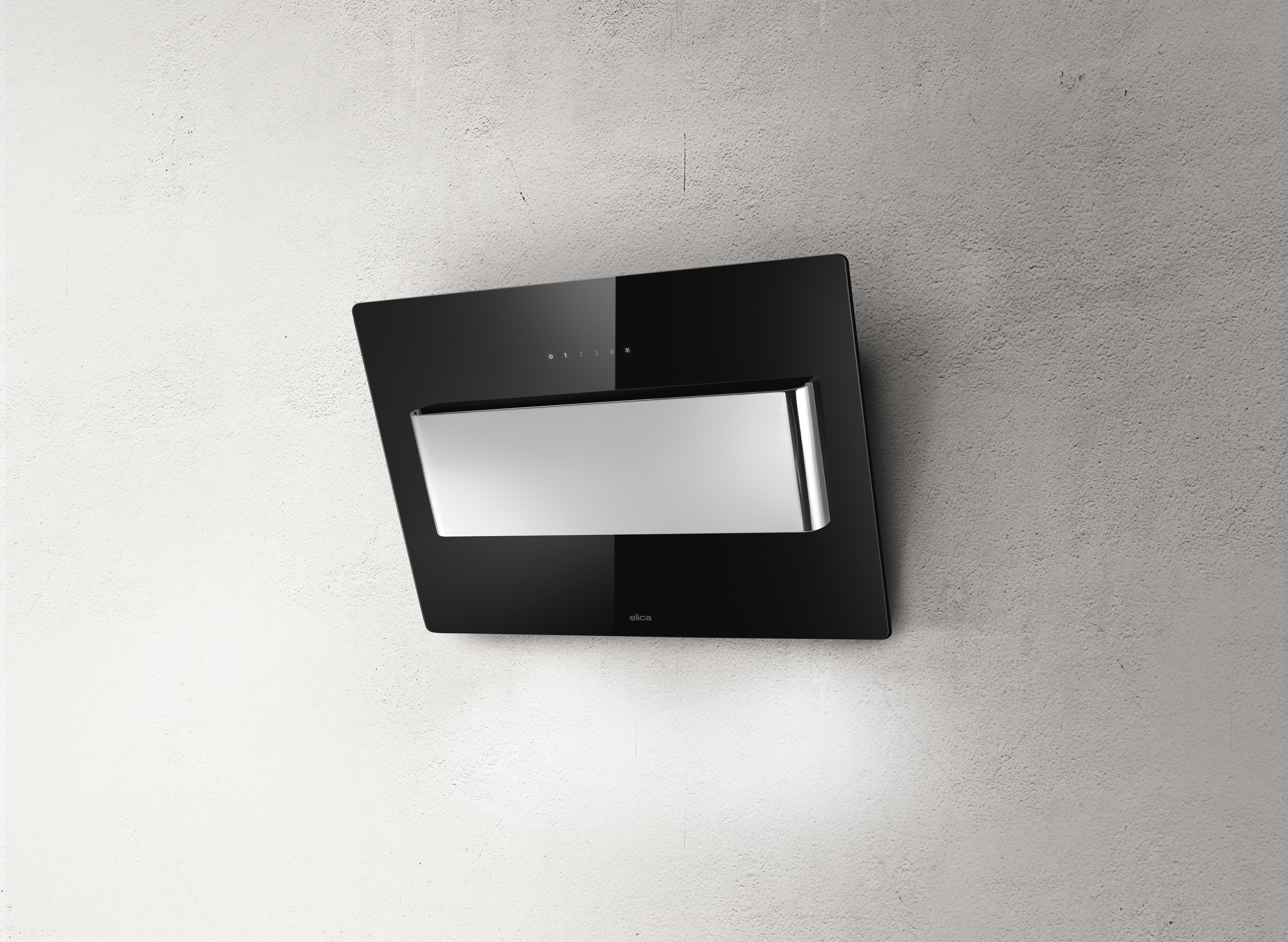

A harmonious blend of two geometric entities, Belt is composed of a tilted bottom panel, overlapped in the middle by a horizontal element in relief.

Colorblack
Size
Products for this combination
PRF0032793C

Belt S

Design Fabrizio Crisà
A harmonious blend of two geometric entities, Belt is composed of a tilted bottom panel, overlapped in the middle by a horizontal element in relief.

Belt S

Not only elegant lines and soft shapes, Belt is an ergonomic product that leaves freedom for movement when preparing food with the head saver profile that means the kitchen can be used to the full without the fear of accidental bumps. The central element made of polished steel conceals the extraction source, contrasted in the base panel made from brushed steel or black or white glass with rounded corners. Compared to the elegant black or white glass version, the appearance is edgier in the steel on steel version, where this material gives the product austerity. The central panel on runners is removable so it is easy to access to the removable metal grease filter to wash it and the removable carbon filter. The function control is activated with a capacitive touch control and just a light tap activates both extraction and the halogen lighting. The hood is available in 55 cm and 80 cm versions, so you can choose the size that best suits your kitchen. Belt, with its soft lines, embraces the air of your kitchen.

Easy to Maintain

The perfect product with easy maintenance.
Proper maintenance and maximum hygiene, ensure a longer lifespan of the appliance. Our models have been conceived to make the replacement of grease filters and odour filters easier: all are removable, washable and replaceable.

Maintenance Alarm

Filters KO’d? You’ll be informed.
A warning light will switch on to signal out to you that grease filters and odour filters have reached their maximum saturation point. It’s time for you to wash or replace them.

Back Aspiration

Maximum extraction and aesthetics alongside.
No more additional piping and chimneys visible to the naked eye in wall installations! The results? Top extraction capacity and top aesthetic appeal.

Technical Specifications

Weight (Kg)
16,92
Finishing
Black Glass
Dimensions (cm)
80
Energy Class
A
Minimum distance from wall unit induction/radiant hob
40cm
Minimum distance from wall unit gas hob
50cm
Duct Transition
150mm
Lighting
Led 2x2,5 W - 3500 K - 381 LUX
Absorption
225W

Airflow Min-Max
250m³/h - 590m³/h
Noise level Min-Max
46db(A) - 61db(A)
Controls
3S+B Capacitive touch control

Original accessories

Downloads


BELT BL/F/80
PRF0032793C
Go to Downloads
Compare models
Belt S
Lol
Spot Plus
Color white Stainless steel black white Stainless steel black Stainless steel
Weight (Kg) BL: 16,92
IX: 22,2
WH: 16,92
12,8
14
14
11
16
Finishing BL: Black Glass
IX: Stainless Steel
WH: White Glass
Stainless Steel
Nero opaco
Bianco opaco
Stainless Steel
Dimensions (cm) 80 60
90
90
60
120
Energy Class A A A
Minimum distance from wall unit induction/radiant hob 40cm 50cm 50cm
Minimum distance from wall unit gas hob 50cm 65cm 65cm
Duct Transition 150mm 150mm 150mm
Lighting Led 2x2,5 W - 3500 K - 381 LUX Led 2x2,5 W - 3500 K - 381 LUX Led 2x2,5 W - 3500 K - 381 LUX
Absorption 225W 205W 205W
Airflow Min-Max 250m³/h - 590m³/h 280m³/h - 620m³/h 280m³/h - 620m³/h
Noise level Min-Max 46db(A) - 61db(A) 52db(A) - 67db(A) 52db(A) - 67db(A)
Controls BL: 3S+B Capacitive touch control
IX: 3S+B Infrared touch control
WH: 3S+B Capacitive touch control
3S+B Electronic rotative 3S+B Electronic push button with LCD
