NikolaTesla Alpha B
The essence of the extractor hob.
Hobs Induction Hobs With Extractor NikolaTesla Alpha B hero

NikolaTesla Alpha B

Design Fabrizio Crisà

Efficient, compact extractor hob designed to optimise the available space.

Color: black
Width
Products for this combination
PRF0193270
PRF0204598
PRF0210760

NikolaTesla Alpha B

Design Fabrizio Crisà
Efficient, compact extractor hob designed to optimise the available space.
Hobs Induction Hobs With Extractor Nikolatesla Alpha B black 78 detail

The essence of the extractor hob.

Essential design, smart technology. With a thickness of just 19.4 cm, it optimises the space inside the kitchen cabinet and offers flexibility across different installation configurations. With the Autocapture function, the extraction system automatically detects the cooking zones in use and adjusts the power to always ensure the right balance between performance and quietness. Also available in the exclusive Raw finish, which is more resistant to scratches and fingerprints, for a contemporary aesthetic that keeps the hob looking impeccable with minimal effort.

Plus

Easy Control

Easy Control

The cooking zones are controlled via a touch slider interface. Automatic modes, the Bridge function and Stop&Go to pause cooking are always available with a simple touch. Power levels, timers and all active functions are displayed through dedicated indicators.
Space Saving

Space Saving

A design that maximizes storage space in the wall cabinets, leaving open areas for storing everyday items and accessories.
Odour Shield

Odour Shield
Black Matt

Black Matt

A matt black finish defines a minimal, contemporary style, while eliminating reflections and making cleaning easier.

Features

Delay Switch Off

Mantainance Alarm

Autocapture

Warming Mode

Child Lock

Stop&Go

Timer

Technical Specifications

Tech sheet Tech sheet Tech sheet Tech sheet

Weight (Kg)
Duct-out: 17
Filtering: 17.7
Finishing
Black glass
Dimensions (cm)
Duct-out: 78x51,5x25
Filtering: 78x51,5x25
Duct-out: 78x51,5x19,4
Energy Class
Duct-out: A
Filtering: A
Duct-out: A+
Cut out
75x49 cm
Total absorption
Duct-out: 7,4 kW
Filtering: 7,4 kW
Duct-out: 7,5 kW

Airflow min duct-out
Duct-out: 205m³/h
Filtering: 205m³/h
Duct-out: 155m³/h
Airflow max duct-out
Duct-out: 455m³/h
Filtering: 455m³/h
Duct-out: 500m³/h
Airflow boost duct-out
Duct-out: 570m³/h
Filtering: 570m³/h
Duct-out: 620m³/h
Airflow min filtering
Duct-out: 190m³/h
Filtering: 190m³/h
Duct-out: 155m³/h
Airflow max filtering
Duct-out: 385m³/h
Filtering: 385m³/h
Duct-out: 465m³/h
Airflow Filtering
Duct-out: 475m³/h
Filtering: 475m³/h
Duct-out: 580m³/h
Suction speed
Duct-out: 5.1m/s
Filtering: 5.1m/s
Noise level Min-Max aspiration
Duct-out: 43db(A) - 61db(A)
Filtering: 43db(A) - 61db(A)
Duct-out: 42db(A) - 69db(A)
Noise level Min-Max filter
Duct-out: 52db(A) - 67db(A)
Filtering: 52db(A) - 67db(A)
Duct-out: 51db(A) - 75db(A)
Controls
4S+B Slider touch control
Absorption
Duct-out: 160 W
Filtering: 160 W
Duct-out: 350 W

Controls
9P+B slider touch control
Voltage
220-240V / 380-415V 2N / 380-415V 3N
Power limitation
Duct-out: 3,1kW - 4,5kW
Filtering: 3,1kW - 4,5 kW
Number of bridge zones
Duct-out: No
Front left cooking zone
Ø 16 cm - 1,2/1,6 kW
Right front cooking zone
Ø 16 cm - 1,2/1,6 kW
Rear left cooking zone
Ø 21 cm - 1,5/2 kW
Rear right cooking zone
Ø 21 cm - 1,5/2 kW

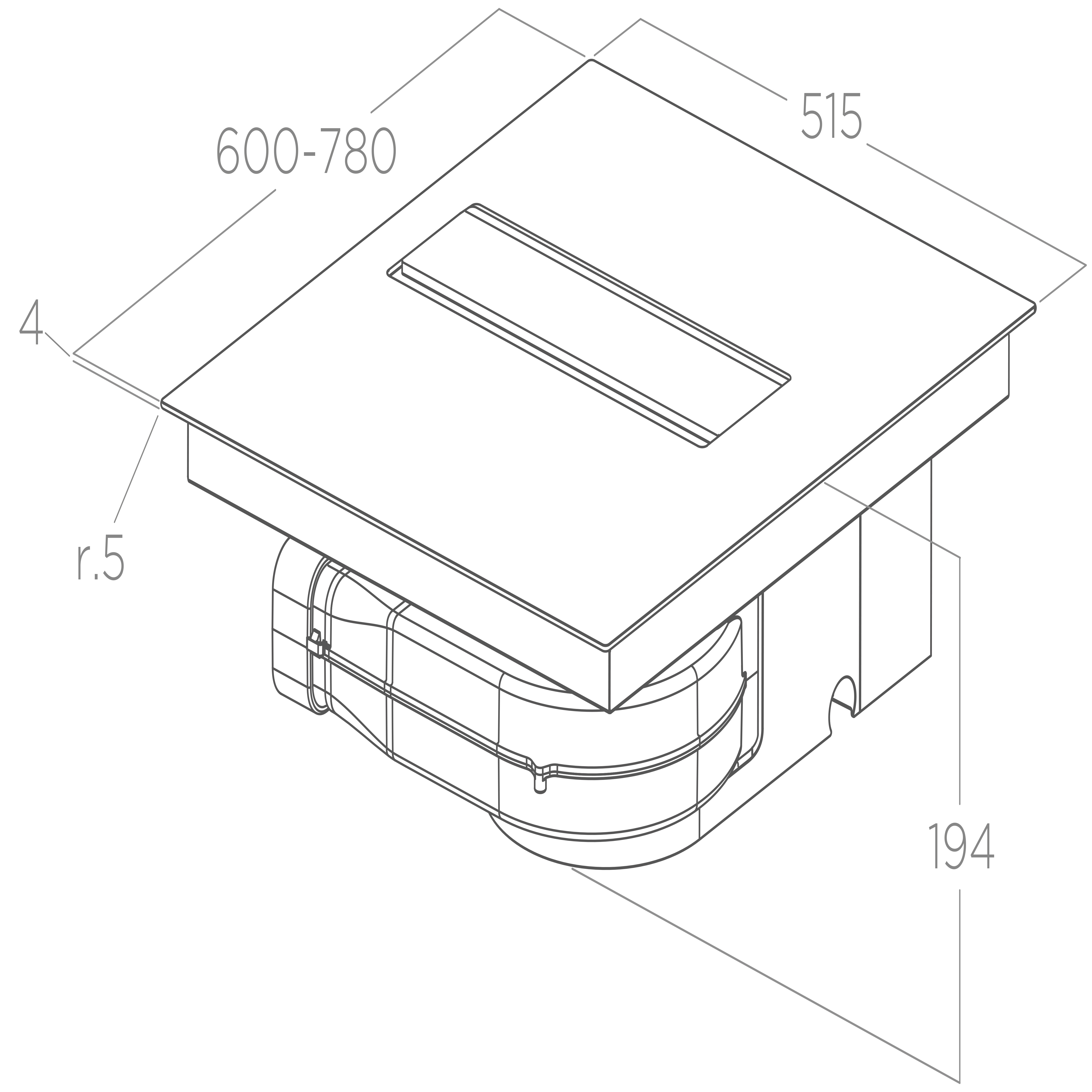

Hobs Induction Hobs With Extractor Nikolatesla Alpha B black 78 tech sheet Hobs Induction Hobs With Extractor Nikolatesla Alpha B black 78 tech sheet Hobs Induction Hobs With Extractor Nikolatesla Alpha B black 78 tech sheet Hobs Induction Hobs With Extractor Nikolatesla Alpha B black 78 tech sheet

Compatible accessories

Model
Find the right spare part by checking the specifications with the PRF code
Hobs Induction Hobs With Extractor NIKOLATESLA ALPHA B BL/A/78 thumb
NIKOLATESLA ALPHA B BL/A/78
PRF0193270
Hobs Induction Hobs With Extractor NIKOLATESLA ALPHA B BL/F BO/78 thumb
NIKOLATESLA ALPHA B BL/F BO/78
PRF0204598
Hobs Induction Hobs With Extractor NIKOLATESLA ALPHA B SL BL/A/78 thumb
NIKOLATESLA ALPHA B SL BL/A/78
PRF0210760
Venting Type Duct-out Filtering Duct-out
Weight (Kg)
Dimensions (cm)
Energy Class
Total absorption
Airflow min duct-out
Airflow max duct-out
Airflow boost duct-out
Airflow min filtering
Airflow max filtering
Airflow Filtering
Suction speed
Noise level Min-Max aspiration
Noise level Min-Max filter
Absorption
Power limitation
Number of bridge zones
Power limitation
  View accessories View accessories View accessories

Downloads

NIKOLATESLA ALPHA B BL/A/78
PRF0193270
Go to Downloads
NIKOLATESLA ALPHA B BL/F BO/78
PRF0204598
Go to Downloads
NIKOLATESLA ALPHA B SL BL/A/78
PRF0210760
Go to Downloads
Compare models
NikolaTesla Alpha B
NikolaTesla Switch
NikolaTesla Velvet
Color black white black black
Weight (Kg) Duct-out: 17
Duct-out: 15.6
Filtering: 16.3
Filtering: 17.7
 20.5 Duct-out: 16
Duct-out: 17
Duct-out: 18.3
Finishing Duct-out: Black glass
Filtering: Black glass
Duct-out: Matt black glass
 Duct-out: Black glass
Duct-out: White glass "ice grey"
 Black glass
Dimensions (cm) Duct-out: 78x51,5x25
Duct-out: 60x51,5x25
Filtering: 60x51,5x25
Filtering: 78x51,5x25
Duct-out: 60x51,5x19,4
Duct-out: 78x51,5x19,4
 83x51,5x21 Duct-out: 60x51,5x25
Duct-out: 72x51,5x25
Duct-out: 83x51,5x25
Duct-out: 83x51,5x19,4
Duct-out: 60x51,5x19,4
Duct-out: 72x51,5x19,4
Energy Class Duct-out: A
Filtering: A
Duct-out: A+
 A++ Duct-out: A
Duct-out: A+
Cut out Duct-out: 75x49 cm
Duct-out: 56x49 cm
Filtering: 56x49 cm
Filtering: 75x49 cm
 80,7x49,2 cm Duct-out: 56x49 cm
Duct-out: 75x49 cm
Total absorption Duct-out: 7,4 kW
Filtering: 7,4 kW
Duct-out: 7,5 kW
 7,4 kW Duct-out: 7,4 kW
Duct-out: 7,5 kW
Airflow min duct-out Duct-out: 205m³/h
Duct-out: 200m³/h
Filtering: 200m³/h
Filtering: 205m³/h
Duct-out: 155m³/h
 130m³/h Duct-out: 220m³/h
Duct-out: 155m³/h
Airflow max duct-out Duct-out: 455m³/h
Duct-out: 490m³/h
Filtering: 490m³/h
Filtering: 455m³/h
Duct-out: 500m³/h
 525m³/h 500m³/h
Airflow boost duct-out Duct-out: 570m³/h
Duct-out: 610m³/h
Filtering: 610m³/h
Filtering: 570m³/h
Duct-out: 620m³/h
 620m³/h 620m³/h
Airflow min filtering Duct-out: 190m³/h
Duct-out: 195m³/h
Filtering: 195m³/h
Filtering: 190m³/h
Duct-out: 155m³/h
 130m³/h Duct-out: 135m³/h
Duct-out: 155m³/h
Airflow max filtering Duct-out: 385m³/h
Duct-out: 410m³/h
Filtering: 410m³/h
Filtering: 385m³/h
Duct-out: 465m³/h
 580m³/h Duct-out: 420m³/h
Duct-out: 465m³/h
Airflow Filtering Duct-out: 475m³/h
Duct-out: 515m³/h
Filtering: 515m³/h
Filtering: 475m³/h
Duct-out: 580m³/h
 600m³/h Duct-out: 520m³/h
Duct-out: 580m³/h
Suction speed Duct-out: 5.1m/s
Filtering: 5.1m/s
 5.1m/s Duct-out: 5.1m/s
Noise level Min-Max aspiration Duct-out: 43db(A) - 61db(A)
Duct-out: 42db(A) - 61db(A)
Filtering: 42db(A) - 61db(A)
Filtering: 43db(A) - 61db(A)
Duct-out: 42db(A) - 69db(A)
 34db(A) - 67db(A) Duct-out: 43db(A) - 61db(A)
Duct-out: 42db(A) - 69db(A)
Noise level Min-Max filter Duct-out: 52db(A) - 67db(A)
Duct-out: 50db(A) - 67db(A)
Filtering: 50db(A) - 67db(A)
Filtering: 52db(A) - 67db(A)
Duct-out: 51db(A) - 75db(A)
 38db(A) - 71db(A) Duct-out: 44db(A) - 68db(A)
Duct-out: 51db(A) - 75db(A)
Controls 4S+B Slider touch control 9S+B Slider touch control 4S+B Slider touch control
Absorption Duct-out: 160 W
Filtering: 160 W
Duct-out: 350 W
 175 W Duct-out: 160 W
Duct-out: 350 W
Controls 9P+B slider touch control 9P+B Touch control direct slider 9P+B slider touch control
Voltage 220-240V / 380-415V 2N / 380-415V 3N 220-240V / 380-415V 2N / 380-415V 3N 220-240V / 380-415V 2N / 380-415V 3N
Power limitation Duct-out: 3,1kW - 4,5kW
Filtering: 3,1kW - 4,5kW
Filtering: 3,1kW - 4,5 kW
 3,1kW - 4,5kW Duct-out: 3,1kW - 4,5kW
Number of bridge zones Duct-out: No
 2 1 (SX)
Front left cooking zone Ø 16 cm - 1,2/1,6 kW OCTA 21x19,1 cm - 2,1/3 kW OCTA 21x19,1 cm - 2,1/3 kW
Right front cooking zone Ø 16 cm - 1,2/1,6 kW OCTA 21x19,1 cm - 2,1/3 kW Ø 16 cm - 1,2/1,4 kW
Rear left cooking zone Ø 21 cm - 1,5/2 kW OCTA 21x19,1 cm - 2,1/3 kW OCTA 21x19,1 cm - 1,65/1,85 kW
Rear right cooking zone Ø 21 cm - 1,5/2 kW OCTA 21x19,1 cm - 2,1/3 kW Ø 20 cm - 2,3/3 kW
